InfineonDatasheet (PDF)

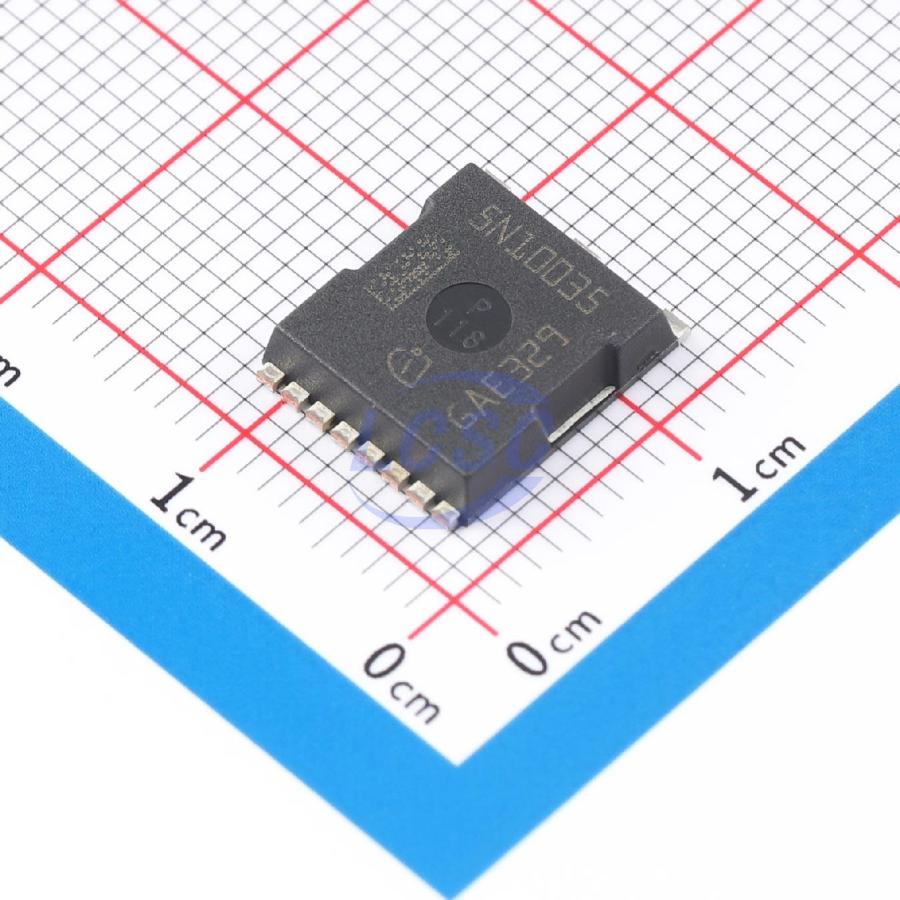

IAUT150N10S5N035
166W 100V 150A 3.5mΩ@10V 1 N-channel N-Channel PG-HSOF-8-1 Single FETs, MOSFETs RoHS
PG-HSOF-8-1ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IAUT150N10S5N035
- Store part #
- C535722
- Package / case
- PG-HSOF-8-1
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C535722
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹816.98 | ₹816.98 |
| 10+ | ₹738.96 | ₹7,389.60 |
| 30+ | ₹692.54 | ₹20,776.20 |
| 100+ | ₹645.47 | ₹64,547.00 |
| 500+ | ₹623.97 | ₹3,11,985.00 |
| 1,000+ | ₹614.08 | ₹6,14,080.00 |
1 × ₹816.98
₹816.98
excl. GST
₹964.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IAUT150N10S5N035
₹816.98 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 780pF
- Ciss-Input Capacitance
- 6.11nF
- Pd - Power Dissipation
- 166W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 150A
- Reverse Transfer Capacitance (Crss)
- 1.014nF
- RDS(on)
- 3.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 87nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.77 g
Overview
Key features
- N-Channel - Enhancement Mode
- AEC Qualified
- MSL1 Rated at Peak Reflow Temperature up to 260°C
- Operating Temperature up to 175°C
- Green Product (RoHS Compliant)
- Ultra-Low On-Resistance Rds(on)
- 100% Avalanche Tested
