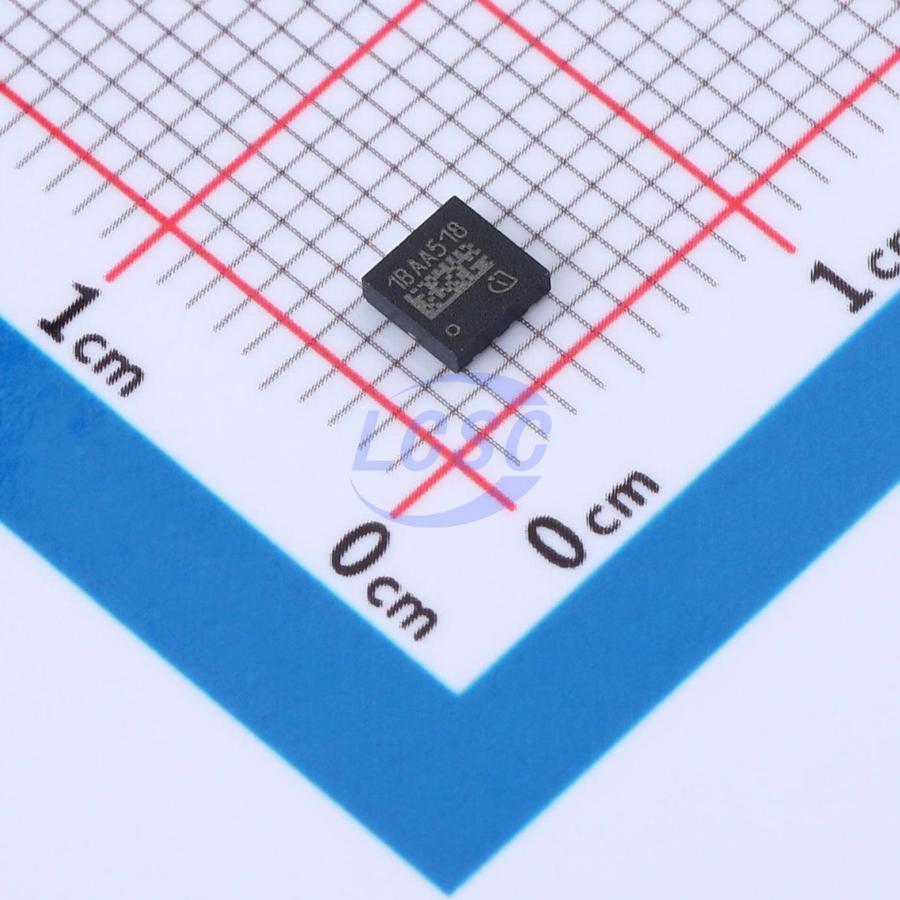

IAUZN10S7L289ATMA1
45W 100V 27A 25.8mΩ@10V 1 N-channel N-Channel SON-8 Single FETs, MOSFETs
SON-8RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IAUZN10S7L289ATMA1
- Store part #
- C48017472
- Package / case
- SON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C48017472
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹204.64 | ₹204.64 |
| 10+ | ₹168.29 | ₹1,682.90 |
| 30+ | ₹148.26 | ₹4,447.80 |
| 100+ | ₹125.83 | ₹12,583.00 |
| 500+ | ₹115.82 | ₹57,910.00 |
| 1,000+ | ₹111.25 | ₹1,11,250.00 |
1 × ₹204.64
₹204.64
excl. GST
₹241.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IAUZN10S7L289ATMA1
₹204.64 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 180pF
- Ciss-Input Capacitance
- 428pF
- Pd - Power Dissipation
- 45W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 27A
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 25.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.9nC
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
Applications
- General automotive applications
Key features
- OptiMOS™ Power MOSFET for automotive applications
- N-channel - Enhancement mode - Logic level
- Extended qualification beyond AEC-Q101
- Enhanced electrical testing
- Robust design
- MSL1 rated at peak reflow temperature up to 260°C
- 175°C operating temperature
- RoHS compliant
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IAUCN10S7L180ATMA1#C43311525Infineon · PG-TDSON-8 | Infineon | PG-TDSON-8 | 201 | ₹171.16 · 201 in stock | View |
 | IAUZ30N10S5L240#C535732Infineon · TSDSON-8FL | Infineon | TSDSON-8FL | 73 | ₹123.87 · 73 in stock | View |
 | ISZ230N10NM6ATMA1#C3279290Infineon · TSDSON-8FL | Infineon | TSDSON-8FL | 90 | ₹187.09 · 90 in stock | View |
 | BSZ096N10LS5#C534695Infineon · TSDSON-8FL | Infineon | TSDSON-8FL | 1,402 | ₹186.33 · 1,402 in stock | View |
 | ISC0802NLSATMA1#C3288904Infineon · TDSON-8 | Infineon | TDSON-8 | 494 | ₹428.73 · 494 in stock | View |
