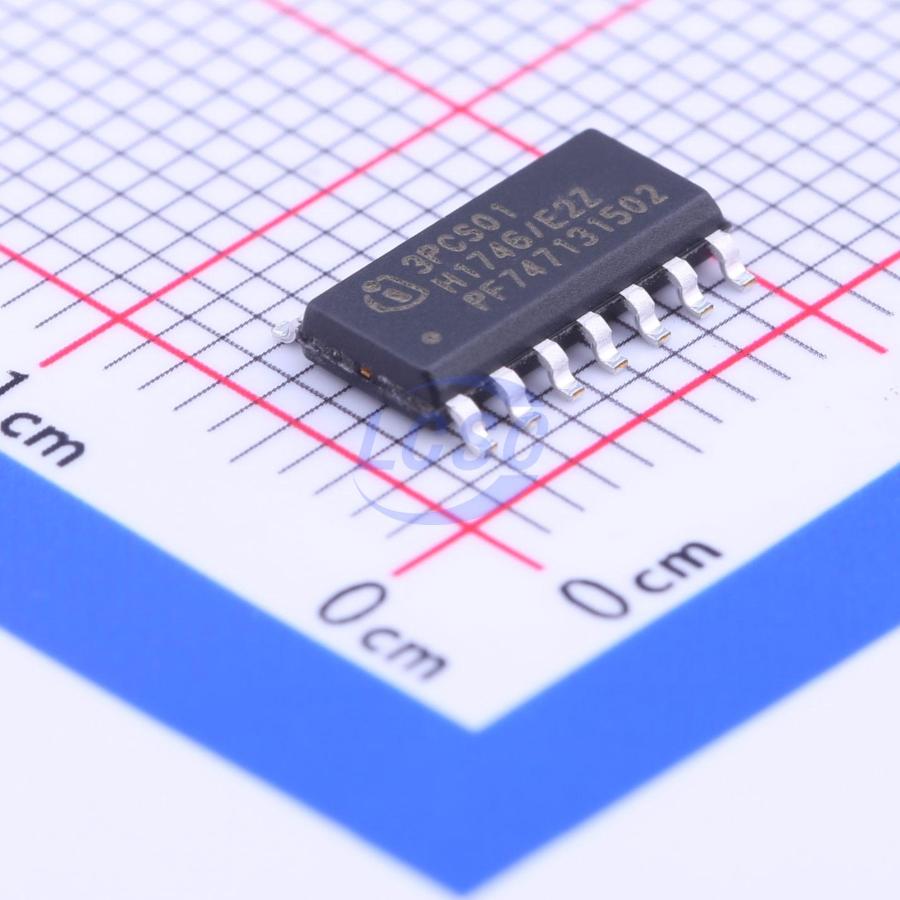

Infineon

ICE3PCS01G

21kHz~100kHz 11.5V~25V SOIC-14 PFC (Power Factor Correction) RoHS

SOIC-14ROHS3 CompliantActive

Standalone Power Factor Correction (PFC) Controller in Continuous Conduction Mode (CCM)

Manufacturer: Infineon
Manufacturer part #: ICE3PCS01G
Store part #: C192050
Package / case: SOIC-14
Category: PFC (Power Factor Correction)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,606 in stock

#C192050

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
1+	₹193.58	₹193.58
10+	₹157.95	₹1,579.50
30+	₹138.40	₹4,152.00
100+	₹116.24	₹11,624.00
500+	₹106.46	₹53,230.00
1,000+	₹102.12	₹1,02,120.00

Quantity (min 1)

1 × ₹193.58

₹193.58

excl. GST

₹228.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

ICE3PCS01G

₹193.58 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Brown-in/Brown-out detection;Adjustable soft-start;Under-voltage lockout;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Frequency - Switching: 21kHz~100kHz
Duty Cycle(Max): 95%
Working Mode: CCM
Operating Temperature: -40℃~+150℃
Voltage - Supply: 11.5V~25V
Topology: Boost

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.219 g

Overview

- Continuous current operation mode PFC - Wide input range of Vcc up to 25V - Programmable boost follower step level according to input line and output power conditions - Enhanced dynamic response without input current distortion - Accurate brown-out protection threshold - External current loop compensation for greater user flexibility - Open loop protection - Second over bulk voltage protection - PFC enable function - Separate signal and power ground pins - Maximum duty cycle of 95% (typical) - The ICE3PCS01G is a 14-pins wide input range controller IC for active power factor correction converters. It is designed for converters in boost topology, and requires few external components. Its power supply is recommended to be provided by an external auxiliary supply which will switch on and off the IC.
