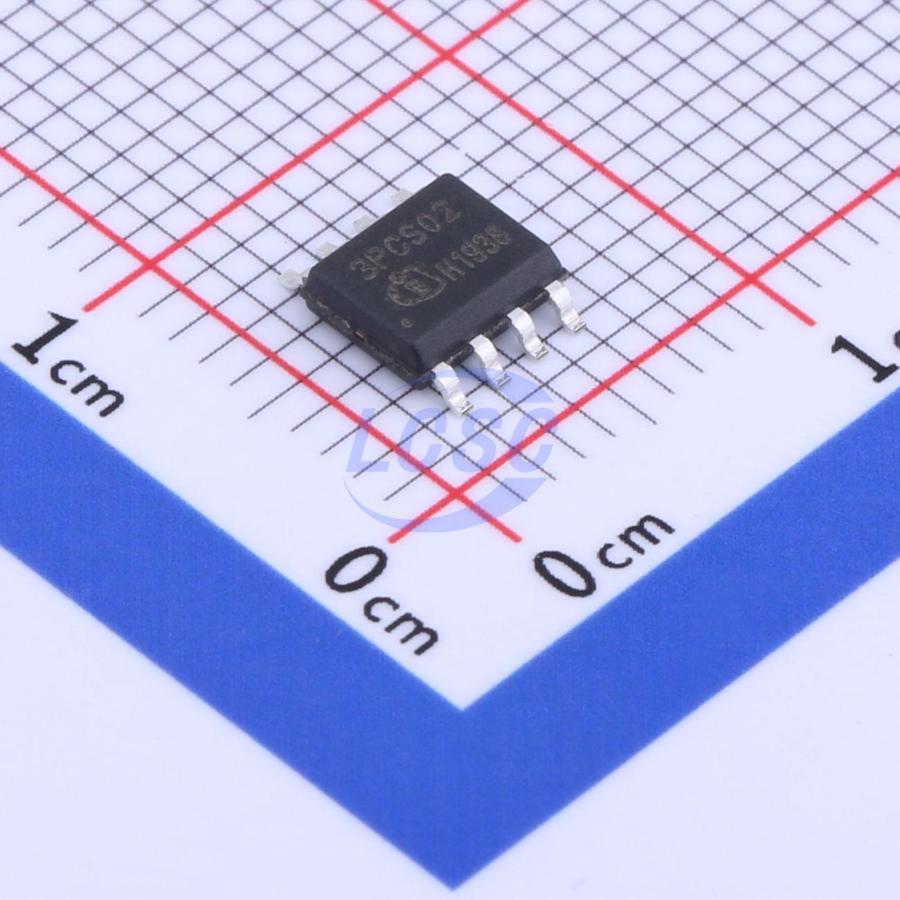

ICE3PCS02G
21kHz~100kHz 12V~26V DSO-8 PFC (Power Factor Correction) RoHS
Standalone Power Factor Correction (PFC) Controller in Continuous Conduction Mode (CCM)
- Manufacturer
- Infineon
- Manufacturer part #
- ICE3PCS02G
- Store part #
- C535800
- Package / case
- DSO-8
- Category
- PFC (Power Factor Correction)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,593 in stock
#C535800
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.23 | ₹155.23 |
| 10+ | ₹128.09 | ₹1,280.90 |
| 30+ | ₹113.12 | ₹3,393.60 |
| 100+ | ₹96.18 | ₹9,618.00 |
| 500+ | ₹88.57 | ₹44,285.00 |
| 1,000+ | ₹85.11 | ₹85,110.00 |
1 × ₹155.23
₹155.23
excl. GST
₹183.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ICE3PCS02G
₹155.23 for 1 + GST
Specifications
- Features
- Adjustable soft-start;Under-voltage lockout;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Frequency - Switching
- 21kHz~100kHz
- Duty Cycle(Max)
- 95%
- Working Mode
- CCM
- Voltage - Supply
- 12V~26V
- Operating Temperature
- -25℃~+125℃
- Topology
- Boost
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.127 g
Overview
Continuous current operation mode PFC Wide input range of Vcc up to 25V Enhanced dynamic response without input current distortion External current loop compensation for greater user flexibility Open loop protection Second over bulk voltage protection Maximum duty cycle of 95% (typical) The ICE3PCS02G is a 8-pins wide input range controller IC for active power factor correction converters. It is designed for converters in boost topology, and requires few external components. Its power supply is recommended to be provided by an external auxiliary supply which will switch on and off the IC.
Key features
- High efficiency over the whole load range
- Lowest count of external components
- Accurate and adjustable switching frequency
- Integrated digital voltage loop compensation
- Fast output dynamic response during load jump
- External synchronization
- Low peak current limitation
- Continuous current operation mode PFC
- Wide input range of Vcc up to 25V
- Enhanced dynamic response without input current distortion
- External current loop compensation for greater user flexibility
- Open loop protection
- Second over bulk voltage protection
- Maximum duty cycle of 95% (typical)
