XBLWDatasheet (PDF)

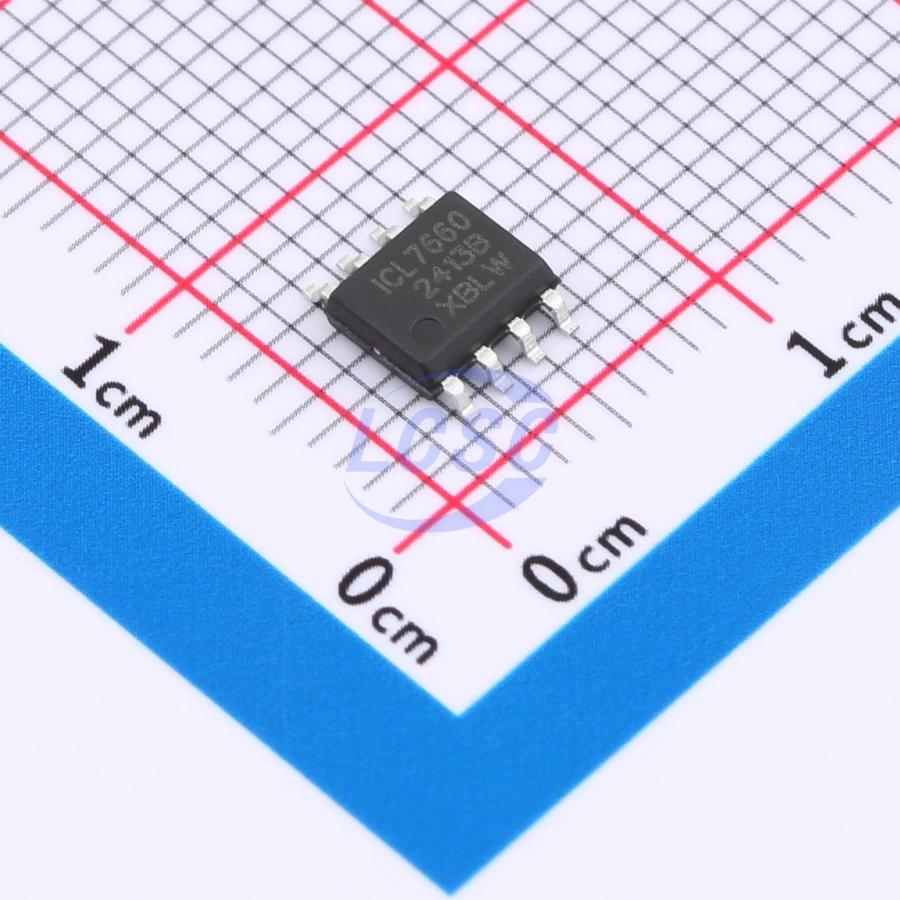

ICL7660DTR(XBLW)
5kHz 10mA SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
Switched-Capacitor Voltage Converters
- Manufacturer
- XBLW
- Manufacturer part #
- ICL7660DTR(XBLW)
- Store part #
- C22387043
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,900 in stock
#C22387043
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.02 | ₹115.10 |
| 50+ | ₹18.09 | ₹904.50 |
| 150+ | ₹15.97 | ₹2,395.50 |
| 500+ | ₹13.34 | ₹6,670.00 |
| 2,500+ | ₹12.17 | ₹30,425.00 |
| 5,000+ | ₹11.47 | ₹57,350.00 |
5 × ₹23.02
₹115.10
excl. GST
₹135.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ICL7660DTR(XBLW)
₹115.10 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Frequency - Switching
- 5kHz
- Function
- Inverted;boost converter
- Features
- Charge pump / inverting topology switching;Low ripple / low noise architecture
- Operating Voltage
- 1.5V~9V
- Output Current
- 10mA
- Energy Efficiency
- 98%
- Quiescent Current
- 65uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
The ICL7660 is monolithic, DC/DC switched - capacitor voltage converters that invert, double, divide, or multiply a positive input voltage. Operation is guaranteed from 1.5V to 9V with no external diode over the full temperature range. They deliver 10mA with a 0.5V output drop. The ICL7660 has a BOOST pin that raises the oscillator frequency above the audio band and reduces external capacitor size requirements. The ICL7660 combine low quiescent current and high efficiency. Oscillator control circuitry and four power MOSFET switches are included on - chip. Application modes include: negative voltage generation, double voltage generation, and input voltage 1/2 partial voltage. The series of products are widely used in data acquisition system, portable instrument and other electronic products.
Applications
- Dual Power Operational Amplifier Power Supply
- Data - Acquisition Systems
- PAD, Handheld Instruments
- As Voltage Conversion, Voltage Divider
- Portable Apparatus
Key features
- 1.5V to 10.0V Operating Supply Voltage Range
- Low Quiescent Current, Typ = 65μA at 5V
- 98% Typical Power - Conversion Efficiency
- Invert, Double, Divide, or Multiply Input Voltages
- BOOST Pin Increases the Oscillation Frequency
- Package: DIP8, SOP8
