ICL7660SCBAZ-TD
Inverted 5kHz 10mA SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
Single-chip DC/DC voltage conversion integrated circuit
- Manufacturer
- TDSEMIC
- Manufacturer part #
- ICL7660SCBAZ-TD
- Store part #
- C42421902
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,830 in stock
#C42421902
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.00 | ₹105.00 |
| 50+ | ₹18.38 | ₹919.00 |
| 150+ | ₹17.24 | ₹2,586.00 |
| 500+ | ₹15.84 | ₹7,920.00 |
| 2,500+ | ₹15.21 | ₹38,025.00 |
| 5,000+ | ₹14.84 | ₹74,200.00 |
5 × ₹21.00
₹105.00
excl. GST
₹123.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

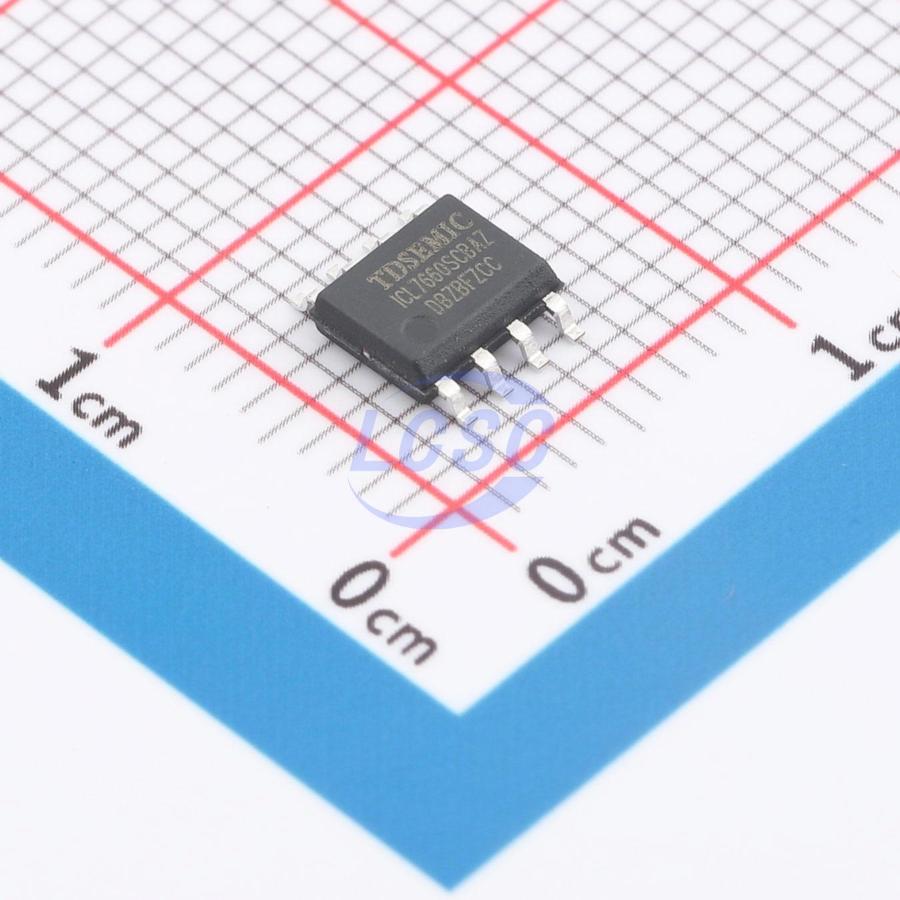

ICL7660SCBAZ-TD
₹105.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+65℃
- Function
- Inverted
- Frequency - Switching
- 5kHz
- Features
- Charge pump / inverting topology switching;Low ripple / low noise architecture
- Operating Voltage
- 1.5V~5V
- Output Current
- 10mA
- Energy Efficiency
- 98%
- Quiescent Current
- 180uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.189 g
Overview
ICL7660SCBAZ is a monolithic DC/DC voltage converter IC fabricated using CMOS technology. The device supports voltage inversion, voltage doubling, voltage splitting, and multi-voltage output. Operating voltage range is 1.5V to 5V, with no external diodes required across the full temperature range. Provides 10mA output current per 0.5V voltage drop. The BOOST pin can raise the internal oscillator frequency above the audio band, reducing output ripple and lowering external capacitance requirements. The IC integrates low quiescent current and high conversion efficiency, with a built-in oscillator control circuit and four power MOSFET switches. Typical applications include negative voltage generation, voltage doubling, and ½ input voltage division.
Applications
- Generate -5V from +5V logic supply
- Personal communication devices
- LCD display module power supply
- Op-amp dual symmetric supply generation
- Handheld instruments
Key features
- Compact package
- Operating voltage range: 1.5V~5V
- Typical power conversion efficiency up to 98%
- Supports voltage inversion, voltage doubling, voltage dividing, and multiple voltage output
- BOOST pin provided for increasing oscillation frequency
- No-load current: 180μA maximum at 5V
- No external diode required in high-voltage operating mode
