InfineonDatasheet (PDF)

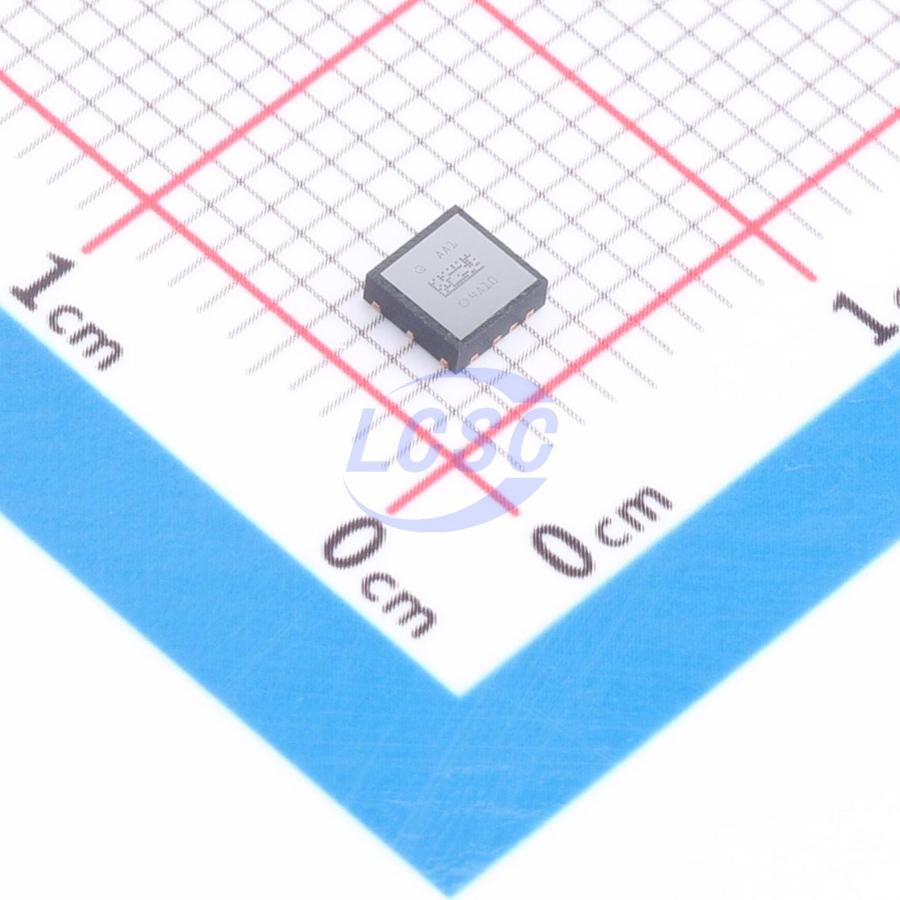

IGB070S10S1XTMA1
100V 38A 23W 5mΩ 1 N-channel N-Channel PG-TSON-4-2 Single FETs, MOSFETs RoHS
PG-TSON-4-2ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IGB070S10S1XTMA1
- Store part #
- C44179579
- Package / case
- PG-TSON-4-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
118 in stock
#C44179579
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹450.55 | ₹450.55 |
| 10+ | ₹388.05 | ₹3,880.50 |
| 30+ | ₹350.94 | ₹10,528.20 |
| 100+ | ₹313.39 | ₹31,339.00 |
| 500+ | ₹296.03 | ₹1,48,015.00 |
| 1,000+ | ₹288.22 | ₹2,88,220.00 |
1 × ₹450.55
₹450.55
excl. GST
₹531.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IGB070S10S1XTMA1
₹450.55 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -40℃~+150℃
- Current - Continuous Drain(Id)
- 38A
- Output Capacitance(Coss)
- 310pF
- Ciss-Input Capacitance
- 650pF
- Pd - Power Dissipation
- 23W
- Technology
- E-mode
- Reverse Transfer Capacitance (Crss)
- 3.6pF
- RDS(on)
- 5mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.1nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 2.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 10.88 g
Overview
Applications
- Telecom & data center 48V IBC
- Synchronous rectification for AC-DC and DC-DC converters
- Robotics & drones
- Battery-powered tools
- 48V servo drives
Key features
- Ultra-fast switching speed and high efficiency
- Space-saving, highly robust package
- No reverse recovery charge
- Ultra-low gate charge and output charge
- Exposed die for superior top-side heat dissipation
- Moisture sensitivity level MSL1
- Industrial-grade 3×3 package
