InfineonDatasheet (PDF)

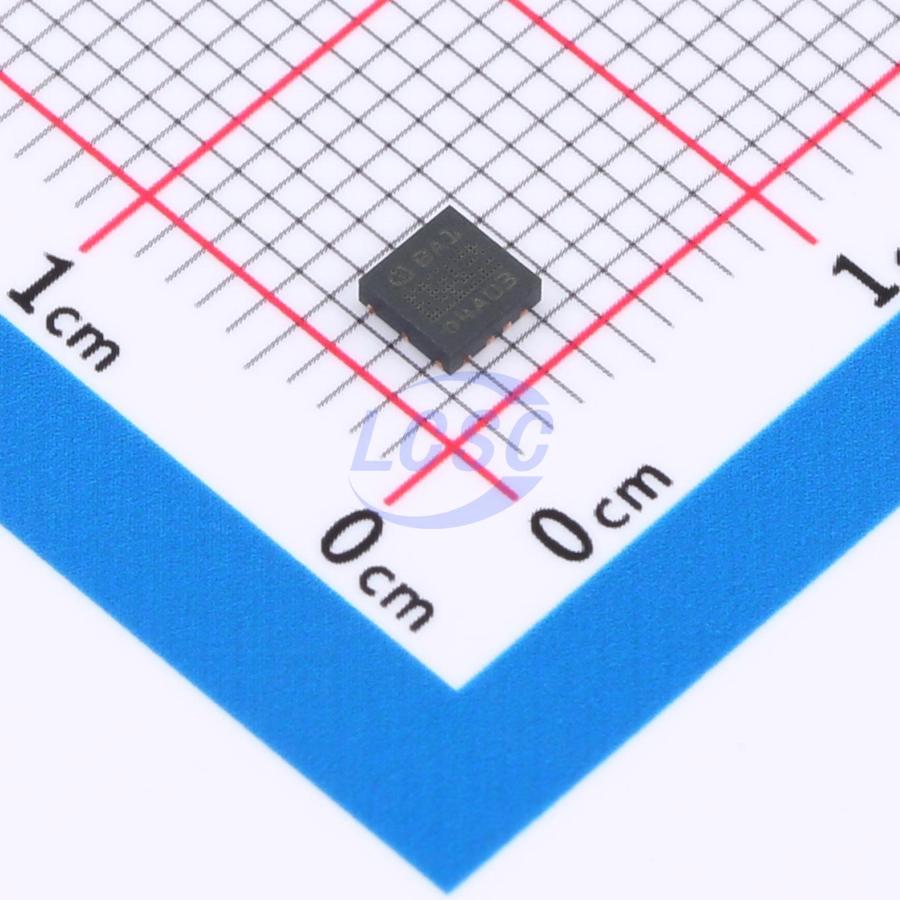

IGB110S101XTMA1
100V 23A 15W 9.4mΩ 1 N-channel N-Channel VSON-4 Single FETs, MOSFETs RoHS
VSON-4ROHS CompliantActive
CoolGaN Transistor 100V G3
- Manufacturer
- Infineon
- Manufacturer part #
- IGB110S101XTMA1
- Store part #
- C44179837
- Package / case
- VSON-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
68 in stock
#C44179837
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.94 | ₹220.94 |
| 10+ | ₹186.25 | ₹1,862.50 |
| 30+ | ₹164.57 | ₹4,937.10 |
| 100+ | ₹142.45 | ₹14,245.00 |
| 500+ | ₹132.49 | ₹66,245.00 |
| 1,000+ | ₹128.15 | ₹1,28,150.00 |
1 × ₹220.94
₹220.94
excl. GST
₹260.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IGB110S101XTMA1
₹220.94 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 23A
- Output Capacitance(Coss)
- 140pF
- Ciss-Input Capacitance
- 300pF
- Pd - Power Dissipation
- 15W
- Technology
- E-mode
- Reverse Transfer Capacitance (Crss)
- 2.3pF
- RDS(on)
- 9.4mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.4nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.142 g
Overview
Applications
- Telecom & Datacenter 48V IBC
- Sync Rectification for AC‑DC and DC‑DC converters
- Robotics and drones
- Battery powered tools
- 48V servo drive
- e‑Mobility, UAVs
- Class D Audio
- Solar & Energy storage systems
- Point of Load Converters
Key features
- Ultra fast switching and high efficiency
- Space saving and highly robust package
- No reverse recovery charge
- Ultra low gate charge and output charge
- Moisture rating MSL1
- Industrial grade 3x3 package
