InfineonDatasheet (PDF)

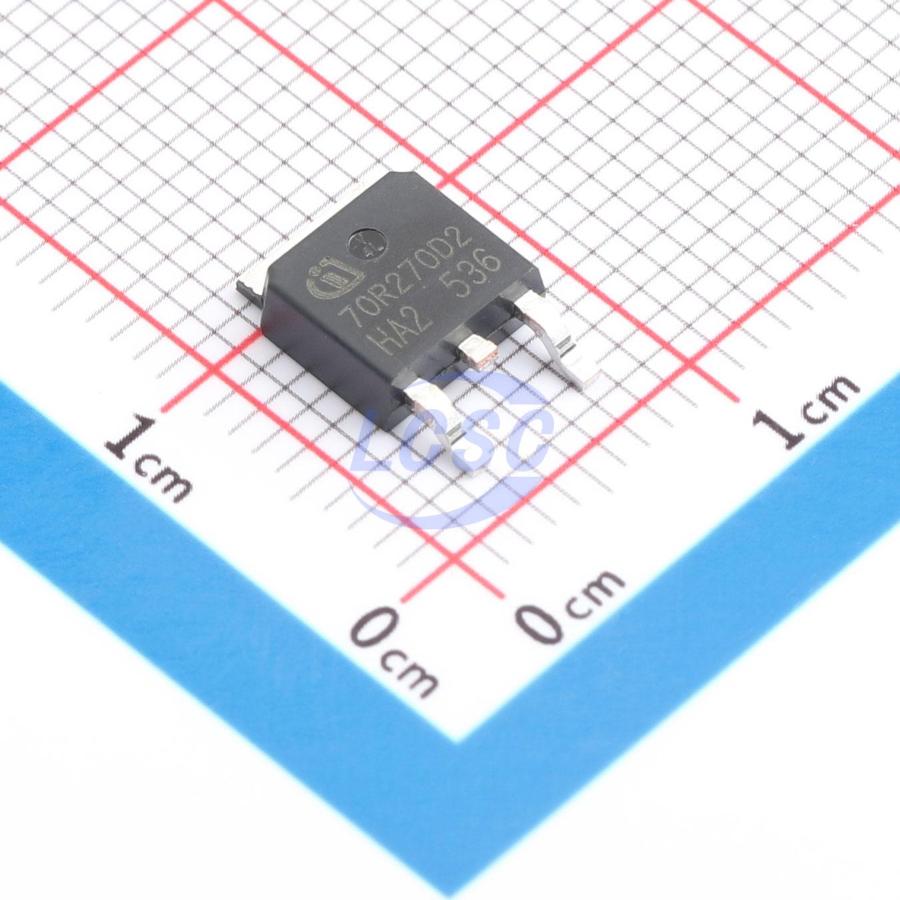

IGD70R270D2SAUMA1
700V 5.8A 18W 270mΩ 1 N-channel N-Channel TO-252-3 Single FETs, MOSFETs
TO-252-3RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IGD70R270D2SAUMA1
- Store part #
- C48008577
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C48008577
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.76 | ₹156.76 |
| 10+ | ₹153.30 | ₹1,533.00 |
| 30+ | ₹150.91 | ₹4,527.30 |
| 100+ | ₹148.74 | ₹14,874.00 |
1 × ₹156.76
₹156.76
excl. GST
₹184.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IGD70R270D2SAUMA1
₹156.76 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 700V
- Current - Continuous Drain(Id)
- 5.8A
- Output Capacitance(Coss)
- 12pF
- Ciss-Input Capacitance
- 74pF
- Pd - Power Dissipation
- 18W
- Technology
- E-mode
- Reverse Transfer Capacitance (Crss)
- 0.17pF
- RDS(on)
- 270mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Infineon's CoolGaN™ is a high-efficiency gallium nitride (GaN) transistor designed for 700 V power conversion. It enables higher power density, supports reduced system BOM cost, and facilitates miniaturized form factors. Manufactured using 200 mm (8-inch) wafer technology on a fully automated production line, it features tight manufacturing tolerances and the highest product quality.
Applications
- Zero-current switching consumer QR applications such as chargers, adapters, TV power supplies, and household appliances (not recommended for hard-switching topologies)
Key features
- Enhancement-mode transistor
- Ultra-fast switching
- No reverse recovery charge
- Capable of reverse conduction
- Low gate and output charge
- Superior commutation ruggedness
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SGT350R70GTK#C52056861ST · TO-252 | ST | TO-252 | 14 | ₹442.74 · 14 in stock | View |
 | DK350G70#C53207020Shenzhen DongKe Semicon · TO-252 | Shenzhen DongKe Semicon | TO-252 | 180 | ₹88.77 · 180 in stock | View |
 | HINN700TK190B#C49206785HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 1,598 | ₹116.44 · 1,598 in stock | View |
 | HINN700TK240B#C49206786HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 1,568 | ₹119.49 · 1,568 in stock | View |
| IGD70R200D2SAUMA1#C50759987Infineon · TO-252-3 | Infineon | TO-252-3 | On request | ₹178.01 · 0 in stock | View | |
