InfineonDatasheet (PDF)

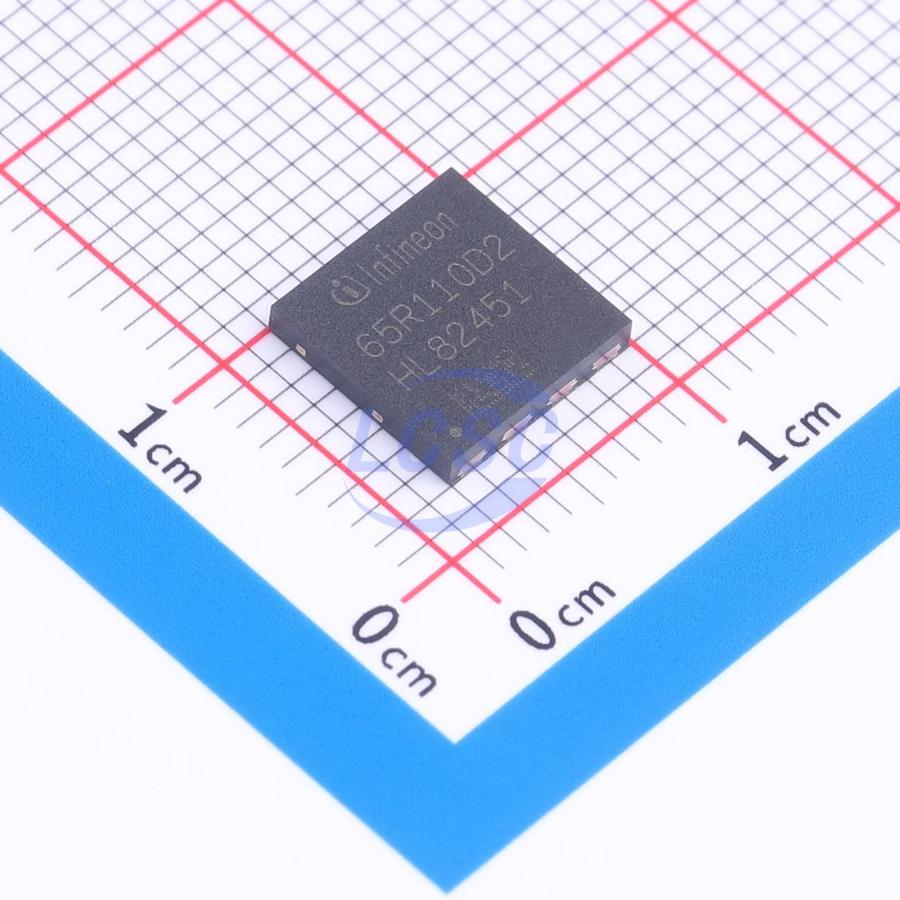

IGLD65R110D2AUMA1
650V 14A 51W 110mΩ 1 N-channel N-Channel SON-8(7x7) Single FETs, MOSFETs RoHS
SON-8(7x7)ROHS CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IGLD65R110D2AUMA1
- Store part #
- C44179918
- Package / case
- SON-8(7x7)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C44179918
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹646.03 | ₹646.03 |
| 10+ | ₹553.03 | ₹5,530.30 |
| 30+ | ₹497.62 | ₹14,928.60 |
| 100+ | ₹441.55 | ₹44,155.00 |
| 500+ | ₹415.91 | ₹2,07,955.00 |
| 1,000+ | ₹404.18 | ₹4,04,180.00 |
1 × ₹646.03
₹646.03
excl. GST
₹762.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IGLD65R110D2AUMA1
₹646.03 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 14A
- Output Capacitance(Coss)
- 29pF
- Ciss-Input Capacitance
- 170pF
- Pd - Power Dissipation
- 51W
- Technology
- E-mode
- Reverse Transfer Capacitance (Crss)
- 0.39pF
- RDS(on)
- 110mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.4nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.484 g
Overview
Infineon's CoolGaN is a high-efficiency GaN transistor designed for 650V power conversion. It enables higher power density, supports reduced system BOM cost, and contributes to miniaturized form factors. The product is manufactured using 200mm wafer technology and a fully automated production line, featuring tight manufacturing tolerances and the highest product quality. This makes it suitable for a wide range of applications, from consumer electronics to industrial use.
Applications
- Industrial
- Telecom
- Data Center SMPS
- Charger
- Adapter
Key features
- Enhancement-mode transistor
- Ultra-fast switching speed
- Zero reverse recovery charge
- Reverse conduction capability
- Low gate charge and output charge
- Superior commutation robustness
- 2 kV HBM ESD compliant
