InfineonDatasheet (PDF)

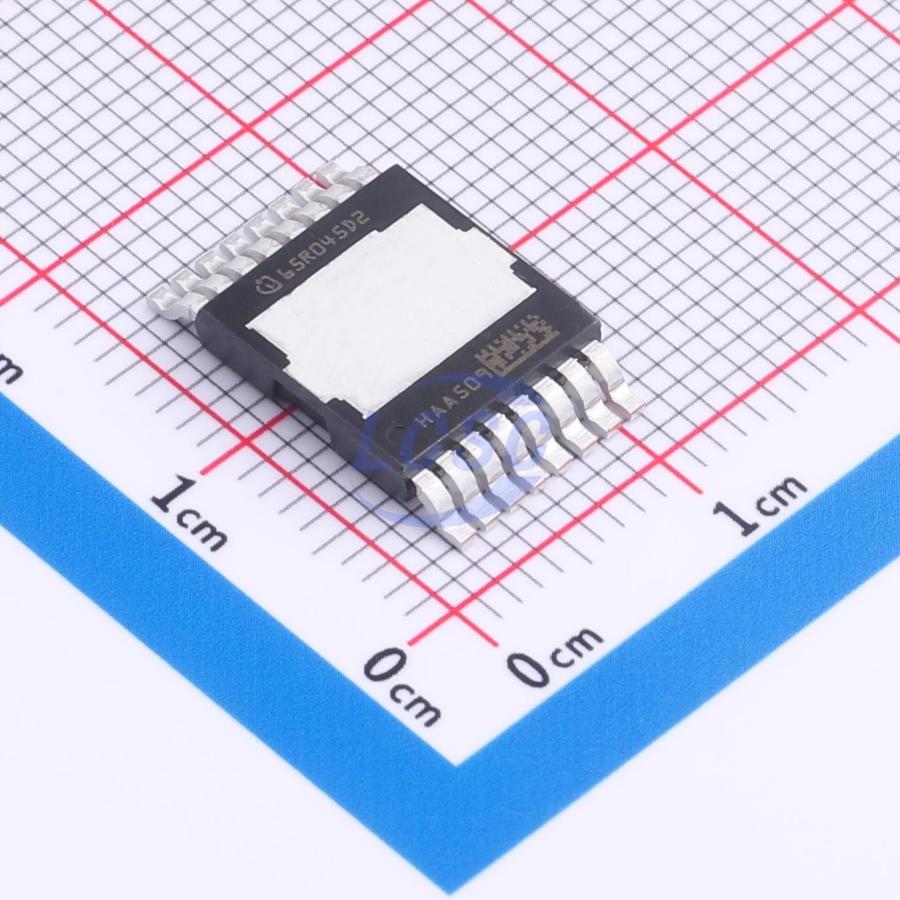

IGLT65R045D2ATMA1
650V 38A 124W 45mΩ 1 N-channel N-Channel HDSOP-16 Single FETs, MOSFETs RoHS
HDSOP-16ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IGLT65R045D2ATMA1
- Store part #
- C44179921
- Package / case
- HDSOP-16
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C44179921
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,404.83 | ₹1,404.83 |
| 10+ | ₹1,216.68 | ₹12,166.80 |
| 30+ | ₹1,102.28 | ₹33,068.40 |
| 100+ | ₹1,006.15 | ₹1,00,615.00 |
1 × ₹1,404.83
₹1,404.83
excl. GST
₹1,657.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
IGLT65R045D2ATMA1
₹1,404.83 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 72pF
- Current - Continuous Drain(Id)
- 38A
- Ciss-Input Capacitance
- 430pF
- Pd - Power Dissipation
- 124W
- Technology
- E-mode
- Reverse Transfer Capacitance (Crss)
- 0.98pF
- RDS(on)
- 45mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.5 g
Overview
Infineon's CoolGaN is a high-efficiency 650V gallium nitride (GaN) transistor designed for power conversion. It enables higher power density, supports reduced system BOM cost, and facilitates miniaturized form factors. The transistor is manufactured using 200mm (8-inch) wafer technology on a fully automated production line, featuring tight manufacturing tolerances and the highest product quality. This makes it suitable for a wide range of applications, from consumer electronics to industrial use.
Applications
- Industrial, telecom, and data center switch-mode power supplies based on half-bridge hard-switching and soft-switching topologies (e.g., totem-pole PFC and high-frequency LLC), as well as chargers and adapters.
Key features
- Enhancement-mode transistor
- Ultra-fast switching
- No reverse recovery charge
- Capable of reverse conduction
- Low gate and output charge
- Superior commutation ruggedness
- 2kV HBM ESD rating
