InfineonDatasheet (PDF)

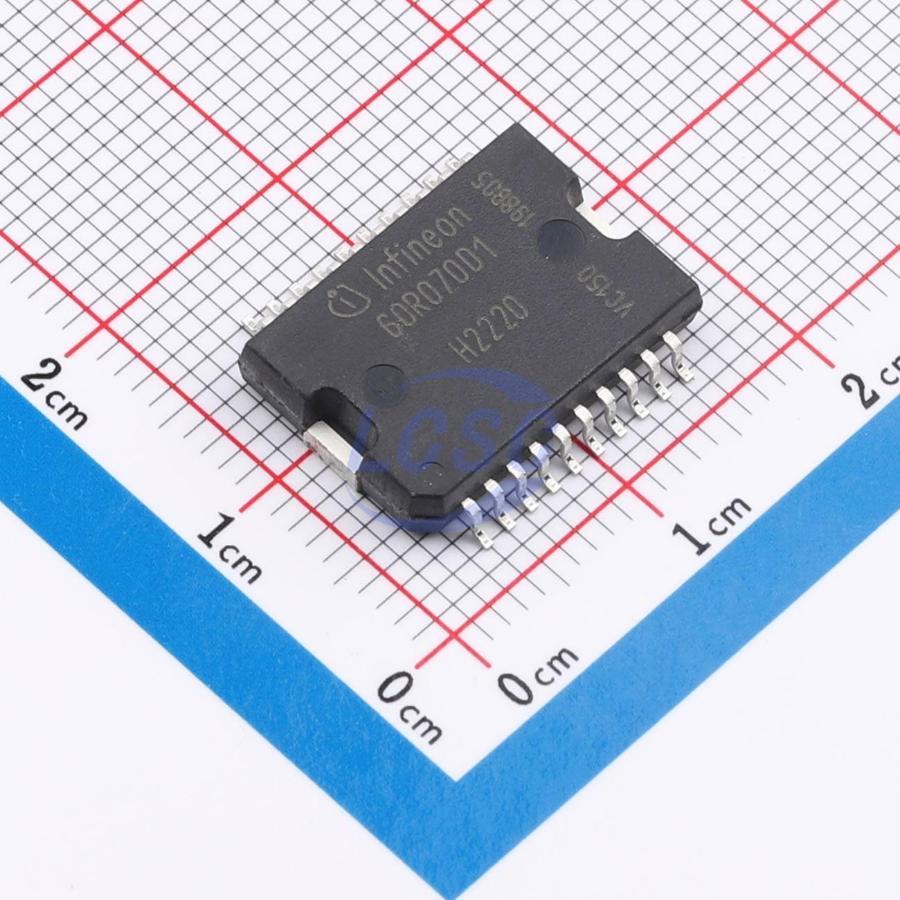

IGO60R070D1
125W 600V 31A 70mΩ@10V 1 N-channel N-Channel DSO-20 Single FETs, MOSFETs
DSO-20RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IGO60R070D1
- Store part #
- C536070
- Package / case
- DSO-20
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C536070
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹4,004.51 | ₹4,004.51 |
| 10+ | ₹3,929.28 | ₹39,292.80 |
1 × ₹4,004.51
₹4,004.51
excl. GST
₹4,725.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IGO60R070D1
₹4,004.51 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 72pF
- Ciss-Input Capacitance
- 380pF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 31A
- Reverse Transfer Capacitance (Crss)
- 0.3pF
- RDS(on)
- 70mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.8nC@400V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.66 g
Overview
Applications
- Industrial, telecom, and data center switching power supplies based on half-bridge topology (hard-switching and soft-switching half-bridge topologies, such as totem-pole PFC and high-frequency LLC)
Key features
- Enhancement-mode transistor – normally-on switch
- Ultra-fast switching
- No reverse recovery charge
- Reverse conduction capability
- Low gate charge, low output charge
- Superior commutation ruggedness
- JEDEC compliant (JESD47 and JESD22) for industrial applications
