InfineonDatasheet (PDF)

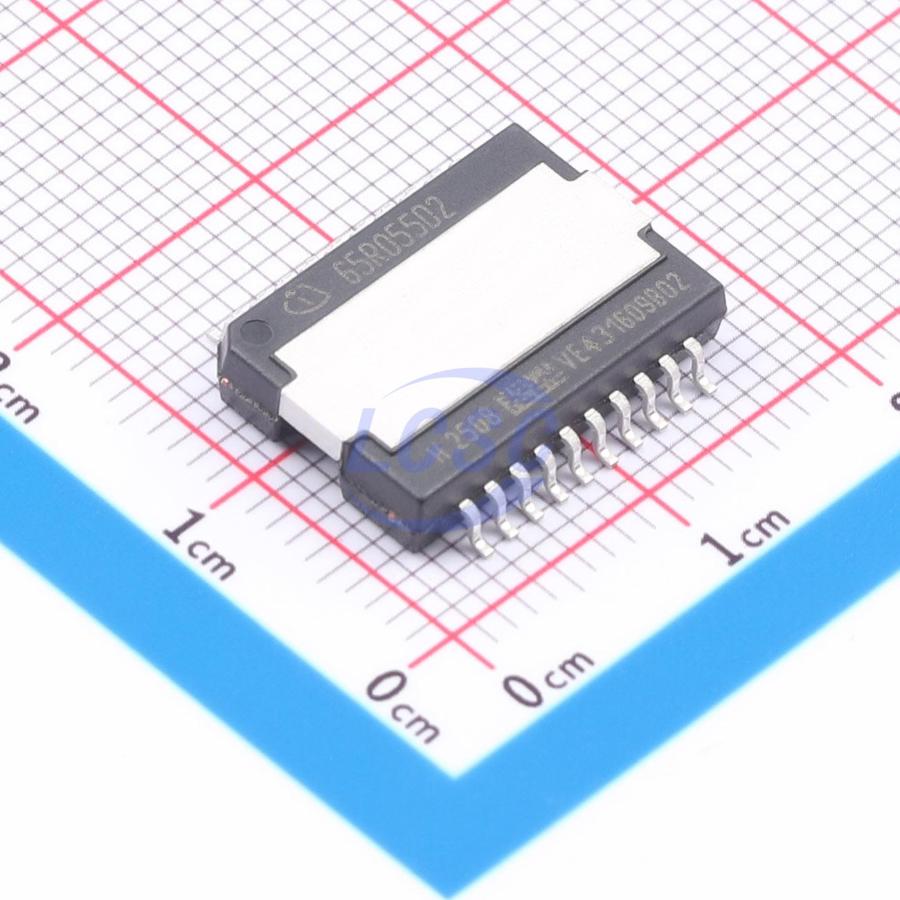

IGOT65R055D2AUMA1
650V 28A 89W 55mΩ 1 N-channel N-Channel DSO-20 Single FETs, MOSFETs
DSO-20RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IGOT65R055D2AUMA1
- Store part #
- C42669673
- Package / case
- DSO-20
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C42669673
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹661.88 | ₹661.88 |
| 10+ | ₹645.33 | ₹6,453.30 |
| 30+ | ₹634.38 | ₹19,031.40 |
| 100+ | ₹623.41 | ₹62,341.00 |
1 × ₹661.88
₹661.88
excl. GST
₹781.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IGOT65R055D2AUMA1
₹661.88 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 57pF
- Current - Continuous Drain(Id)
- 28A
- Ciss-Input Capacitance
- 340pF
- Technology
- E-mode
- Pd - Power Dissipation
- 89W
- Reverse Transfer Capacitance (Crss)
- 0.77pF
- RDS(on)
- 55mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.7nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.542 g
Overview
Infineon's CoolGaN™ is a high-efficiency 650V GaN transistor designed for power conversion. It enables higher power density, helps reduce system BOM costs, and supports miniaturized form factors. Manufactured using 200mm (8-inch) wafer technology with fully automated production lines, it features tight manufacturing tolerances and the highest product quality. This makes it suitable for a wide range of applications, from consumer electronics to industrial use.
Applications
- Industrial, telecom, and data center switched-mode power supplies based on half-bridge hard-switching and soft-switching topologies (such as totem-pole PFC and high-frequency LLC), as well as chargers and adapters.
Key features
- Enhancement-mode transistor
- Ultra-fast switching
- No reverse recovery charge
- Capable of reverse conduction
- Low gate and output charge
- Excellent commutation ruggedness
- 2kV HBM ESD rating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IGOT65R035D2AUMA1#C44179928Infineon · DSO-20 | Infineon | DSO-20 | 3 | ₹1,554.38 · 3 in stock | View |
