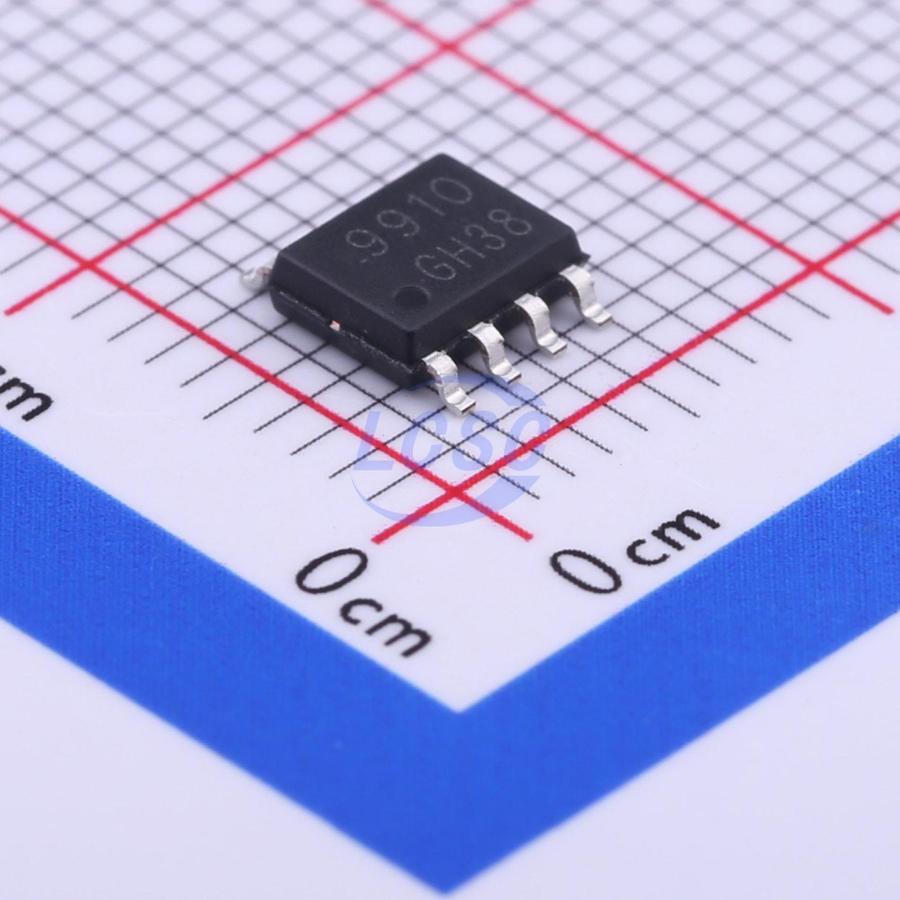

IL9910DT-B IKSEMICON
IKSEMICON

IL9910DT-B

20kHz~120kHz Buck 1 DC-DC 1A 8V~450V SOIC-8 LED Drivers ICs

SOIC-8RoHSActive

Universal High-Voltage LED Driver

Manufacturer
IKSEMICON
Manufacturer part #
IL9910DT-B
Store part #
C412470
Package / case
SOIC-8
Category
LED Drivers ICs
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,945 in stock

#C412470

Stock & price checked 5 days ago

QuantityUnit pricePack price
1+₹79.71₹79.71
10+₹64.99₹649.90
30+₹57.63₹1,728.90
100+₹50.45₹5,045.00
500+₹45.96₹22,980.00
1,000+₹43.80₹43,800.00

1 × ₹79.71

₹79.71

excl. GST

₹94.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 2,500 per reel

IL9910DT-B

₹79.71 for 1 + GST

Specifications

Features
LED open-circuit protection
Frequency - Switching
20kHz~120kHz
Switch Tube (Built-In/External)
External
Operating temperature
-40℃~+85℃
Topology
Buck
Number of Channels
1
Type
DC-DC
Output Current
1A
Voltage - Input(DC)
8V~450V

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
2,500 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.201 g

Overview

The IL9910 is a PWM high-efficiency LED driver control IC. The IC is purposed for control of LED lighting as source of constant current

Applications

  • DC/DC or AC/DC LED Driver application
  • RGB Backlighting LED Driver
  • Back Lighting or Flat Panel Display
  • General purpose constant current source
  • Signage and Decorative LED Lighting
  • Automotive
  • Chargers

Key features

  • 8V to 450V input range
  • Maximum external consumption current on VDD pin IDD(ext) 1 mA
  • Operating temperature range -40°C~+85°C
  • applications from a few mA to more than 1A
  • Output Brightness control for LED string from one to hundreds of diodes
  • PWM Low-Frequency LED Dimming
