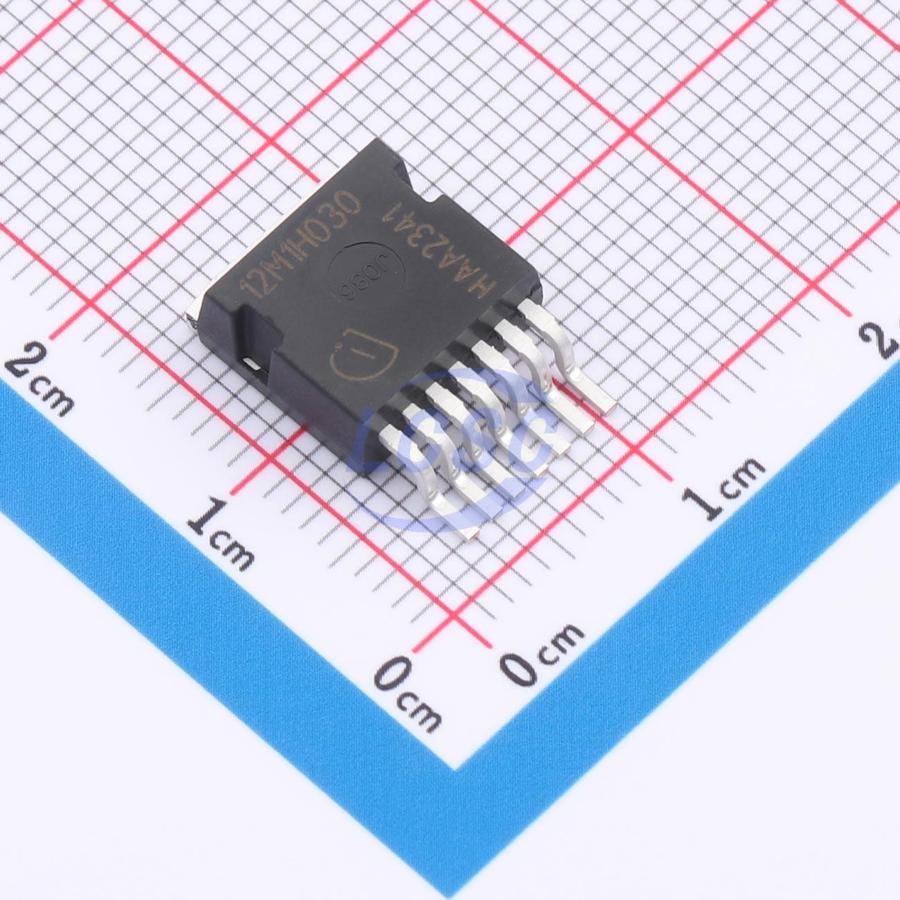

IMBG120R030M1HXTMA1
N-Channel 1.2kV 56A 300W Surface Mount TO-263-7-12
TO-263-7-12ROHS3 CompliantActive
SICFET N-CH 1.2kV 56A TO-263-7-12
- Manufacturer
- Infineon
- Manufacturer part #
- IMBG120R030M1HXTMA1
- Store part #
- C3289294
- Package / case
- TO-263-7-12
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C3289294
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,814.31 | ₹1,814.31 |
| 10+ | ₹1,725.85 | ₹17,258.50 |
| 30+ | ₹1,572.56 | ₹47,176.80 |
| 100+ | ₹1,439.00 | ₹1,43,900.00 |
1 × ₹1,814.31
₹1,814.31
excl. GST
₹2,140.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IMBG120R030M1HXTMA1
₹1,814.31 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 56A
- Ciss-Input Capacitance
- 2.29nF
- Pd - Power Dissipation
- 300W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 30mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC
- Gate Threshold Voltage (Vgs(th))
- 5.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.475 g
Overview
Applications
- Drives
- Infrastructure – Charger
- Energy generation - Solar string inverter and solar optimizer
- Industrial power supplies - Industrial UPS
Key features
- Very low switching losses
- Short circuit withstand time 3 μs
- Fully controllable dV/dt
- Benchmark gate threshold voltage, VGS(th)=4.5V
- Robust against parasitic turn on, 0V turn-off gate voltage can be applied
- Robust body diode for hard commutation
- .XT interconnection technology for best-in-class thermal performance
- Package creepage and clearance distance >6.1mm
- Sense pin for optimized switching performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AIMBG120R030M1XTMA1#C22408468Infineon · TO-263-7 | Infineon | TO-263-7 | 2 | ₹2,515.06 · 2 in stock | View |
| IMBG120R017M2HXTMA1#C24177597Infineon · TO-263-7 | Infineon | TO-263-7 | 1 | ₹2,956.27 · 1 in stock | View | |
 | S2M0025120J#C18212967SMC · TO-263-7 | SMC | TO-263-7 | 4 | ₹3,160.38 · 4 in stock | View |
 | SG2M040120JJ#C42456095Sichainsemi · TO-263-7L | Sichainsemi | TO-263-7L | 772 | ₹441.00 · 772 in stock | View |
 | SG2M027120JJ#C52109939Sichainsemi · TO-263-7L | Sichainsemi | TO-263-7L | 37 | ₹724.59 · 37 in stock | View |
