InfineonDatasheet (PDF)

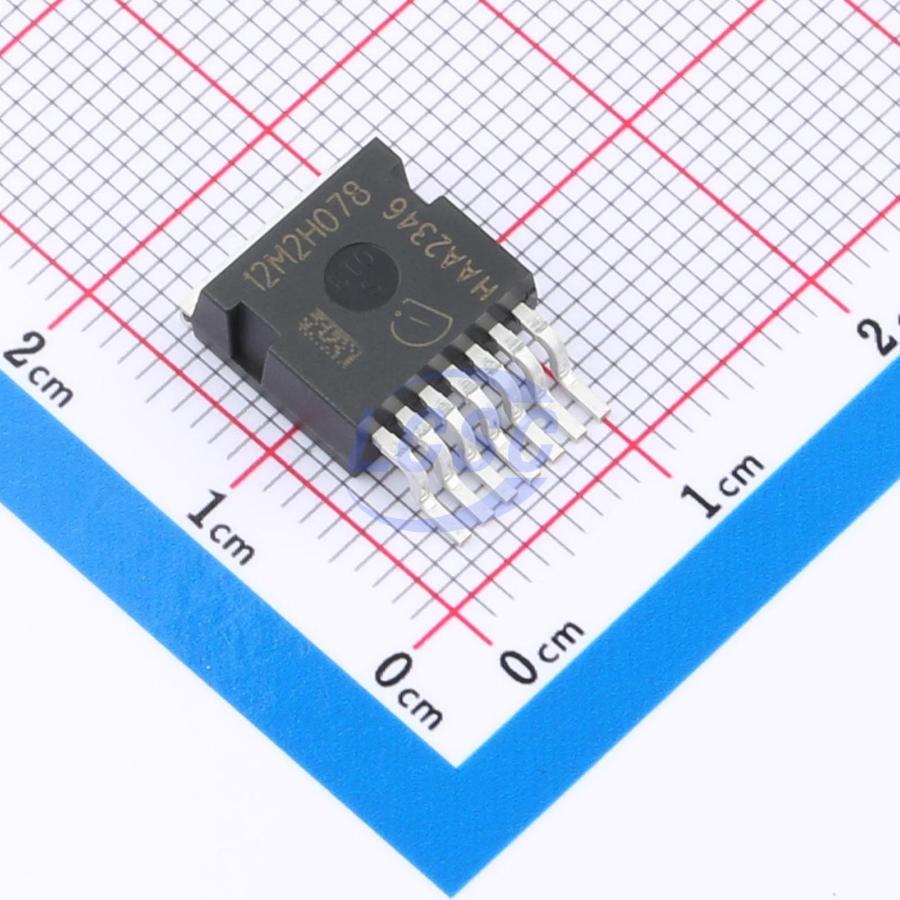

IMBG120R078M2HXTMA1
1.2kV 29A 158W 78.1mΩ 1 N-channel N-Channel TO-263-7 Single FETs, MOSFETs RoHS
TO-263-7ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IMBG120R078M2HXTMA1
- Store part #
- C22417582
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C22417582
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,137.90 | ₹1,137.90 |
| 10+ | ₹970.01 | ₹9,700.10 |
| 30+ | ₹867.70 | ₹26,031.00 |
| 100+ | ₹781.91 | ₹78,191.00 |
1 × ₹1,137.90
₹1,137.90
excl. GST
₹1,342.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IMBG120R078M2HXTMA1
₹1,137.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Current - Continuous Drain(Id)
- 29A
- Output Capacitance(Coss)
- 28pF
- Ciss-Input Capacitance
- 10.7nF
- Pd - Power Dissipation
- 158W
- Reverse Transfer Capacitance (Crss)
- 2.4pF
- RDS(on)
- 78.1mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20.6nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 4.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.52 g
Overview
Applications
- EV charging
- Online UPS/Industrial UPS
- String inverter
- General-purpose drive
Key features
- V_DSS = 1200 V, T_vj = 25°C
- I_DDC = 21 A, T_C = 100°C
- R_DS(on) = 78.1 mΩ, V_GS = 18 V, T_vj = 25°C
- Ultra-low switching losses
- Overload operating temperature up to T_vj = 200°C
- Short-circuit withstand time 2 μs
- Nominal gate threshold voltage, V_GS(th) = 4.2 V
- High robustness against parasitic turn-on, 0 V turn-off gate voltage applicable
- Rugged body diode for hard commutation
- Enhanced thermal performance with .XT interconnection technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTBG070N120M3S#C22363411onsemi · D2PAK-7L | onsemi | D2PAK-7L | 46 | ₹2,116.83 · 46 in stock | View |
 | AIMBG120R080M1XTMA1#C7072054Infineon · TO-263-7 | Infineon | TO-263-7 | 3 | ₹1,108.79 · 3 in stock | View |
 | BCBF120N80M1#C51346560Bestirpower · TO-263-7L | Bestirpower | TO-263-7L | 45 | ₹295.31 · 45 in stock | View |
 | IMBG120R090M1HXTMA1-HXY#C45896858HXY MOSFET · TO-263-7L | HXY MOSFET | TO-263-7L | 39 | ₹746.07 · 39 in stock | View |
 | S1M075120J2#C22363611Sichainsemi · TO-263-7L | Sichainsemi | TO-263-7L | 454 | ₹410.50 · 454 in stock | View |
