InfineonDatasheet (PDF)

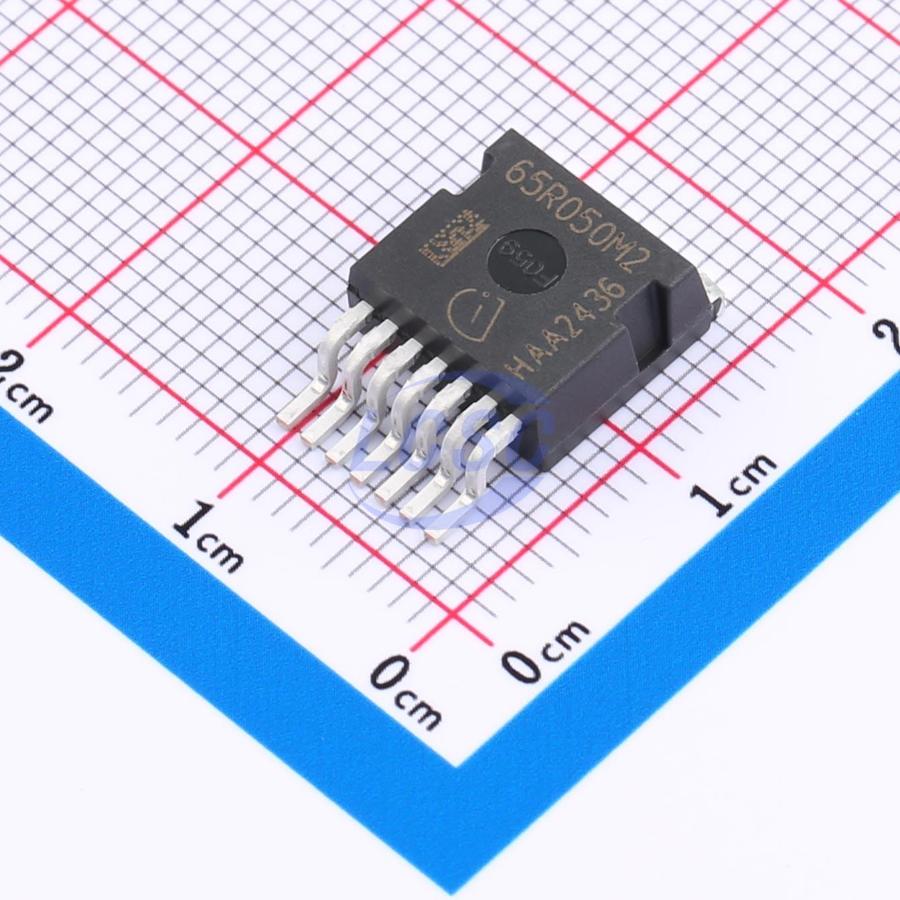

IMBG65R050M2HXTMA1
650V 41A 172W TO-263-7
TO-263-7ROHS3 CompliantActive
SICFET 650V 41A TO-263-7
- Manufacturer
- Infineon
- Manufacturer part #
- IMBG65R050M2HXTMA1
- Store part #
- C27031194
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C27031194
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,079.45 | ₹1,079.45 |
| 10+ | ₹918.78 | ₹9,187.80 |
| 30+ | ₹820.74 | ₹24,622.20 |
| 100+ | ₹738.76 | ₹73,876.00 |
1 × ₹1,079.45
₹1,079.45
excl. GST
₹1,273.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IMBG65R050M2HXTMA1
₹1,079.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 59pF
- Current - Continuous Drain(Id)
- 41A
- Ciss-Input Capacitance
- 790pF
- Pd - Power Dissipation
- 172W
- Reverse Transfer Capacitance (Crss)
- 4.7pF
- RDS(on)
- 62mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 5.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.99 g
Overview
Built on Infineon's robust 2nd generation Silicon Carbide trench technology: the 650 V CoolSiC MOSFET delivers unparalleled performance, superior reliability, and great ease of use. It enables cost effective, highly efficient, and simplified designs to fulfill the ever-growing system and market needs.
Applications
- SMPS
- Solar PV inverters
- Energy storage and battery formation
- UPS
- EV charging infrastructure
- Motor drives
Key features
- Ultra-low switching losses
- Benchmark gate threshold voltage, VGS(th)=4.5 V
- Robust against parasitic turn-on even with 0 V turn-off gate voltage
- Flexible driving voltage and compatible with bipolar driving scheme
- Robust body diode operation under hard commutation events
- XT interconnection technology for best-in-class thermal performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IMBG65R040M2HXTMA1#C22443502Infineon · TO-263-7 | Infineon | TO-263-7 | On request | ₹900.87 · 0 in stock | View |
| SG2M060075JJ#C52109932Sichainsemi · TO-263-7L | Sichainsemi | TO-263-7L | 214 | ₹379.99 · 214 in stock | View | |
 | NCES075P042D7#C54425829NCE · TO-263-7L | NCE | TO-263-7L | 20 | ₹183.66 · 20 in stock | View |
 | NTBG060N065SC1#C5209021onsemi · D2PAK7(TO-263-7L-HV) | onsemi | D2PAK7(TO-263-7L-HV) | 8 | ₹1,484.14 · 8 in stock | View |
 | AIMBG75R040M1HXTMA1#C22441823Infineon · TO-263-7 | Infineon | TO-263-7 | 2 | ₹1,217.60 · 2 in stock | View |
