InfineonDatasheet (PDF)

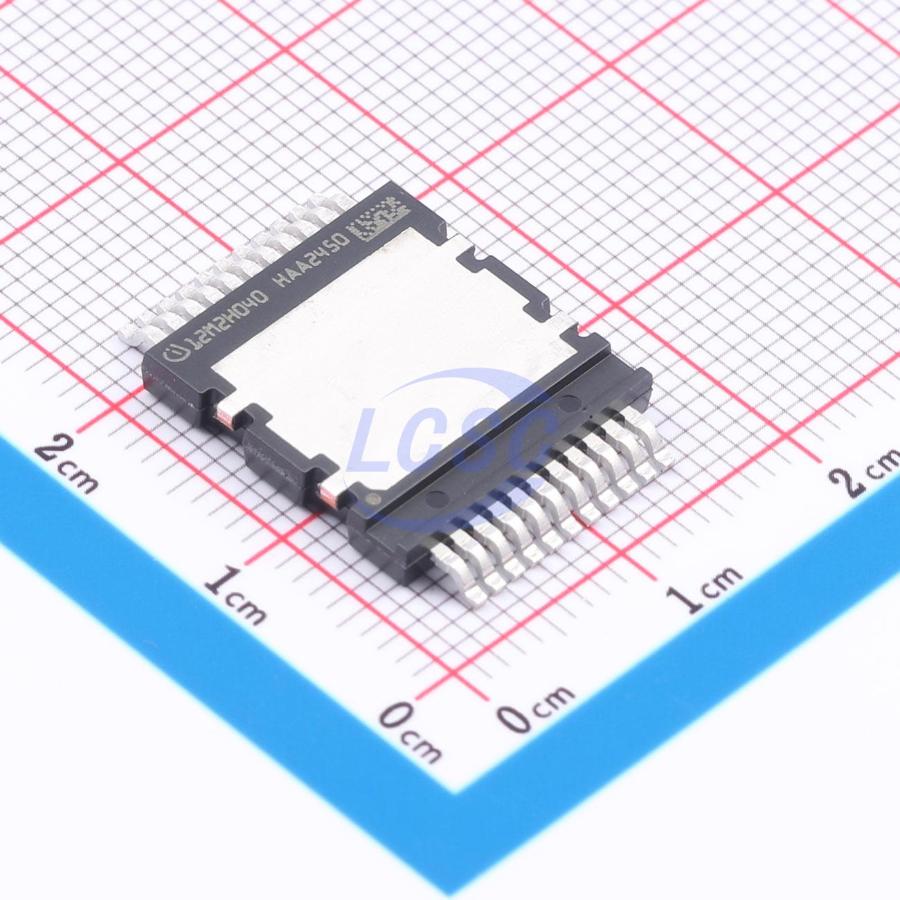

IMCQ120R040M2HXTMA1
1.2kV 56A 288W 39.6mΩ 1 N-channel N-Channel PG-HDSOP-22-3 Single FETs, MOSFETs
PG-HDSOP-22-3RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IMCQ120R040M2HXTMA1
- Store part #
- C43314472
- Package / case
- PG-HDSOP-22-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C43314472
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,560.08 | ₹1,560.08 |
| 10+ | ₹1,483.63 | ₹14,836.30 |
| 30+ | ₹1,351.37 | ₹40,541.10 |
| 100+ | ₹1,235.81 | ₹1,23,581.00 |
1 × ₹1,560.08
₹1,560.08
excl. GST
₹1,840.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
IMCQ120R040M2HXTMA1
₹1,560.08 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Output Capacitance(Coss)
- 55pF
- Current - Continuous Drain(Id)
- 56A
- Ciss-Input Capacitance
- 1.66nF
- Pd - Power Dissipation
- 288W
- Reverse Transfer Capacitance (Crss)
- 4.7pF
- RDS(on)
- 39.6mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 42.4nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 5.1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.13 g
Overview
Applications
- Solid-state circuit breakers/solid-state relays
- Electric vehicle charging
- Online UPS/industrial UPS
- String inverters
- General-purpose drives
Key features
- V_DSS = 1200 V, T_vj = 25℃
- I_DDC = 39 A, T_C = 100℃
- R_DS(on) = 39.6 mΩ, V_GS = 18 V, T_vj = 25℃
- Extremely low switching losses
- Overload operating temperature up to T_vj = 200℃
- Short-circuit withstand time 2 μs
- Nominal gate threshold voltage, V_GS(th) = 4.2 V
- High immunity to parasitic turn-on, 0 V turn-off gate voltage applicable
- Robust body diode for hard commutation
- .XT interconnection technology for enhanced thermal performance
