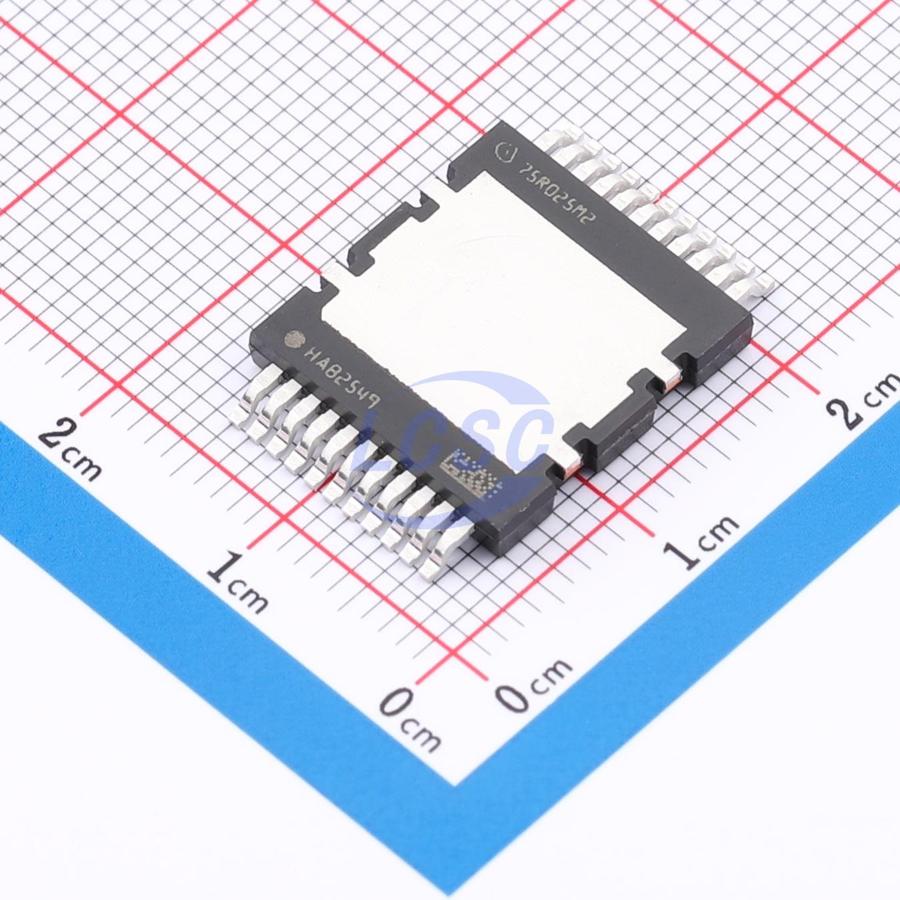

IMDQ75R025M2HXTMA1
750V 70A 272W 31mΩ 1 N-channel N-Channel HDSOP-22 Single FETs, MOSFETs
HDSOP-22RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IMDQ75R025M2HXTMA1
- Store part #
- C47150944
- Package / case
- HDSOP-22
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C47150944
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,714.75 | ₹1,714.75 |
| 10+ | ₹1,655.22 | ₹16,552.20 |
1 × ₹1,714.75
₹1,714.75
excl. GST
₹2,023.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
IMDQ75R025M2HXTMA1
₹1,714.75 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Configuration
- Half-Bridge
- Drain to Source Voltage
- 750V
- Current - Continuous Drain(Id)
- 70A
- Output Capacitance(Coss)
- 153pF
- Ciss-Input Capacitance
- 1.729nF
- Pd - Power Dissipation
- 272W
- Reverse Transfer Capacitance (Crss)
- 9pF
- RDS(on)
- 31mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 49nC
- Gate Threshold Voltage (Vgs(th))
- 5.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
Based on Infineon's powerful second-generation silicon carbide trench technology, the 750V CoolSiC MOSFET delivers unmatched performance, superior reliability, and exceptional ease of use. It enables cost-effective, highly efficient, and simplified designs to meet growing system and market demands.
Applications
- Solid-state relays and circuit breakers
- EV charging infrastructure
- Solar PV inverters and UPS
- Energy storage and battery formation
- Telecom and server switch-mode power supplies
Key features
- Highly reliable 750V technology, 100% avalanche tested
- Best-in-class on-state resistance × reverse recovery charge
- Excellent on-state resistance × output capacitance and on-state resistance × gate charge
- Unique combination of low reverse transfer capacitance/input capacitance and high gate-source threshold voltage
- Infineon proprietary die attach technology
- Advanced TSC package with material set I
- Kelvin source pin included
- Best-in-class on-state resistance among SMD devices
