InfineonDatasheet (PDF)

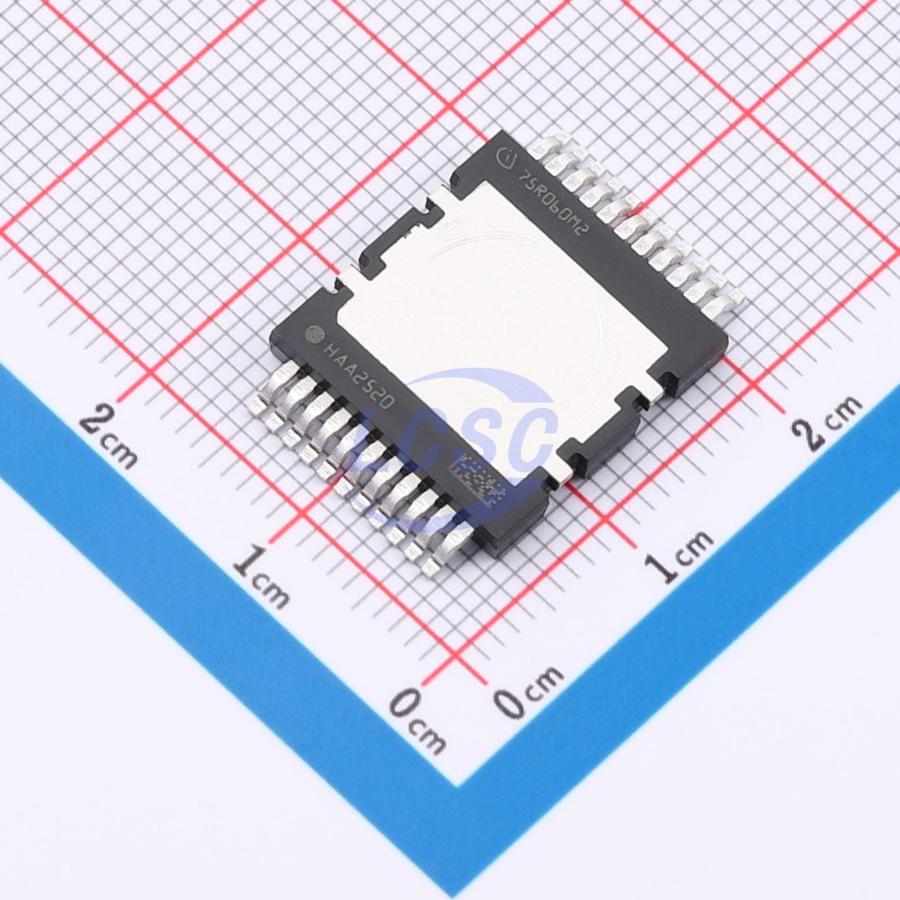

IMDQ75R060M2HXTMA1
840V 30A 128W 78mΩ 1 N-channel N-Channel HDSOP-22 Single FETs, MOSFETs RoHS
HDSOP-22ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IMDQ75R060M2HXTMA1
- Store part #
- C47146885
- Package / case
- HDSOP-22
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52 in stock
#C47146885
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹992.79 | ₹992.79 |
| 10+ | ₹848.19 | ₹8,481.90 |
| 30+ | ₹760.16 | ₹22,804.80 |
| 100+ | ₹686.23 | ₹68,623.00 |
1 × ₹992.79
₹992.79
excl. GST
₹1,171.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
IMDQ75R060M2HXTMA1
₹992.79 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 840V
- Output Capacitance(Coss)
- 64pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 716pF
- Pd - Power Dissipation
- 128W
- Reverse Transfer Capacitance (Crss)
- 3.6pF
- RDS(on)
- 78mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC
- Gate Threshold Voltage (Vgs(th))
- 5.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.84 g
Overview
Based on Infineon's powerful 2nd generation silicon carbide trench technology, the 750V CoolSiC™ MOSFET delivers outstanding performance, excellent reliability, and exceptional ease of use. It enables cost-effective, highly efficient, and simplified designs to meet growing system and market demands.
Applications
- Solid-state relays and circuit breakers
- EV charging infrastructure
- Solar PV inverters and UPS
- Energy storage and battery formation
- Telecom and server switch-mode power supplies
Key features
- Highly robust 750V technology, 100% avalanche tested
- Best-in-class RDS(on) × Qfr
- Excellent RDS(on) × Qoss and RDS(on) × QG
- Unique combination of low Crss/Ciss and high VGS(th)
- Infineon proprietary die attach technology
- Advanced TSC package with material set I
- Driver source pin available
- Best-in-class RDS(on) in SMD devices
