InfineonDatasheet (PDF)

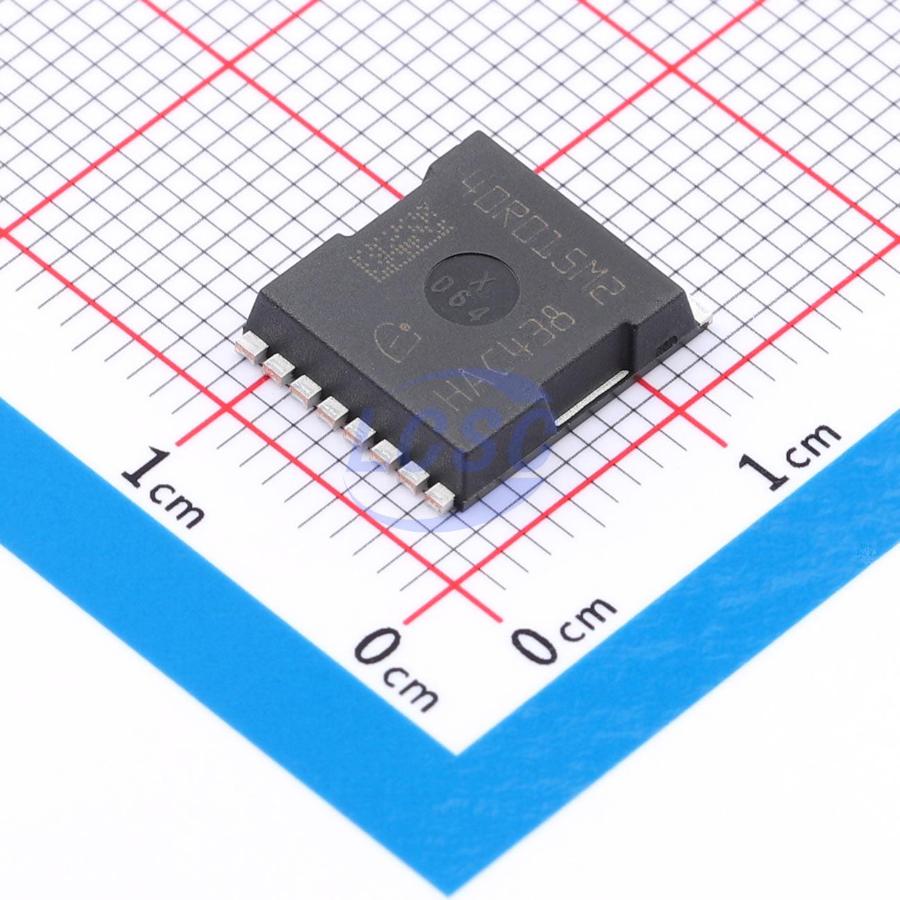

IMT40R015M2HXTMA1
400V 111A 341W 19.1mΩ 1 N-channel N-Channel TOLL Single FETs, MOSFETs RoHS
TOLLROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IMT40R015M2HXTMA1
- Store part #
- C30845525
- Package / case
- TOLL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C30845525
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,537.82 | ₹1,537.82 |
| 10+ | ₹1,483.70 | ₹14,837.00 |
1 × ₹1,537.82
₹1,537.82
excl. GST
₹1,814.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IMT40R015M2HXTMA1
₹1,537.82 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 111A
- Output Capacitance(Coss)
- 300pF
- Ciss-Input Capacitance
- 2.1nF
- Pd - Power Dissipation
- 341W
- Reverse Transfer Capacitance (Crss)
- 24pF
- RDS(on)
- 19.1mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 62nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 5.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.28 g
Overview
Applications
- SMPS
- Solar PV inverters
- Energy storage, UPS, and battery formation
- Class-D audio
- Motor drives
Key features
- Suitable for high-frequency switching and synchronous rectification
- Commutation-robust fast body diode with low Qfr
- Low temperature dependence of RDS(on)
- Nominal gate threshold voltage VGS(th) = 4.5 V
- Recommended gate drive voltage: 0 V to 18 V
- .XT interconnect technology for best-in-class thermal performance
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IMT65R015M2HXUMA1#C44184276Infineon · TOLL-8 | Infineon | TOLL-8 | 6 | ₹2,531.27 · 6 in stock | View |
 | IMT65R010M2HXUMA1#C42670743Infineon · TOLL-8 | Infineon | TOLL-8 | On request | ₹2,759.83 · 0 in stock | View |
 | BCT65N15M1#C53368048Bestirpower · TOLL-8 | Bestirpower | TOLL-8 | On request | ₹539.08 · 0 in stock | View |
 | SP95N65CTO#C48888556Siliup · TOLL-8 | Siliup | TOLL-8 | 1,563 | ₹734.25 · 1,563 in stock | View |
 | NCES075P013LL#C54425817NCE · TOLL | NCE | TOLL | On request | ₹517.53 · 0 in stock | View |
