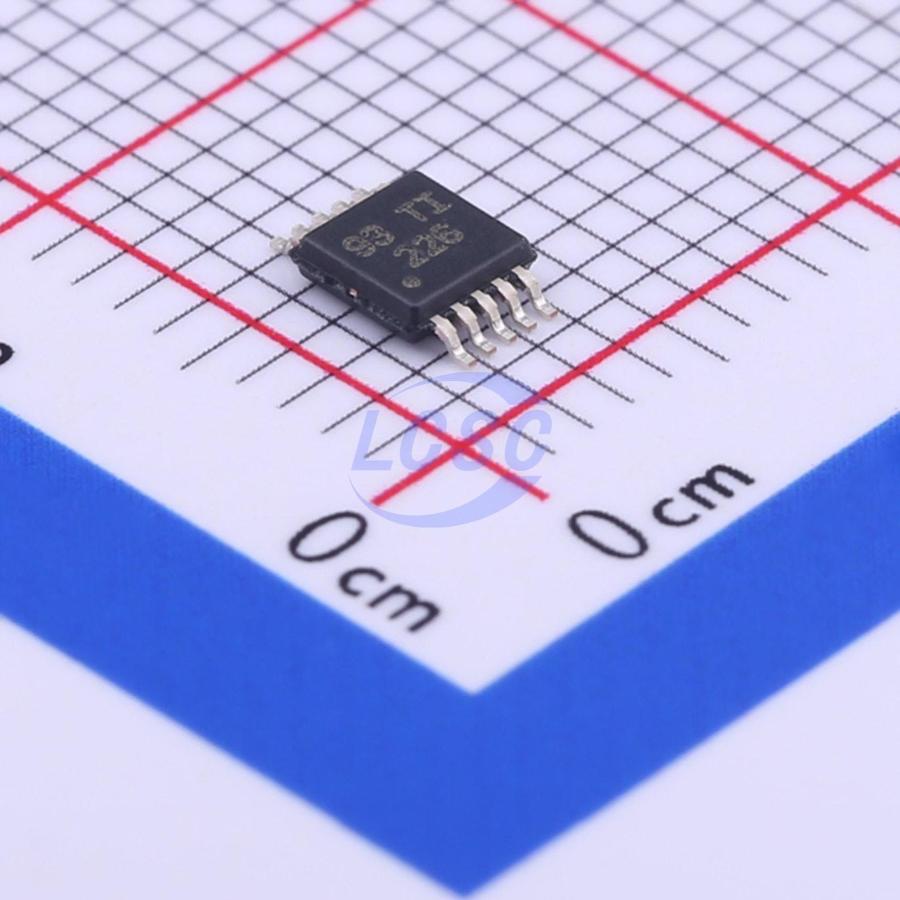

INA226AIDGSR
0V~36V 2.5uV 100pA VSSOP-10 Current Regulation/Management RoHS
PopularVSSOP-10ROHS3 CompliantActive
High-or Low-Side Measurement, Bi-Directional CURRENT/POWER MONITOR with I2C Interface
- Manufacturer
- TI
- Manufacturer part #
- INA226AIDGSR
- Store part #
- C49851
- Package / case
- VSSOP-10
- Category
- Current Regulation/Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38,546 in stock
#C49851
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.83 | ₹100.83 |
| 10+ | ₹83.88 | ₹838.80 |
| 30+ | ₹72.14 | ₹2,164.20 |
| 100+ | ₹62.37 | ₹6,237.00 |
| 500+ | ₹59.32 | ₹29,660.00 |
| 1,000+ | ₹57.38 | ₹57,380.00 |
1 × ₹100.83
₹100.83
excl. GST
₹118.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
INA226AIDGSR
₹100.83 for 1 + GST
Specifications
- Features
- High-side detection;Low-side detection;Bidirectional detection;Power monitoring;Digital output interface;Programmable threshold alarm;Enable/shutdown function
- Vcm - Common Mode Voltage
- 0V~36V
- Input Voltage (Vin)
- 2.7V~5.5V
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 140dB
- Quiescent Current
- 330uA
- Vos - Input Offset Voltage
- 2.5uV
- Ib - Input Bias Current
- 100pA
- Differential Voltage
- ±40V
- Input Offset Voltage Drift(Vos TC)
- 0.1uV/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Overview
The INA226 is a shunt/power monitor with an I²C or SMBUS compatible interface. The device monitors both shunt voltage drop and bus supply voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts. The INA226 senses current on common-mode bus voltages that can vary from 0V to 36V, independent of the supply voltage. The device is powered by a single 2.7V to 5.5V supply, drawing a typical supply current of 330μA. The device is rated for operation over the temperature range of -40°C to 125°C and features up to 16 programmable addresses on the I²C compatible interface.
Applications
- Servers
- Telecom Equipment
- Computing
- Power Management
- Battery Chargers
- Power Supplies
- Test Equipment
Key features
- Sensed bus voltage range: 0V to 36V
- High-side or low-side sensing
- Reports current, voltage, and power
- High accuracy:
- 0.1% gain error (maximum)
- 10μV offset (maximum)
- Configurable averaging options
- 16 programmable addresses
- Powered by 2.7V to 5.5V supply
- 10-pin DGS VSSOP package
