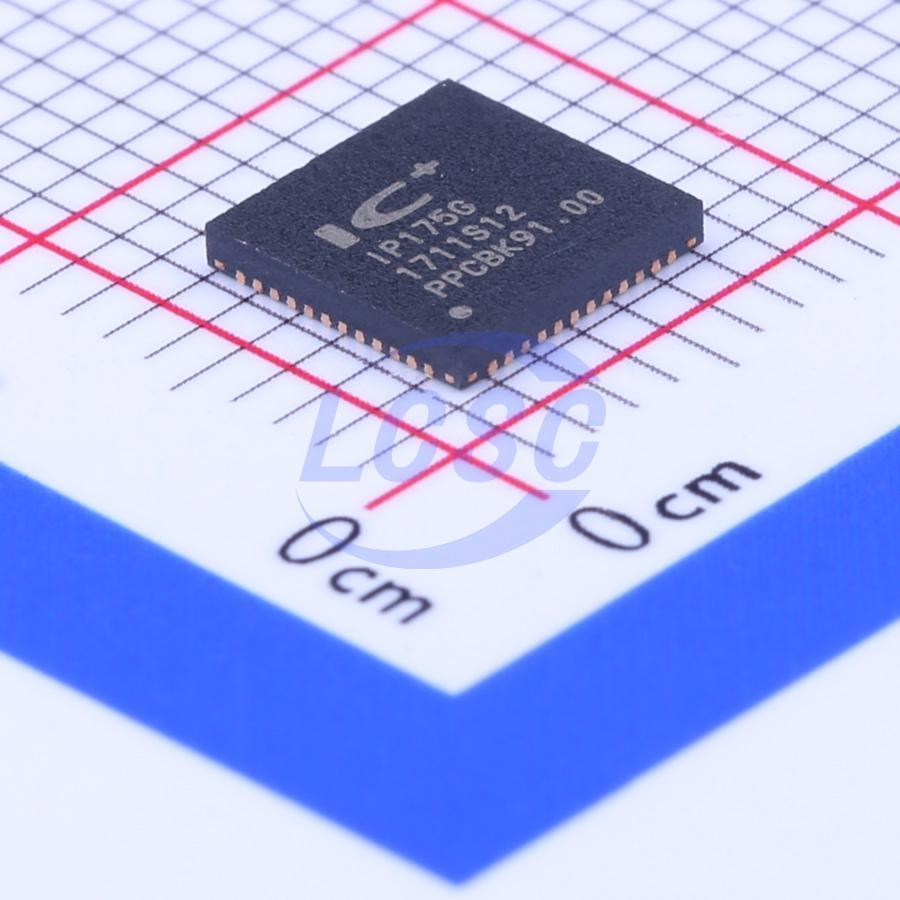

IP175G
QFN-48-EP(6x6) Telecom RoHS
5 Port 10/100 Ethernet Integrated Switch
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,051 in stock
#C80220
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.19 | ₹173.19 |
| 10+ | ₹145.38 | ₹1,453.80 |
| 30+ | ₹130.17 | ₹3,905.10 |
| 100+ | ₹112.79 | ₹11,279.00 |
| 490+ | ₹92.15 | ₹45,153.50 |
| 980+ | ₹88.67 | ₹86,896.60 |
1 × ₹173.19
₹173.19
excl. GST
₹204.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 490 per tray
IP175G
₹173.19 for 1 + GST
Specifications
- MAC Address Support
- 1024
- Operating Temperature
- 0℃~+70℃
- Number of Channels
- 5
- Integrated PHY
- Yes
- Features
- Automatic polarity correction;Low-power mode;Port independent power-down;Remote fault detection
- VLAN Support
- 16
- Ethernet Speed Standards
- 10BASE-T;100BASE-TX
- Voltage - Supply
- 3.3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 490 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
IP175Gx is fabricated with advanced CMOS (85nm) technology and only requires a 3.3V single power supply. This feature makes IP175Gx used very low power consume, such as the full load operation (100Mbps full duplex 5 ports), it only takes 0.45w. IP175Gx also supports Power Management Tool (PWMT) for IEEE 802.3az, APS, WOL+ and PWD for Green Power. While two link devices have no IEEE 802.3az capability, IP175Gx use WOL+ to change link from 100Mbps to 10Mbps for saving power. The PWD of IP175Gx is designed for power down switch immediately by pushing a button, user don’t plug out the power adapter. Push the button again, it will power on immediately. Except Low Power and Rich Power Saving method, IP175Gx supports AFT for saving Customer Testing Cost. By using a push bottom and cables, IP175Gx will Auto test completely by itself. IP175Gx are available in 48 QFN lead free package.
Applications
- 5 port 10/100 Dumb swith
- 4TX + 1FX Dumb Switcn
Key features
- 5 port Embedded 10/100 PHY Switch Controller
- IP175G Support 5 100BaseTX
- IP175GH/GHI Support 5 100BaseTX or 4 100Base TX + 1 FX
- Support 1K MAC address entry
- 448K bits packet buffer memory
- 100M PHY support IEEE802.3az at full duplex 10M PHY only support 10BaseTe
- Support Auto MDI-MDIX function
- Power Management Tool (PWMT APS, auto-power saving while Link-off IEEE 802.3az protocol based power saving WOL+, light traffic power saving PWD, force-off power saving
- Support Auto Factory Test (AFT)
- Single Power 3.3V supply
- Built in 1.1V core voltage LDO Regulator
- Two Priority queues per port
- Support 802.1p & DiffServ based QoS
- QoS Port base - 802.1p - IP DiffServ IPV4/IPV6 TCP/UDP port number Pins configure ports priority (VIP port)
- Support max forwarding packet length 1552/1536 bytes option
- Support port mirror function
- Support 1k MAC address
- Support broadcast storm protection
- Support port trunking (LACP)
- Support 16 VLAN (IEEE Std 802.1q) Port-based/Tagged-based VLAN Support insert, remove tag
- Built-in 50 ohm resistors for simplifying BOM
- 85nm Process
- Package and operation temperature IP175G/GH: QFN 48 (6mmx6mm), 0~70°C IP175GHI: QFN 48 (6mmx6mm), -40~85°C
