TECH PUBLICDatasheet (PDF)

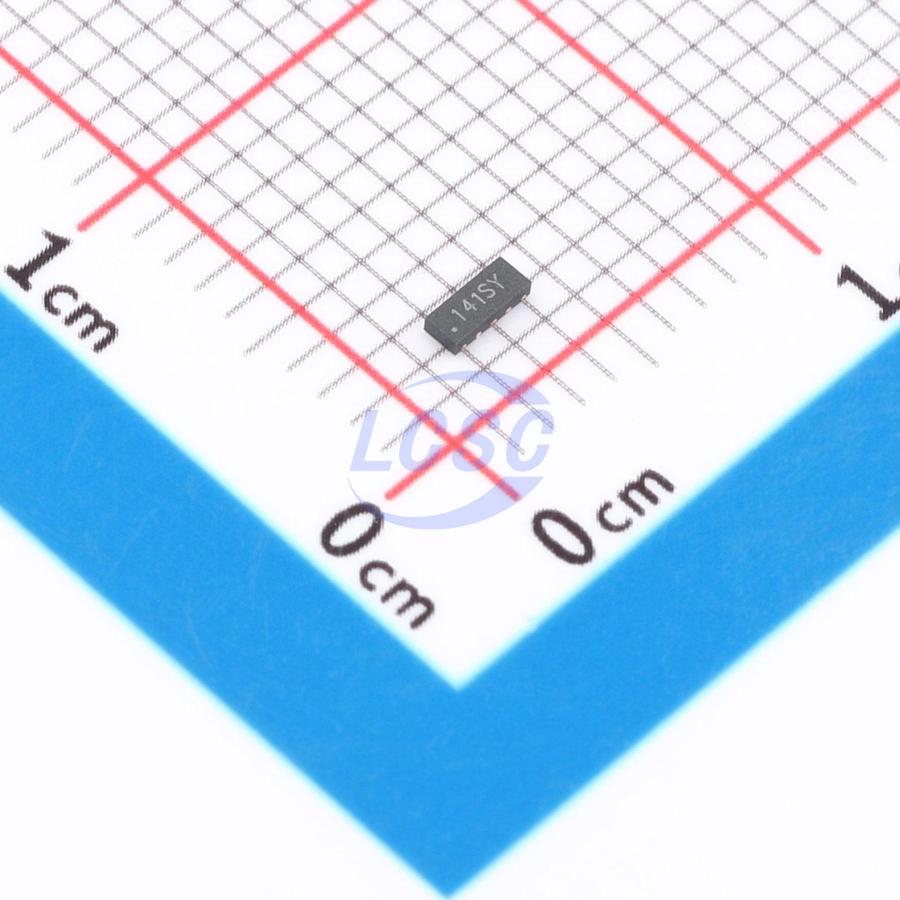

IP4292CZ10-TBR
10V 5.5A@8/20us 55W@8/20us 9.5V Bidirectional 5V DFN2510-10 TVS Diodes RoHS
DFN2510-10ROHS CompliantActive
5VWM 10VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IP4292CZ10-TBR
- Store part #
- C51939565
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,745 in stock
#C51939565
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.35 | ₹56.75 |
| 50+ | ₹9.06 | ₹453.00 |
| 150+ | ₹7.91 | ₹1,186.50 |
| 500+ | ₹7.05 | ₹3,525.00 |
| 3,000+ | ₹5.74 | ₹17,220.00 |
| 6,000+ | ₹5.40 | ₹32,400.00 |
5 × ₹11.35
₹56.75
excl. GST
₹66.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IP4292CZ10-TBR
₹56.75 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 5.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 55W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 9.5V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
