InfineonDatasheet (PDF)

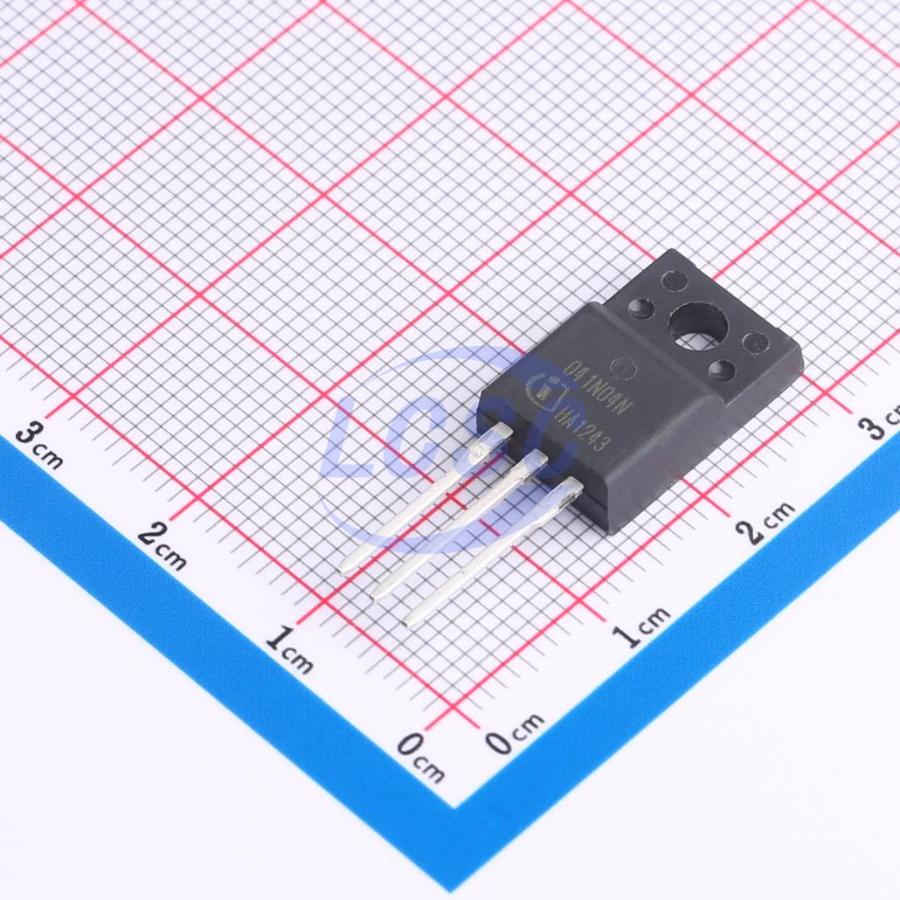

IPA041N04N G
N-Channel 40V 70A 35W Through Hole TO-220FP
TO-220FPROHS3 CompliantDiscontinued
MOSFET N-CH 40V 70A TO-220FP
- Manufacturer
- Infineon
- Manufacturer part #
- IPA041N04N G
- Store part #
- C536311
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C536311
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹430.54 | ₹430.54 |
| 10+ | ₹371.47 | ₹3,714.70 |
| 30+ | ₹336.11 | ₹10,083.30 |
| 100+ | ₹300.55 | ₹30,055.00 |
| 500+ | ₹284.11 | ₹1,42,055.00 |
| 1,000+ | ₹276.84 | ₹2,76,840.00 |
1 × ₹430.54
₹430.54
excl. GST
₹508.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPA041N04N G
₹430.54 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 980pF
- Ciss-Input Capacitance
- 4.5nF
- Pd - Power Dissipation
- 35W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 70A
- Reverse Transfer Capacitance (Crss)
- 72pF
- RDS(on)
- 4.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 56nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.2 g
Overview
Key features
- Technology optimized for DC/DC converters
- JEDEC qualified for target applications
- N-channel, normally-on
- Excellent gate charge x RDS(on) product (figure of merit)
- Ultra-low on-resistance RDS(on)
- 100% avalanche tested
- Lead-free plating; RoHS compliant
- Halogen-free per IEC61249-2-21
