InfineonDatasheet (PDF)

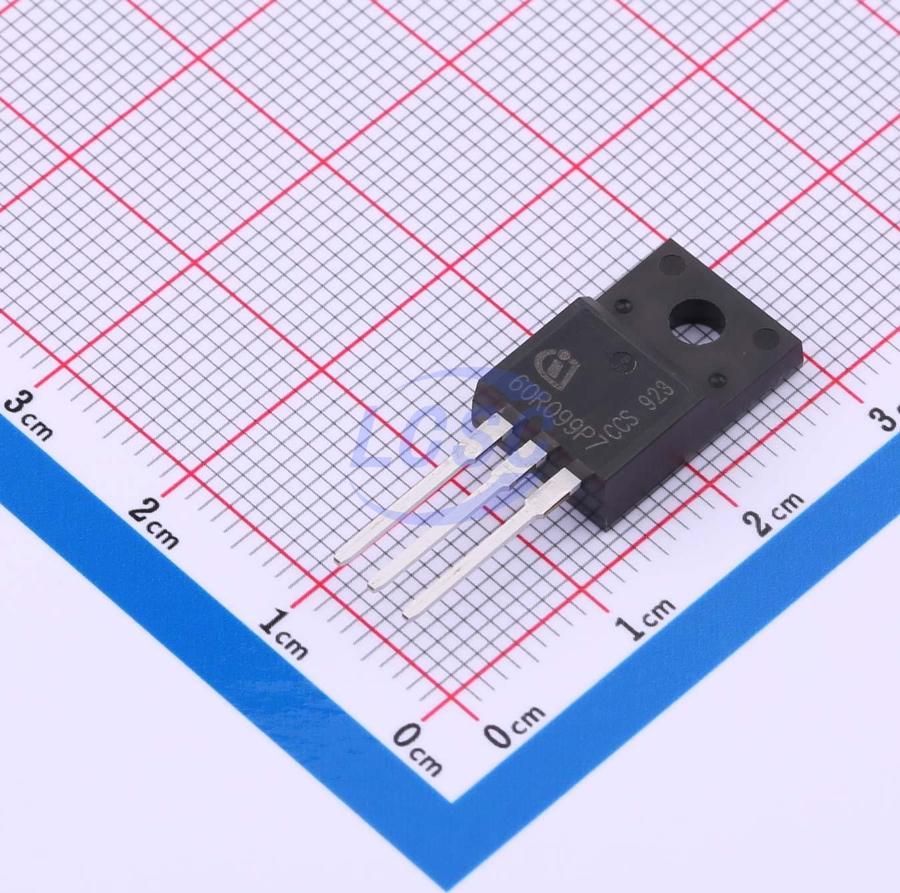

IPA60R099P7XKSA1
29W 650V 20A 99mΩ@10V 1 N-channel N-Channel TO-220FP-3 Single FETs, MOSFETs RoHS
TO-220FP-3ROHS3 CompliantActive
MOSFET N-CH 650V 20A TO-220FP-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R099P7XKSA1
- Store part #
- C672156
- Package / case
- TO-220FP-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C672156
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹638.64 | ₹638.64 |
| 10+ | ₹540.64 | ₹5,406.40 |
| 50+ | ₹482.41 | ₹24,120.50 |
| 100+ | ₹423.52 | ₹42,352.00 |
| 500+ | ₹396.36 | ₹1,98,180.00 |
| 1,000+ | ₹383.97 | ₹3,83,970.00 |
1 × ₹638.64
₹638.64
excl. GST
₹753.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA60R099P7XKSA1
₹638.64 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 33pF
- Ciss-Input Capacitance
- 1.952nF
- Pd - Power Dissipation
- 29W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 649pF
- RDS(on)
- 99mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.12 g
Overview
The CoolMOS 7th Generation platform is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The 600V CoolMOS P7 series is the successor to the CoolMOS P6 series. It combines the advantages of fast-switching SJ MOSFETs with excellent ease of use, such as extremely low ringing tendency, outstanding body diode robustness under hard commutation, and superior ESD capability. In addition, ultra-low switching and conduction losses make switching applications more efficient, compact, and thermally optimized.
Applications
- PFC stage
- Hard-switching PWM stage
- Resonant switching stage for desktop computers
- Adapters
- LCD and PDP TVs
- Lighting
- Servers
- Telecom
- UPS
Key features
- Excellent commutation ruggedness for both hard-switching and soft-switching (PFC and LLC) applications
- Significantly reduced switching and conduction losses
- Outstanding ESD ruggedness across all products, >2kV (HBM)
- Low RDS(on)*A (<1Ω*mm²) delivers superior RDS(on)/package performance vs. competition
