InfineonDatasheet (PDF)

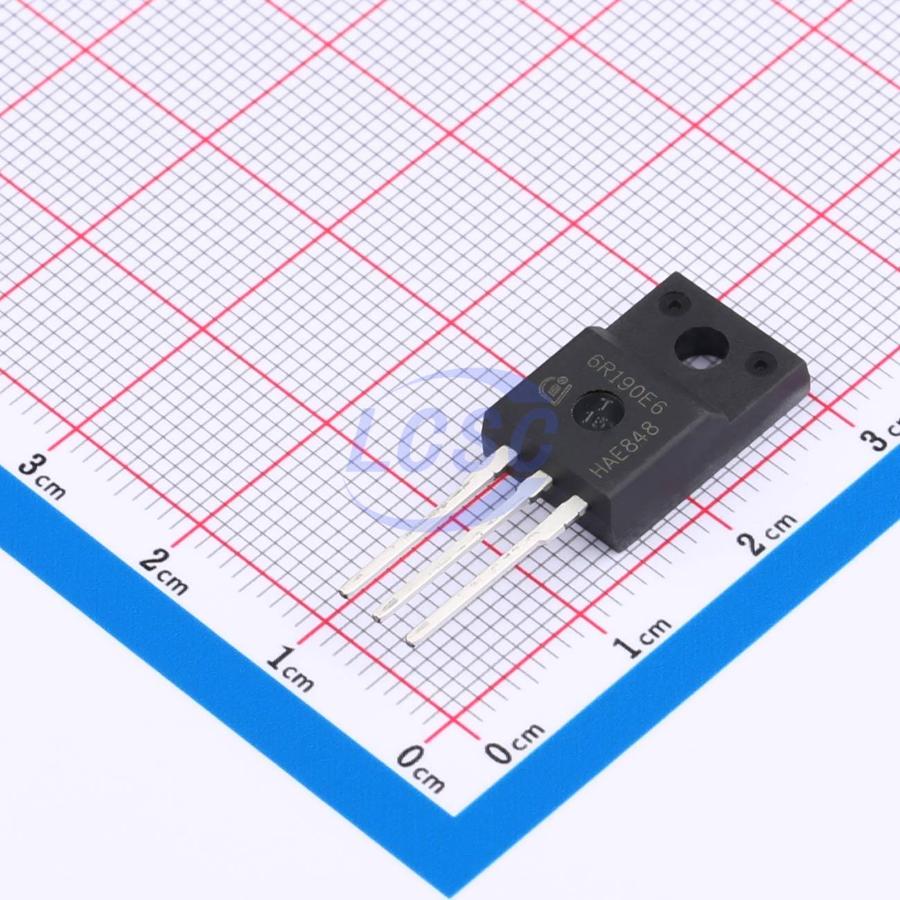

IPA60R190E6
600V 20.2A 34W 170mΩ@10V 1 N-channel TO-220FP-3 Single FETs, MOSFETs RoHS
TO-220FP-3ROHS3 CompliantActive
MOSFET 600V 20.2A TO-220FP-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R190E6
- Store part #
- C536361
- Package / case
- TO-220FP-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C536361
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹224.43 | ₹224.43 |
| 10+ | ₹185.41 | ₹1,854.10 |
| 50+ | ₹164.16 | ₹8,208.00 |
| 100+ | ₹140.08 | ₹14,008.00 |
| 500+ | ₹129.24 | ₹64,620.00 |
| 1,000+ | ₹124.47 | ₹1,24,470.00 |
1 × ₹224.43
₹224.43
excl. GST
₹264.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA60R190E6
₹224.43 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 85pF
- Current - Continuous Drain(Id)
- 20.2A
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 34W
- RDS(on)
- 170mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.331 g
Overview
CoolMOS is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The CoolMOS E6 series combines the experience of leading SJ MOSFET suppliers with best-in-class innovation. The resulting devices deliver all the advantages of fast-switching SJ MOSFETs without compromising ease of use. Ultra-low switching and conduction losses enable switching applications to be more efficient, compact, lightweight, and thermally optimized.
Applications
- Power Factor Correction (PFC) stage
- Hard-switching PWM stage
- Resonant switching PWM stage, e.g., for PC power supplies, adapters, LCD and plasma TVs, lighting, servers, telecom, and UPS
Key features
- Extremely low losses due to ultra-low figure of merit Rdson*Qg and Eoss
- Extremely high commutation ruggedness
- Easy to use/drive
- Lead-free plating, halogen-free molding compound
- Compliant with JEDEC (J-STD20 and JESD22) industrial application standards
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BMF65R190#C50338767BORN · TO-220F | BORN | TO-220F | 1,035 | ₹134.95 · 1,035 in stock | View | |
 | MMF65R190PTH#C193394MagnaChip Semicon · TO-220F | MagnaChip Semicon | TO-220F | 171 | ₹159.33 · 171 in stock | View |
 | GSA25N65EF#C5375286XCH · TO-220F | XCH | TO-220F | 24 | ₹229.91 · 24 in stock | View |
 | NCE70T180F#C502888NCE · TO-220F | NCE | TO-220F | 44 | ₹304.36 · 44 in stock | View |
 | MMFT65R195PTH#C51902190MagnaChip Semicon · TO-220FT | MagnaChip Semicon | TO-220FT | 292 | ₹116.15 · 292 in stock | View |
