InfineonDatasheet (PDF)

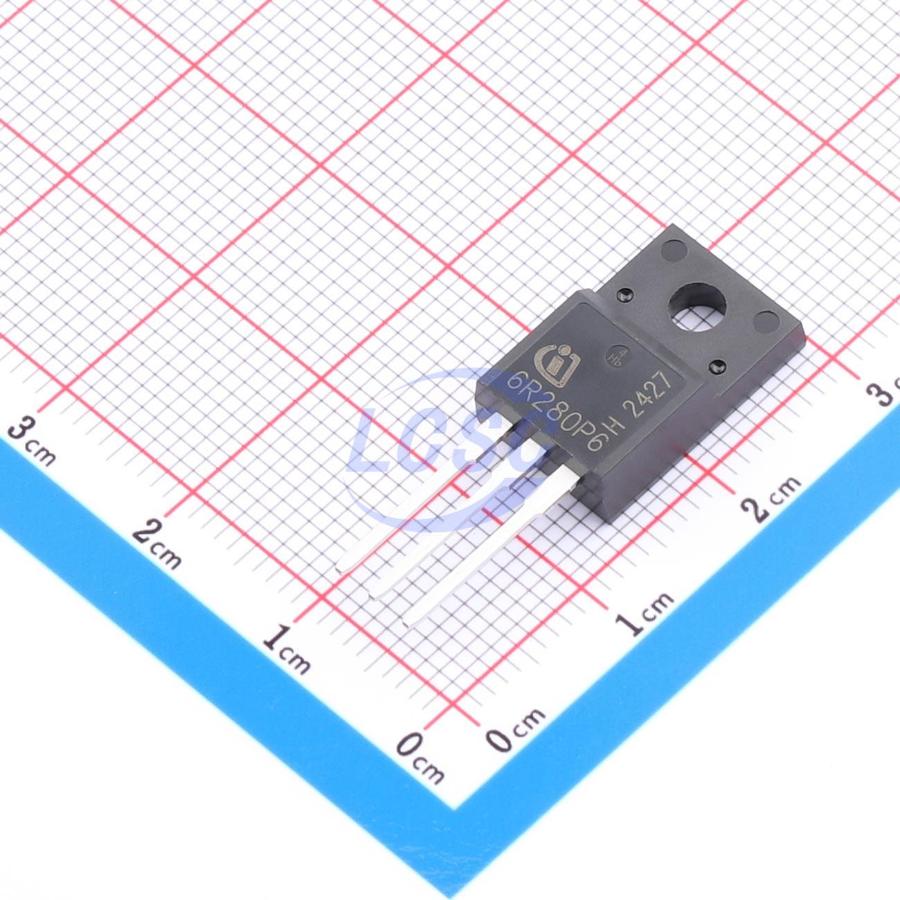

IPA60R280P6
600V 13.8A 32W 252mΩ@10V 1 N-channel N-Channel TO-220FP-3 Single FETs, MOSFETs RoHS
TO-220FP-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R280P6
- Store part #
- C536371
- Package / case
- TO-220FP-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C536371
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.42 | ₹77.42 |
| 10+ | ₹75.69 | ₹756.90 |
| 30+ | ₹74.38 | ₹2,231.40 |
| 100+ | ₹73.08 | ₹7,308.00 |
1 × ₹77.42
₹77.42
excl. GST
₹91.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPA60R280P6
₹77.42 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 54pF
- Current - Continuous Drain(Id)
- 13.8A
- Ciss-Input Capacitance
- 1.19nF
- Pd - Power Dissipation
- 32W
- RDS(on)
- 252mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25.5nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.175 g
Overview
CoolMOS is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The CoolMOS P6 series combines the experience of a leading SJ MOSFET supplier with best-in-class innovation. The devices offer all the advantages of fast-switching SJ MOSFETs without compromising ease of use. Ultra-low switching and conduction losses enable switching applications to be more efficient, compact, lightweight, and thermally optimized.
Applications
- PFC stage - Hard-switching PWM stage - Resonant switching stage, e.g. for PC power supplies, adapters, LCD & PDP TVs, lighting, servers, telecommunications and UPS
Key features
- Enhanced MOSFET dv/dt robustness
- Ultra-low FOM (Rdson×Qg and Eoss) for minimal switching losses
- Extremely high commutation robustness
- Easy to use/drive
- Lead-free plating, halogen-free molding compound
- Compliant with JEDEC (J-STD20 and JESD22) industrial application standards
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCE65T260F#C191423NCE · TO-220F | NCE | TO-220F | 1,898 | ₹218.81 · 1,898 in stock | View |
 | RS65R280BF#C49317674REASUNOS · TO-220F | REASUNOS | TO-220F | 4 | ₹97.25 · 4 in stock | View |
 | WTM15N65AF#C50176602WPMtek · TO-220F | WPMtek | TO-220F | 10 | ₹158.48 · 10 in stock | View |
 | STF24N65M2#C2970244ST · TO-220FPAB-3 | ST | TO-220FPAB-3 | 31 | ₹178.14 · 31 in stock | View |
 | GC280N65F#C19673830GOFORD · TO-220F | GOFORD | TO-220F | 2 | ₹152.00 · 2 in stock | View |
