InfineonDatasheet (PDF)

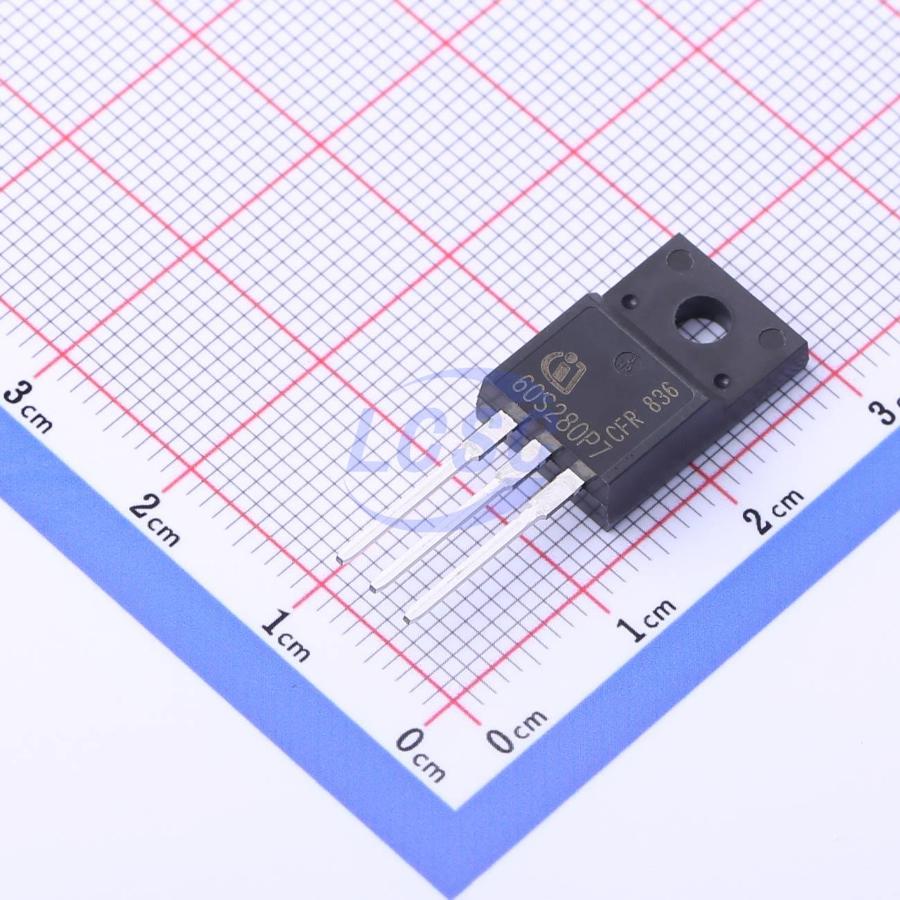

IPA60R280P7SXKSA1
N-Channel 650V 8A 24W Through Hole TO-220FP-3
TO-220FP-3ROHS3 CompliantActive
MOSFET N-CH 650V 8A TO-220FP-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R280P7SXKSA1
- Store part #
- C536373
- Package / case
- TO-220FP-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
116 in stock
#C536373
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹168.56 | ₹168.56 |
| 10+ | ₹141.56 | ₹1,415.60 |
| 50+ | ₹126.76 | ₹6,338.00 |
| 100+ | ₹109.98 | ₹10,998.00 |
| 500+ | ₹102.57 | ₹51,285.00 |
| 1,000+ | ₹99.32 | ₹99,320.00 |
1 × ₹168.56
₹168.56
excl. GST
₹198.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA60R280P7SXKSA1
₹168.56 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 14pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 761pF
- Pd - Power Dissipation
- 24W
- RDS(on)
- 280mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.02 g
Overview
The CoolMOS™ 7th generation platform is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. The 600V CoolMOS™ P7 series is the successor to the CoolMOS™ P6 series. It combines the benefits of a fast switching SJ MOSFET with excellent ease of use, e.g. very low ringing tendency, outstanding robustness of body diode against hard commutation and excellent ESD capability. Furthermore, extremely low switching and conduction losses make switching applications even more efficient, more compact and much cooler.
Applications
- PFC stages
- hard switching PWM stages
- resonant switching stages
- PC Silverbox
- Adapter
- LCD & PDP TV
- Lighting
- Server
- Telecom
- UPS
Key features
- Suitable for hard and soft switching (PFC and LLC) due to an outstanding commutation ruggedness
- Significant reduction of switching and conduction losses
- Excellent ESD robustness ~2kV (HBM) for all products
- Better RDS(on)/package products compared to competition enabled by a low RDS(on)*A (below 1Ohm*mm²)
- Ease of use and fast design-in through low ringing tendency and usage across PFC and PWM stages
- Simplified thermal management due to low switching and conduction losses
- Increased power density solutions enabled by using products with smaller footprint and higher manufacturing quality due to >2kV ESD protection
- Suitable for a wide variety of applications and power ranges
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IPA60R280P7#C536372Infineon · TO-220FP-3 | Infineon | TO-220FP-3 | 10 | ₹353.15 · 10 in stock | View | |
 | STFH18N60M2#C495240ST · TO-220FP-3 | ST | TO-220FP-3 | 4 | ₹132.04 · 4 in stock | View |
 | XR70R320FT#C49305570XNRUSEMI · TO-220F | XNRUSEMI | TO-220F | 27 | ₹89.88 · 27 in stock | View |
 | STF18N65M2#C155552ST · TO-220FP | ST | TO-220FP | 61 | ₹227.52 · 61 in stock | View |
 | TPA65R380D#C691599WUXI UNIGROUP MICRO · TO-220F-3 | WUXI UNIGROUP MICRO | TO-220F-3 | 5 | ₹120.56 · 5 in stock | View |
