InfineonDatasheet (PDF)

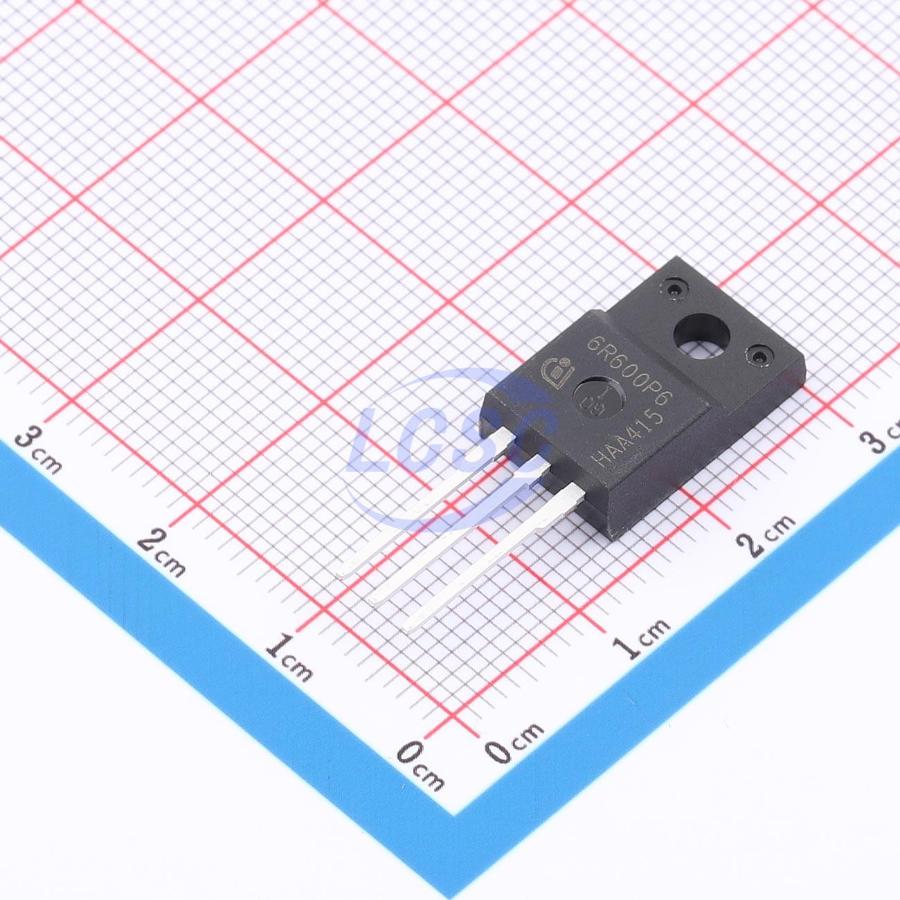

IPA60R600P6
600V 7.3A 28W 540mΩ@10V 1 N-channel N-Channel TO-220FP-3 Single FETs, MOSFETs RoHS
TO-220FP-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R600P6
- Store part #
- C536386
- Package / case
- TO-220FP-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C536386
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹185.29 | ₹185.29 |
| 10+ | ₹182.06 | ₹1,820.60 |
| 30+ | ₹179.91 | ₹5,397.30 |
| 100+ | ₹177.76 | ₹17,776.00 |
1 × ₹185.29
₹185.29
excl. GST
₹218.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPA60R600P6
₹185.29 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 28pF
- Current - Continuous Drain(Id)
- 7.3A
- Ciss-Input Capacitance
- 557pF
- Pd - Power Dissipation
- 28W
- RDS(on)
- 540mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.588 g
Overview
CoolMOS™ is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The CoolMOS™ P6 series combines the experience of leading SJ MOSFET suppliers with outstanding innovation. The offered devices deliver all the advantages of fast-switching SJ MOSFETs without sacrificing ease of use. Ultralow switching and conduction losses enable switching applications to be more efficient, compact, lightweight, and thermally optimized.
Applications
- PFC stage, hard-switching PWM stage, and resonant switching stage for applications such as PC power supplies, adapters, LCD and PDP TVs, lighting, servers, telecom, and UPS equipment.
Key features
- Enhanced MOSFET dv/dt robustness
- Ultra-low losses due to extremely low figure of merit Rdson*Qg and Eoss
- Extremely high commutation robustness
- Easy to use/drive
- Lead-free plating, halogen-free molding compound
- Compliant with JEDEC (J-STD20 and JESD22) industrial application standards
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS65R600F#C49317649REASUNOS · TO-220F | REASUNOS | TO-220F | 50 | ₹68.52 · 50 in stock | View |
 | OSG70R600FF#C2762906ORIENTAL SEMI · TO-220F | ORIENTAL SEMI | TO-220F | 4 | ₹80.04 · 4 in stock | View |
 | MMF80R650QZTH#C51891812MagnaChip Semicon · TO-220F | MagnaChip Semicon | TO-220F | 224 | ₹97.77 · 224 in stock | View |
 | MJF08N65#C47361040MIRACLE POWER · TO-220F | MIRACLE POWER | TO-220F | 145 | ₹69.46 · 145 in stock | View |
 | OSG65R580FF#C49005840ORIENTAL SEMI · TO-220F | ORIENTAL SEMI | TO-220F | 121 | ₹73.02 · 121 in stock | View |
