InfineonDatasheet (PDF)

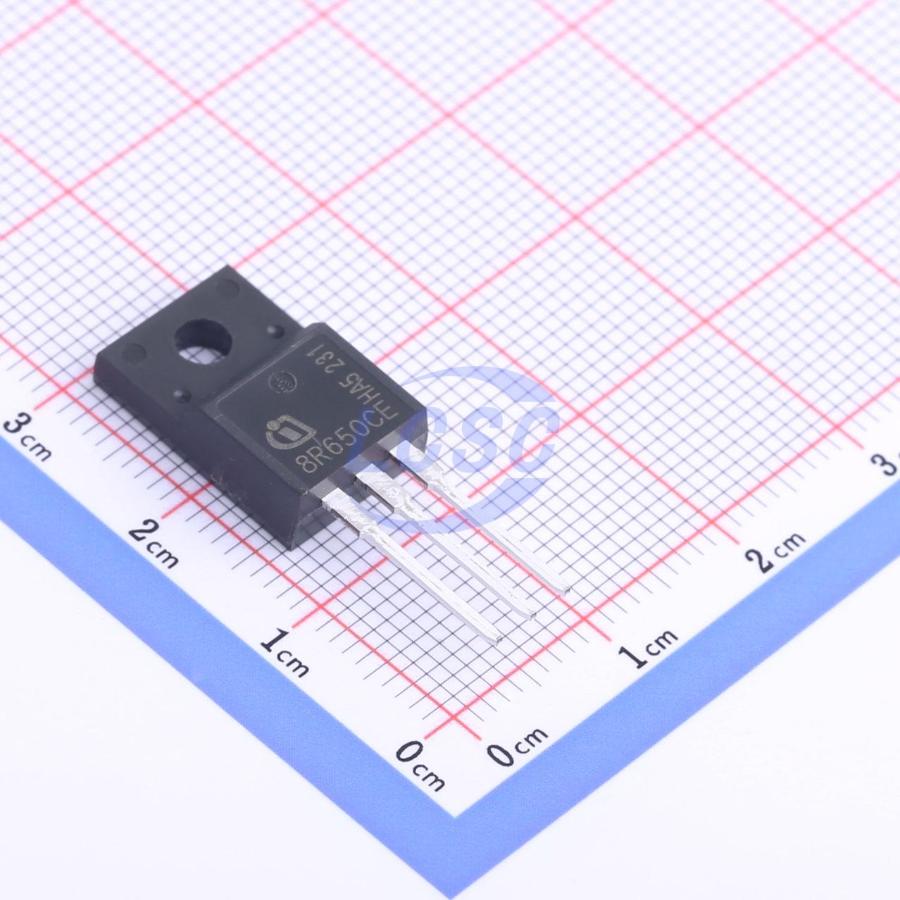

IPA80R650CEXKSA2
N-Channel 800V 5.1A 33W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 800V 5.1A TO-220FP
- Manufacturer
- Infineon
- Manufacturer part #
- IPA80R650CEXKSA2
- Store part #
- C536427
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C536427
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹205.79 | ₹205.79 |
| 10+ | ₹201.23 | ₹2,012.30 |
| 50+ | ₹188.83 | ₹9,441.50 |
| 100+ | ₹185.79 | ₹18,579.00 |
1 × ₹205.79
₹205.79
excl. GST
₹242.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA80R650CEXKSA2
₹205.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 5.1A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 33W
- RDS(on)
- 1.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.75 g
Overview
CoolMOS CE is a revolutionary technology for high voltage power MOSFETs. The high voltage capability combines safety with performance and ruggedness to allow stable designs at highest efficiency level. CoolMOS 800V CE comes with selected package choice offering the benefit of reduced system costs and higher power density designs.
Applications
- LED Lighting and Adapter in QR Flyback topology
Key features
- High voltage technology
- Extreme dv/dt rated
- High peak current capability
- Low gate charge
- Low effective capacitances
- Pb-free plating, RoHS Compliant, Halogen free mold compound
- Qualified for consumer grade applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RSE80R250F#C7465271REASUNOS · TO-220F | REASUNOS | TO-220F | 113 | ₹184.04 · 113 in stock | View |
 | NTPF360N80S3Z#C899991onsemi · TO-220F | onsemi | TO-220F | 7 | ₹419.92 · 7 in stock | View |
 | STP8NK80ZFP#C81351ST · TO-220FP | ST | TO-220FP | 162 | ₹202.01 · 162 in stock | View |
 | NCE80T560F#C502907NCE · TO-220F | NCE | TO-220F | 470 | ₹234.71 · 470 in stock | View |
| IPA80R310CE#C536422Infineon · TO-220FP-3 | Infineon | TO-220FP-3 | 26 | ₹695.98 · 26 in stock | View | |
