InfineonDatasheet (PDF)

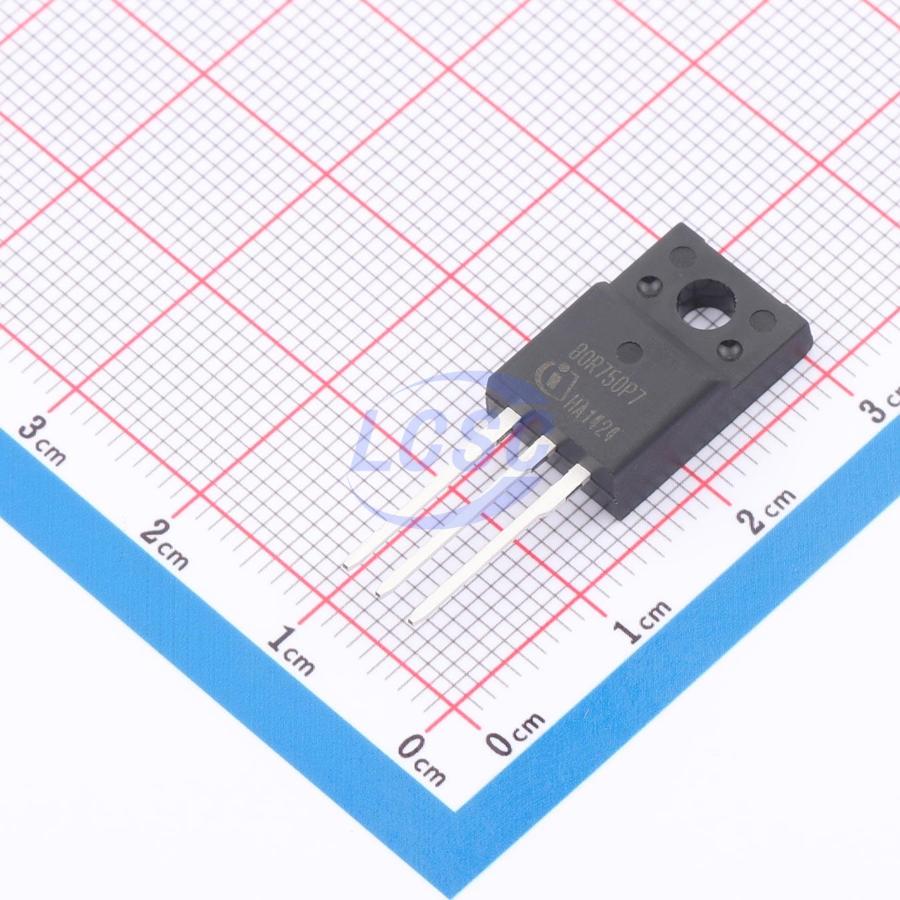

IPA80R750P7
800V 7A 27W 750mΩ@10V 1 N-channel TO-220FP Single FETs, MOSFETs RoHS
TO-220FPROHS3 CompliantActive
MOSFET N-CH 800V 7A TO-220FP
- Manufacturer
- Infineon
- Manufacturer part #
- IPA80R750P7
- Store part #
- C536428
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C536428
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹286.93 | ₹286.93 |
| 10+ | ₹241.65 | ₹2,416.50 |
| 50+ | ₹213.35 | ₹10,667.50 |
| 100+ | ₹184.39 | ₹18,439.00 |
| 500+ | ₹171.12 | ₹85,560.00 |
| 1,000+ | ₹165.45 | ₹1,65,450.00 |
1 × ₹286.93
₹286.93
excl. GST
₹338.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA80R750P7
₹286.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 9pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 460pF
- Pd - Power Dissipation
- 27W
- RDS(on)
- 750mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.1 g
Overview
The latest 800V CoolMOS™ P7 series sets a new benchmark in 800V superjunction technology, combining best-in-class performance with advanced ease of use — backed by Infineon's more than 18 years of pioneering experience in superjunction technology innovation.
Applications
- Hard-switching and soft-switching flyback topologies for LED lighting
- Low-power chargers and adapters
- Audio
- Auxiliary power supplies
- Industrial power supplies
- PFC stage in consumer applications
- Solar
Key features
- Best-in-class figure of merit RDS(on) * Eoss; reduced Qg, Ciss and Coss
- Best-in-class DPAK RDS(on)
- Best-in-class 3V V(GS)th with minimal V(GS)th variation range of ±0.5V
- Integrated Zener diode ESD protection
- Fully compliant with JEDEC industrial application standards
- Comprehensively optimized product portfolio
