InfineonDatasheet (PDF)

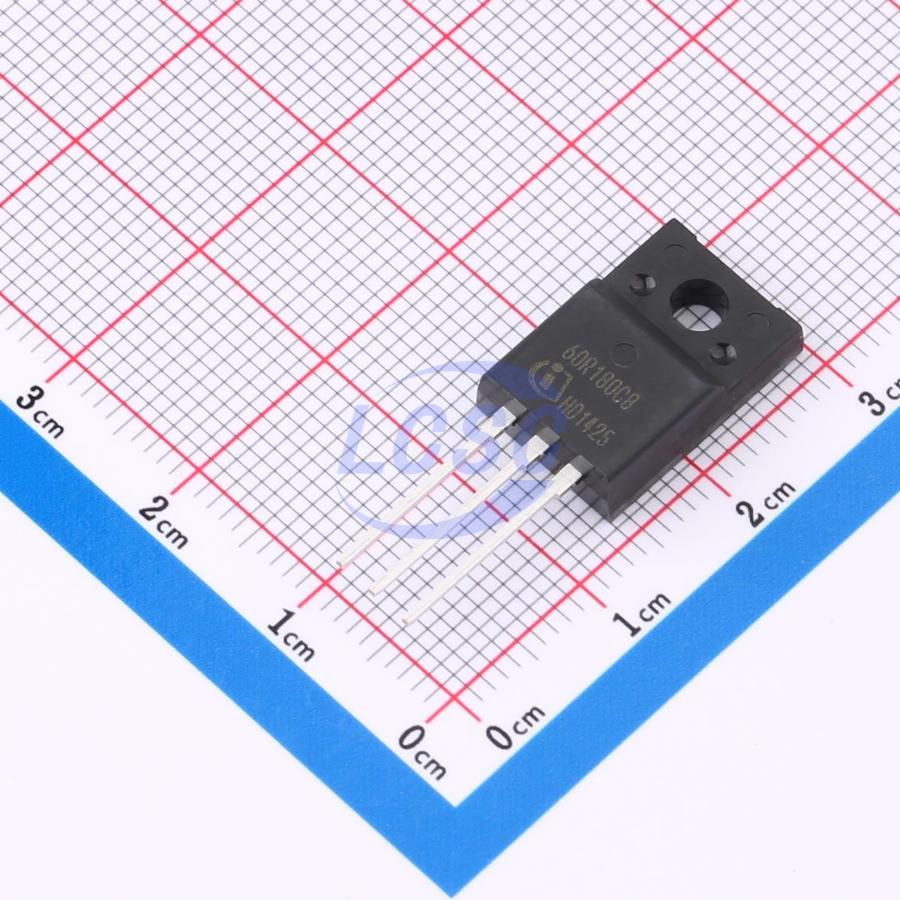

IPAN60R180CM8XKSA1
600V 8A 25W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET 600V 8A TO-220FP
- Manufacturer
- Infineon
- Manufacturer part #
- IPAN60R180CM8XKSA1
- Store part #
- C28858717
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C28858717
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹287.28 | ₹287.28 |
| 10+ | ₹241.42 | ₹2,414.20 |
| 50+ | ₹212.96 | ₹10,648.00 |
| 100+ | ₹183.62 | ₹18,362.00 |
| 500+ | ₹170.36 | ₹85,180.00 |
| 1,000+ | ₹164.50 | ₹1,64,500.00 |
1 × ₹287.28
₹287.28
excl. GST
₹338.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPAN60R180CM8XKSA1
₹287.28 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 8A
- Output Capacitance(Coss)
- 11pF
- Ciss-Input Capacitance
- 743pF
- Pd - Power Dissipation
- 25W
- RDS(on)
- 180mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.573 g
Overview
The CoolMOS™ Generation 8 platform is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The 600V CoolMOS™ CM8 series is the successor to CoolMOS™ 7. It combines the advantages of fast-switching SJ MOSFETs with outstanding ease of use, such as low ringing tendency. All devices feature a fast body diode (CFD) with excellent hard commutation ruggedness and superior ESD capability. In addition, the ultra-low switching and conduction losses of CM8 enable higher efficiency in switching applications.
Applications
- Power supplies and converters
- Power Factor Correction (PFC) stage and LLC resonant converters
- High-efficiency switching applications
Key features
- Excellent commutation robustness for hard-switching and soft-switching topologies
- Significantly reduced switching and conduction losses
- Ultra-low RDS(on)*A delivers best-in-class RDS(on) per package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPA65R380D#C691599WUXI UNIGROUP MICRO · TO-220F-3 | WUXI UNIGROUP MICRO | TO-220F-3 | 5 | ₹120.56 · 5 in stock | View |
 | STF16N60M6#C155608ST · TO-220FPAB-3 | ST | TO-220FPAB-3 | 2 | ₹551.72 · 2 in stock | View |
 | FCPF360N65S3R0L-F154#C2902104onsemi · TO-220F | onsemi | TO-220F | 229 | ₹430.39 · 229 in stock | View |
 | FCPF360N65S3R0L#C348537onsemi · TO-220F | onsemi | TO-220F | 2 | ₹211.39 · 2 in stock | View |
 | STFU16N65M2#C501000ST · TO-220FP | ST | TO-220FP | 3 | ₹252.24 · 3 in stock | View |
