InfineonDatasheet (PDF)

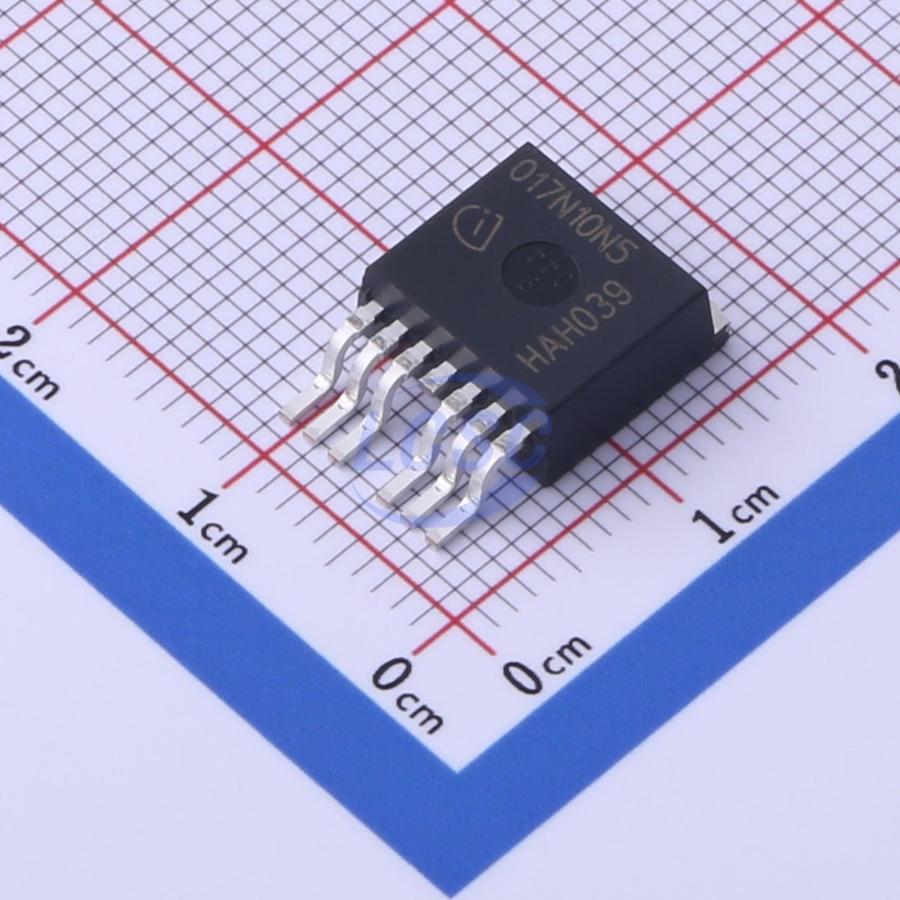

IPB017N10N5
375W 100V 180A 1.7mΩ@10V 1 N-channel N-Channel TO-263-7 Single FETs, MOSFETs RoHS
TO-263-7ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPB017N10N5
- Store part #
- C536479
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
143 in stock
#C536479
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹697.50 | ₹697.50 |
| 10+ | ₹601.45 | ₹6,014.50 |
| 30+ | ₹486.32 | ₹14,589.60 |
| 100+ | ₹428.65 | ₹42,865.00 |
| 500+ | ₹401.98 | ₹2,00,990.00 |
| 1,000+ | ₹390.06 | ₹3,90,060.00 |
1 × ₹697.50
₹697.50
excl. GST
₹823.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB017N10N5
₹697.50 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.81nF
- Ciss-Input Capacitance
- 15.6nF
- Pd - Power Dissipation
- 375W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 180A
- Reverse Transfer Capacitance (Crss)
- 140pF
- RDS(on)
- 1.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 168nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.71 g
Overview
Key features
- Suitable for high-frequency switching and synchronous rectification
- Excellent gate charge × R<sub>DS(ON)</sub> figure of merit (FOM)
- Ultra-low on-resistance R<sub>DS(ON)</sub>
- N-channel, normally-on
- 100% avalanche tested
- Lead-free plating; RoHS compliant
- JEDEC qualified for target applications
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPF015N10N5ATMA1#C20191598Infineon · TO-263-7-1 | Infineon | TO-263-7-1 | 10 | ₹1,907.37 · 10 in stock | View |
 | CMB029N10-7#C52118366Cmos · TO-263-7 | Cmos | TO-263-7 | 790 | ₹172.59 · 790 in stock | View |
| MDES14N045RH#C4944866MagnaChip Semicon · D2PAK-7L | MagnaChip Semicon | D2PAK-7L | 639 | ₹199.11 · 639 in stock | View | |
 | IPB036N12N3GATMA1#C3279258Infineon · TO-263-7 | Infineon | TO-263-7 | 8 | ₹940.97 · 8 in stock | View |
 | IPF026N15NM6ATMA1#C31785718Infineon · TO-263-7 | Infineon | TO-263-7 | 18 | ₹846.84 · 18 in stock | View |
