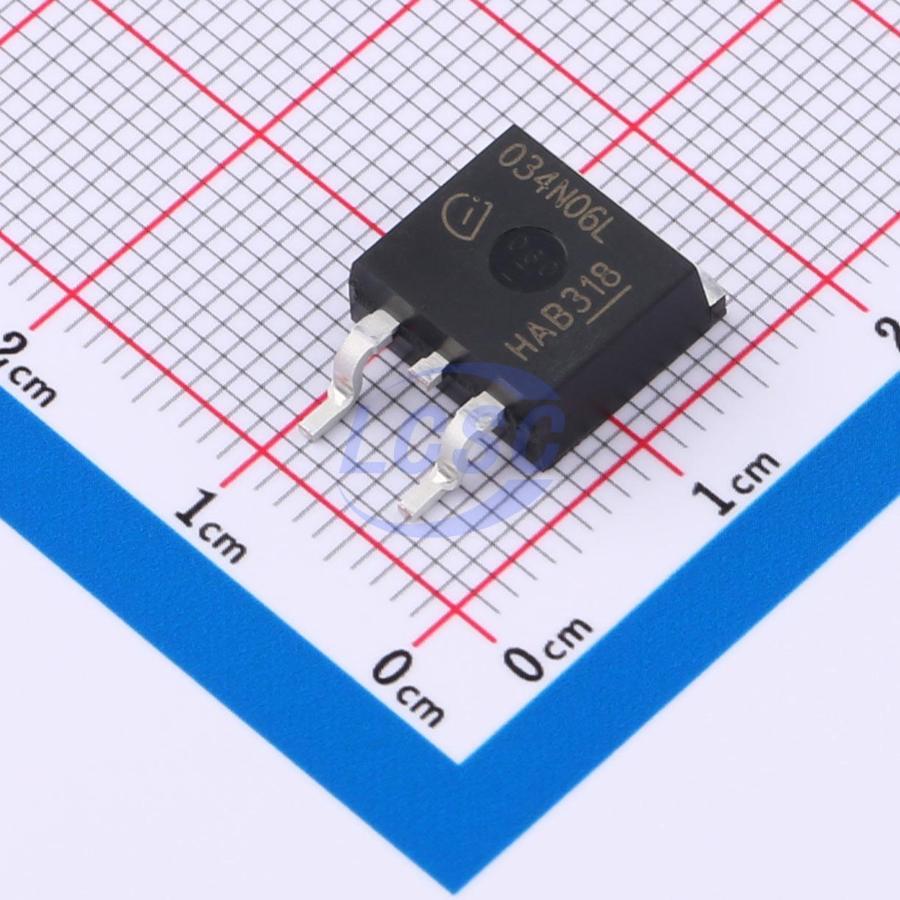

IPB034N06L3GATMA1
167W 60V 90A 3.7mΩ@10V 1 N-channel N-Channel TO-263-3 Single FETs, MOSFETs RoHS
TO-263-3ROHS CompliantActive
MOSFET N-CH 60V 90A TO-263-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPB034N06L3GATMA1
- Store part #
- C3279168
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
124 in stock
#C3279168
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹289.88 | ₹289.88 |
| 10+ | ₹245.99 | ₹2,459.90 |
| 30+ | ₹218.61 | ₹6,558.30 |
| 100+ | ₹190.58 | ₹19,058.00 |
| 500+ | ₹177.76 | ₹88,880.00 |
| 1,000+ | ₹172.32 | ₹1,72,320.00 |
1 × ₹289.88
₹289.88
excl. GST
₹342.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB034N06L3GATMA1
₹289.88 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.3nF
- Ciss-Input Capacitance
- 13nF
- Pd - Power Dissipation
- 167W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 90A
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 3.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 79nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.333 g
Overview
Key features
- High-frequency switching and synchronous rectification
- Technology optimized for DC/DC converters
- Excellent gate charge × RDS(on) figure of merit
- Ultra-low on-state resistance RDS(on)
- N-channel, logic level
- 100% avalanche tested
- Lead-free plating; RoHS compliant
- JEDEC qualified for target applications
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IPB120N08S4-04#C536550Infineon · TO-263-3 | Infineon | TO-263-3 | 5 | ₹667.39 · 5 in stock | View | |
 | IPB120N06S4-03#C536547Infineon · TO-263-3 | Infineon | TO-263-3 | 39 | ₹248.39 · 39 in stock | View |
 | IPB031N08N5ATMA1#C3279162Infineon · TO-263-3 | Infineon | TO-263-3 | 3 | ₹616.00 · 3 in stock | View |
 | IPB90N06S404ATMA2#C3279174Infineon · TO-263-3 | Infineon | TO-263-3 | 10 | ₹623.70 · 10 in stock | View |
 | CSD19505KTT#C2867099TI · TO-263-3 | TI | TO-263-3 | 46 | ₹268.37 · 46 in stock | View |
