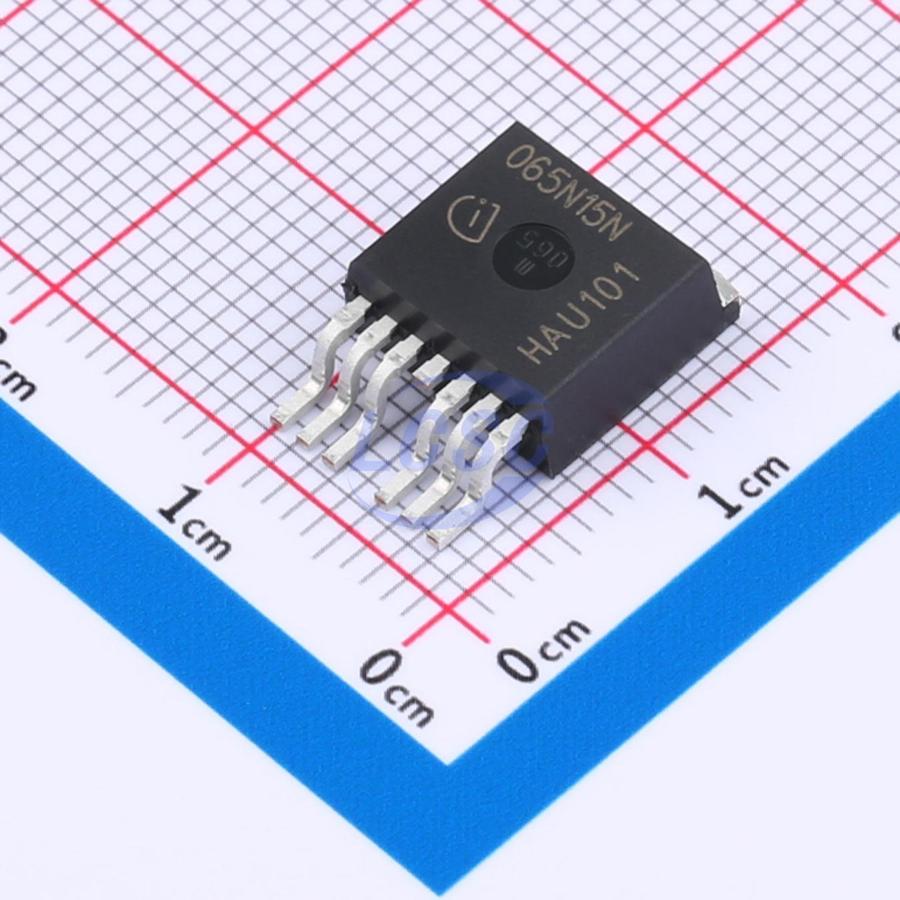

InfineonDatasheet (PDF)
IPB065N15N3GATMA1
300W 150V 130A 6.5mΩ@10V 1 N-channel N-Channel TO-263-7 Single FETs, MOSFETs RoHS
TO-263-7ROHS3 CompliantActive
MOSFET N-CH 150V 130A TO-263-7
- Manufacturer
- Infineon
- Manufacturer part #
- IPB065N15N3GATMA1
- Store part #
- C3279254
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C3279254
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹890.92 | ₹890.92 |
| 10+ | ₹766.19 | ₹7,661.90 |
| 30+ | ₹690.14 | ₹20,704.20 |
| 100+ | ₹626.47 | ₹62,647.00 |
1 × ₹890.92
₹890.92
excl. GST
₹1,051.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB065N15N3GATMA1
₹890.92 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 850pF
- Ciss-Input Capacitance
- 7.3nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 130A
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 6.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 93nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.633 g
Overview
The latest 650 V CoolMOS CFD7 extends the CFD7 family's voltage portfolio and is the successor to the 650 V CoolMOS CFD2. With improved switching performance and excellent thermal characteristics, the 650 V CoolMOS CFD7 delivers maximum efficiency in resonant switching topologies such as LLC and phase-shifted full bridge (ZVS). As part of Infineon's fast body diode portfolio, this new product family combines all the advantages of fast switching technology with outstanding hard-commutation robustness. CoolMOS CFD7 technology meets the highest standards of efficiency and reliability while enabling high power density solutions.
Applications
- Soft-switching topology
- Phase-shifted full-bridge (ZVS), LLC applications — servers, telecom, EV charging, solar
Key features
- N-channel, normally-on
- Excellent gate charge × R DS(on) product (figure of merit)
- Ultra-low on-resistance R DS(on)
- Operating temperature up to 175°C
- Lead-free lead finish; RoHS compliant
- Qualified per JEDEC standards for target applications
- Ideal for high-frequency switching and synchronous rectification
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPF067N20NM6ATMA1#C22408575Infineon · TO-263-7 | Infineon | TO-263-7 | 3 | ₹1,346.17 · 3 in stock | View |
 | XRS150N15G7#C42457108XNRUSEMI · TO-263-7 | XNRUSEMI | TO-263-7 | 645 | ₹154.16 · 645 in stock | View |
 | NTBGS4D1N15MC-VB#C47993777VBsemi Elec · TO-263-7 | VBsemi Elec | TO-263-7 | 10 | ₹340.04 · 10 in stock | View |
 | IRFS4321TRL7PP-VB#C47993793VBsemi Elec · D2PAK(TO-263-7L) | VBsemi Elec | D2PAK(TO-263-7L) | 10 | ₹340.04 · 10 in stock | View |
 | IPB065N15N3GATMA1-VB#C47993824VBsemi Elec · D2PAK-7 | VBsemi Elec | D2PAK-7 | 8 | ₹308.26 · 8 in stock | View |
