InfineonDatasheet (PDF)

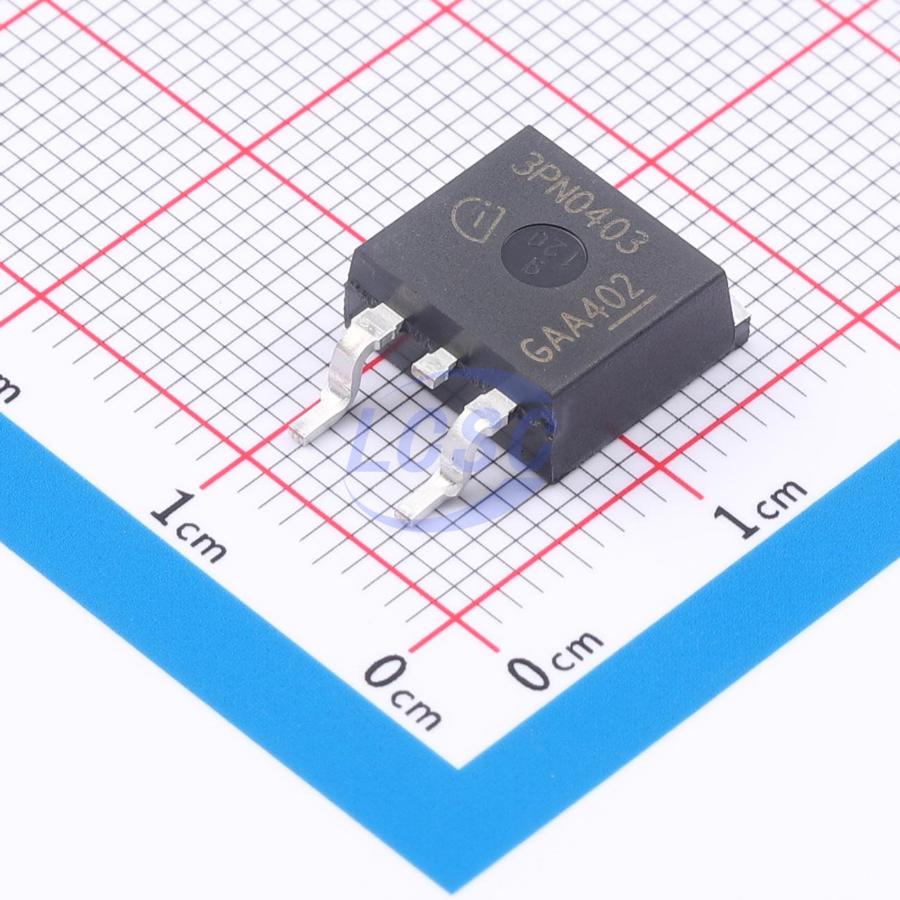

IPB100N04S3-03
214W 40V 100A 2.2mΩ@10V 1 N-channel N-Channel TO-263-3 Single FETs, MOSFETs RoHS
TO-263-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPB100N04S3-03
- Store part #
- C536527
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C536527
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹374.87 | ₹374.87 |
| 10+ | ₹365.73 | ₹3,657.30 |
| 30+ | ₹359.42 | ₹10,782.60 |
| 100+ | ₹353.32 | ₹35,332.00 |
1 × ₹374.87
₹374.87
excl. GST
₹442.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB100N04S3-03
₹374.87 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2nF
- Ciss-Input Capacitance
- 7.4nF
- Pd - Power Dissipation
- 214W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 310pF
- RDS(on)
- 2.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.664 g
Overview
Key features
- N-Channel - Enhancement Mode
- AEC Q101 Automotive Qualified
- MSL1 rated with 260°C peak reflow temperature
- 175°C operating temperature
- Green package (RoHS compliant)
- Ultra-low on-resistance Rds(on)
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB035N08N3GATMA1#C5124116Infineon · TO-263-3 | Infineon | TO-263-3 | 5 | ₹931.47 · 5 in stock | View |
 | IPB024N08N5#C3289225Infineon · TO-263-3 | Infineon | TO-263-3 | 8 | ₹1,230.59 · 8 in stock | View |
 | CSD18511KTTT#C2861416TI · TO-263-3 | TI | TO-263-3 | 118 | ₹227.23 · 118 in stock | View |
 | IPB042N10N3G#C69300Infineon · TO-263-3 | Infineon | TO-263-3 | 12,806 | ₹97.51 · 12,806 in stock | View |
 | IPB120N04S4-02#C536543Infineon · TO-263-3 | Infineon | TO-263-3 | 360 | ₹324.77 · 360 in stock | View |
