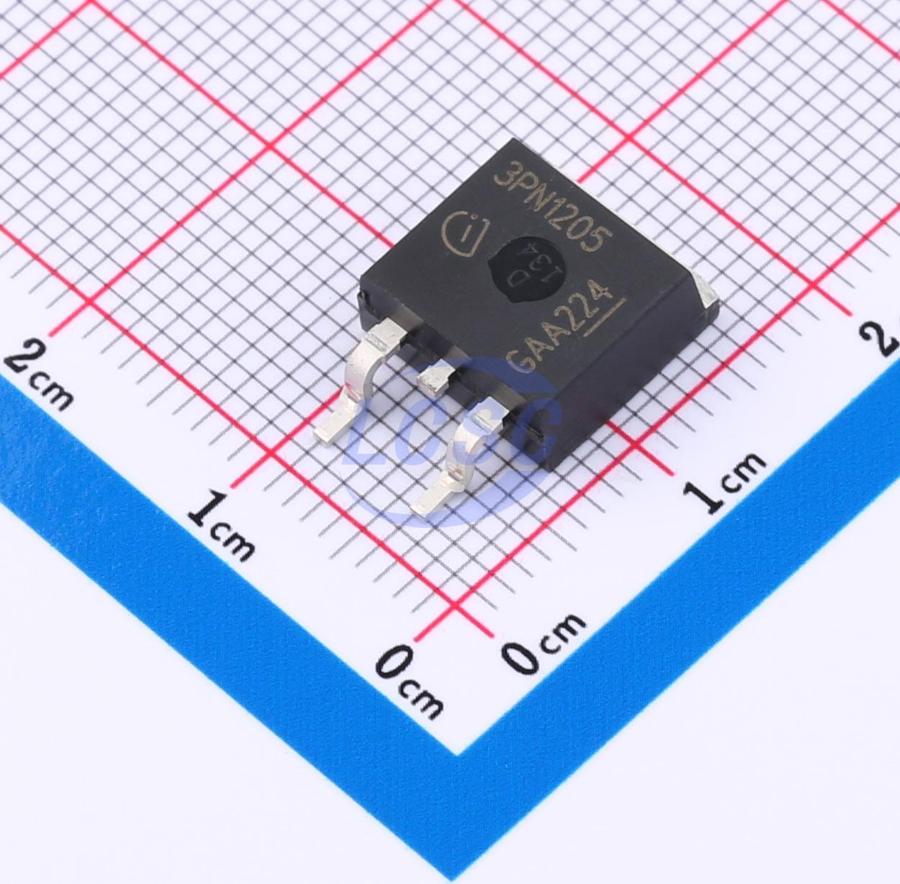

IPB100N12S3-05
N-Channel 120V 300W Surface Mount TO-263-3
TO-263-3ROHS3 CompliantSold out at source
MOSFET N-CH 120V TO-263-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPB100N12S3-05
- Store part #
- C536534
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C536534
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹868.52 | ₹868.52 |
1 × ₹868.52
₹868.52
excl. GST
₹1,024.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB100N12S3-05
₹868.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.52nF
- Ciss-Input Capacitance
- 8.9nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 120V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 220pF
- RDS(on)
- 4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 139nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.97 g
Overview
Key features
- OptiMOS - power MOSFET for automotive applications
- N-channel - Enhancement mode
- Automotive AEC Q101 qualified
- MSL1 up to 260℃ peak reflow
- 175℃ operating temperature
- Green product (RoHS compliant)
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP015N03BGHTD#C22385370Siliup · TO-263-3L | Siliup | TO-263-3L | 106 | ₹242.55 · 106 in stock | View |
 | IPB038N15NM6ATMA1#C42671640Infineon · TO-263-3 | Infineon | TO-263-3 | 13 | ₹920.97 · 13 in stock | View |
 | IPB048N15N5#C536509Infineon · TO-263-3 | Infineon | TO-263-3 | 547 | ₹442.36 · 547 in stock | View |
 | SP020N09GHTD#C22466814Siliup · TO-263-3L | Siliup | TO-263-3L | 171 | ₹211.01 · 171 in stock | View |
 | IPB068N20NM6ATMA1#C22443510Infineon · TO-263-3 | Infineon | TO-263-3 | 32 | ₹1,185.36 · 32 in stock | View |
