InfineonDatasheet (PDF)

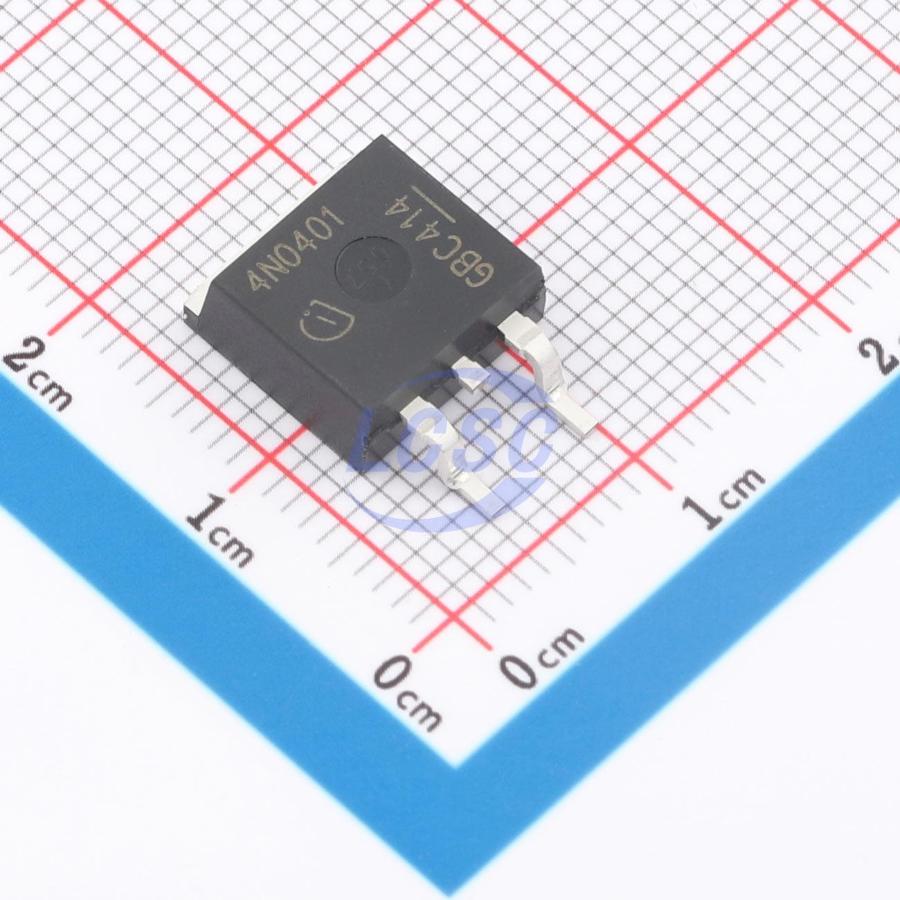

IPB120N04S4-01
188W 40V 120A 1.35mΩ@10V 1 N-channel N-Channel TO-263-3 Single FETs, MOSFETs RoHS
TO-263-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPB120N04S4-01
- Store part #
- C536542
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C536542
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹685.01 | ₹685.01 |
| 10+ | ₹672.97 | ₹6,729.70 |
| 30+ | ₹665.02 | ₹19,950.60 |
| 100+ | ₹656.86 | ₹65,686.00 |
1 × ₹685.01
₹685.01
excl. GST
₹808.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB120N04S4-01
₹685.01 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.45nF
- Ciss-Input Capacitance
- 10.77nF
- Pd - Power Dissipation
- 188W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 1.35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 135nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.838 g
Overview
Key features
- N-Channel - Enhancement Mode
- AEC Qualified
- MSL 1, 260°C Peak Reflow Temperature
- Operating Temperature up to 175°C
- Green Product (RoHS Compliant)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP85N02AGHTD#C22466789Siliup · TO-263-3L | Siliup | TO-263-3L | 102 | ₹90.72 · 102 in stock | View |
| IPB120N08S4-04#C536550Infineon · TO-263-3 | Infineon | TO-263-3 | 5 | ₹667.39 · 5 in stock | View | |
 | CSD19536KTT#C2687963TI · TO-263-3 | TI | TO-263-3 | 445 | ₹593.99 · 445 in stock | View |
| CSD19536KTTT#C2860358TI · TO-263-3 | TI | TO-263-3 | On request | ₹1,005.51 · 0 in stock | View | |
 | SP015N03BGHTD#C22385370Siliup · TO-263-3L | Siliup | TO-263-3L | 106 | ₹242.55 · 106 in stock | View |
