InfineonDatasheet (PDF)

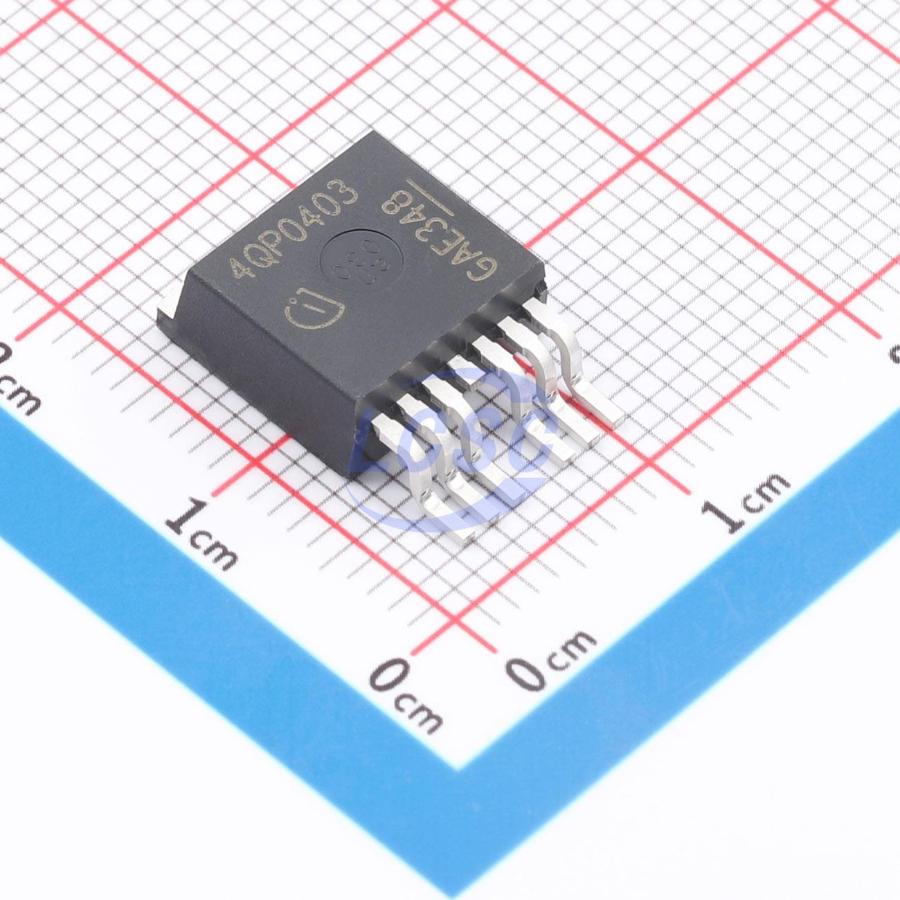

IPB180P04P4-03
150W 40V 180A 2.8mΩ@10V 1 P-Channel P-Channel TO-263-7 Single FETs, MOSFETs RoHS
TO-263-7ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPB180P04P4-03
- Store part #
- C536577
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C536577
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹441.49 | ₹441.49 |
| 10+ | ₹434.83 | ₹4,348.30 |
| 30+ | ₹430.31 | ₹12,909.30 |
| 100+ | ₹425.58 | ₹42,558.00 |
1 × ₹441.49
₹441.49
excl. GST
₹520.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB180P04P4-03
₹441.49 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 4.07nF
- Ciss-Input Capacitance
- 17.64nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 180A
- Reverse Transfer Capacitance (Crss)
- 220pF
- RDS(on)
- 2.8mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 250nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Key features
- P-Channel - Normal Level - Enhancement Mode
- AEC Qualified
- MSL 1, 260°C Peak Reflow Temperature
- 175°C Operating Temperature
- Green Package (RoHS Compliant)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMB180P04G-7#C51793145Cmos · TO-263-7 | Cmos | TO-263-7 | 170 | ₹147.38 · 170 in stock | View |
 | IPB180P04P4L-02#C536578Infineon · TO-263-7 | Infineon | TO-263-7 | 1,211 | ₹390.67 · 1,211 in stock | View |
 | IPB180P04P403ATMA2#C21547651Tokmas · TO-263-7L | Tokmas | TO-263-7L | 93 | ₹217.81 · 93 in stock | View |
 | IPB180P04P4L-02(TOKMAS)#C21547650Tokmas · TO-263-7L | Tokmas | TO-263-7L | On request | ₹150.17 · 0 in stock | View |
