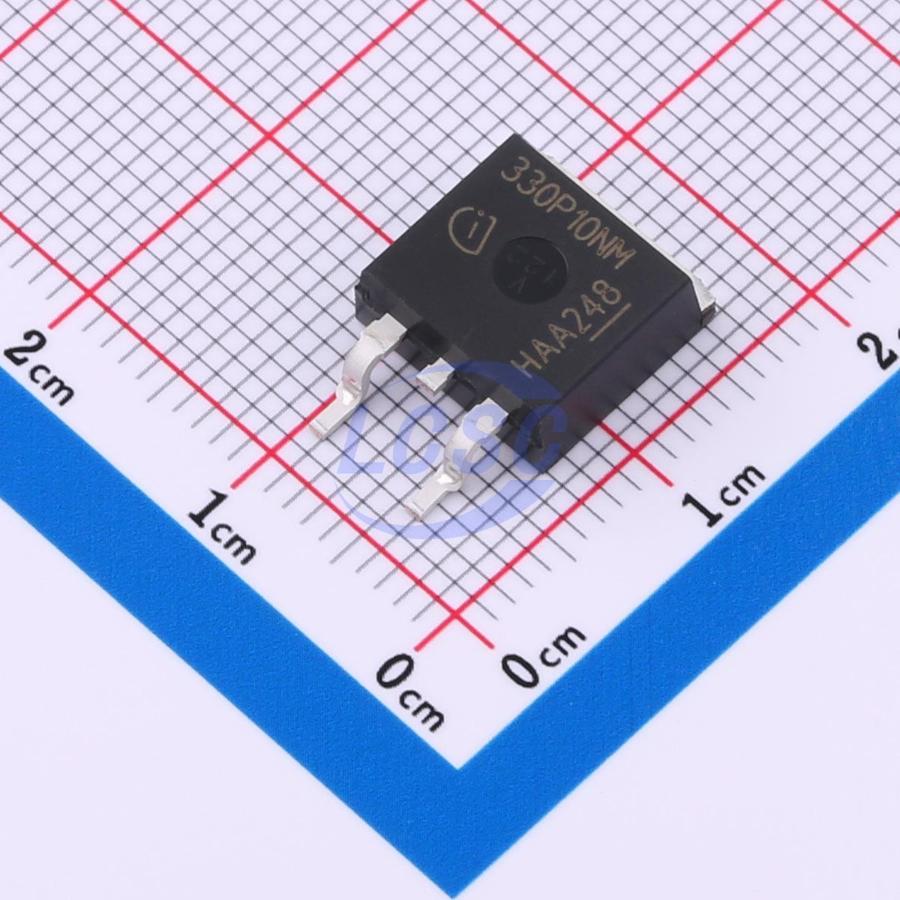

IPB330P10NMATMA1
P-Channel 100V 62A 300W Surface Mount TO-263-3
TO-263-3ROHS3 CompliantActive
MOSFET P-CH 100V 62A TO-263-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPB330P10NMATMA1
- Store part #
- C3279158
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1 in stock
#C3279158
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹244.07 | ₹244.07 |
| 10+ | ₹237.98 | ₹2,379.80 |
| 30+ | ₹234.07 | ₹7,022.10 |
| 100+ | ₹229.92 | ₹22,992.00 |
1 × ₹244.07
₹244.07
excl. GST
₹288.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB330P10NMATMA1
₹244.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 750pF
- Current - Continuous Drain(Id)
- 62A
- Ciss-Input Capacitance
- 11nF
- Pd - Power Dissipation
- 300W
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 33mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 236nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.5 g
Overview
Key features
- P-channel 100% avalanche tested
- Normal level
- Enhancement mode
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB320P10LMATMA1#C3289219Infineon · TO-263-3 | Infineon | TO-263-3 | 27 | ₹919.92 · 27 in stock | View |
 | LWS1H25H5#C53426723Lewa Micro · TO-263 | Lewa Micro | TO-263 | 634 | ₹169.99 · 634 in stock | View |
 | HSH80P10#C7543772HUASHUO · TO-263 | HUASHUO | TO-263 | 705 | ₹159.46 · 705 in stock | View |
 | IXTA76P10T#C7430186Littelfuse/IXYS · TO-263AA-3 | Littelfuse/IXYS | TO-263AA-3 | On request | ₹1,594.63 · 0 in stock | View |
