InfineonDatasheet (PDF)

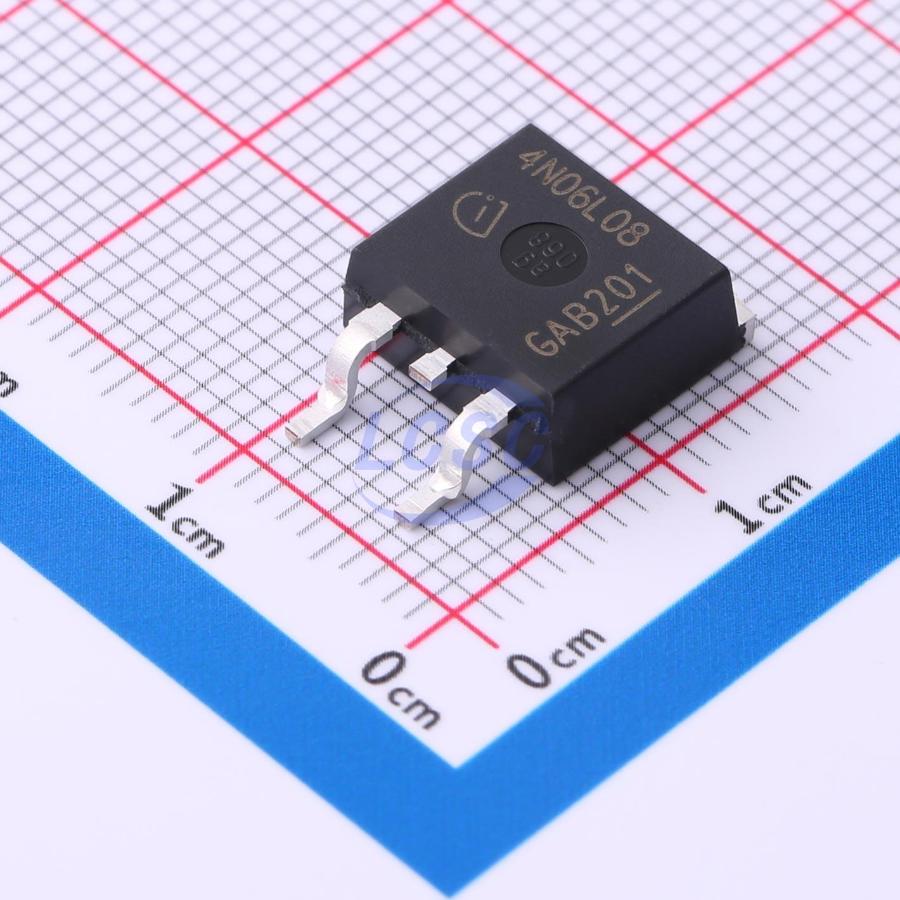

IPB45N06S4L08
N-Channel 60V 45A 71W Surface Mount TO-263-3
TO-263-3ROHS3 CompliantActive
MOSFET N-CH 60V 45A TO-263-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPB45N06S4L08
- Store part #
- C3276870
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C3276870
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹367.95 | ₹367.95 |
| 10+ | ₹350.69 | ₹3,506.90 |
| 30+ | ₹340.42 | ₹10,212.60 |
| 100+ | ₹330.15 | ₹33,015.00 |
| 500+ | ₹325.22 | ₹1,62,610.00 |
| 1,000+ | ₹323.17 | ₹3,23,170.00 |
1 × ₹367.95
₹367.95
excl. GST
₹434.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB45N06S4L08
₹367.95 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.09nF
- Ciss-Input Capacitance
- 4.78nF
- Pd - Power Dissipation
- 71W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 45A
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 7.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 64nC
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Applications
- Standard applications: computers, office equipment, communications equipment, test and measurement equipment, audio/visual equipment, home electronics and appliances, machine tools, personal electronic devices, and industrial robots
- High-quality applications: transportation equipment (automobiles, trains, ships, etc.), traffic control systems, disaster prevention systems, anti-theft systems, safety equipment, and medical equipment not specifically intended for life support
Key features
- N-channel - Enhancement mode
- AEC Q101 qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green Product (RoHS compliant)
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB80N06S4L07ATMA2#C3289281Infineon · TO-263-3 | Infineon | TO-263-3 | 3 | ₹954.54 · 3 in stock | View |
 | CSD18542KTT#C2867559TI · TO-263-3 | TI | TO-263-3 | 217 | ₹269.57 · 217 in stock | View |
| CSD18542KTTT#C2877343TI · TO-263-3 | TI | TO-263-3 | 230 | ₹344.75 · 230 in stock | View | |
| IPB70N10S3L-12#C536648Infineon · TO-263-3 | Infineon | TO-263-3 | 15 | ₹478.24 · 15 in stock | View | |
 | IPB026N06N#C536490Infineon · TO-263-3 | Infineon | TO-263-3 | 217 | ₹131.49 · 217 in stock | View |
