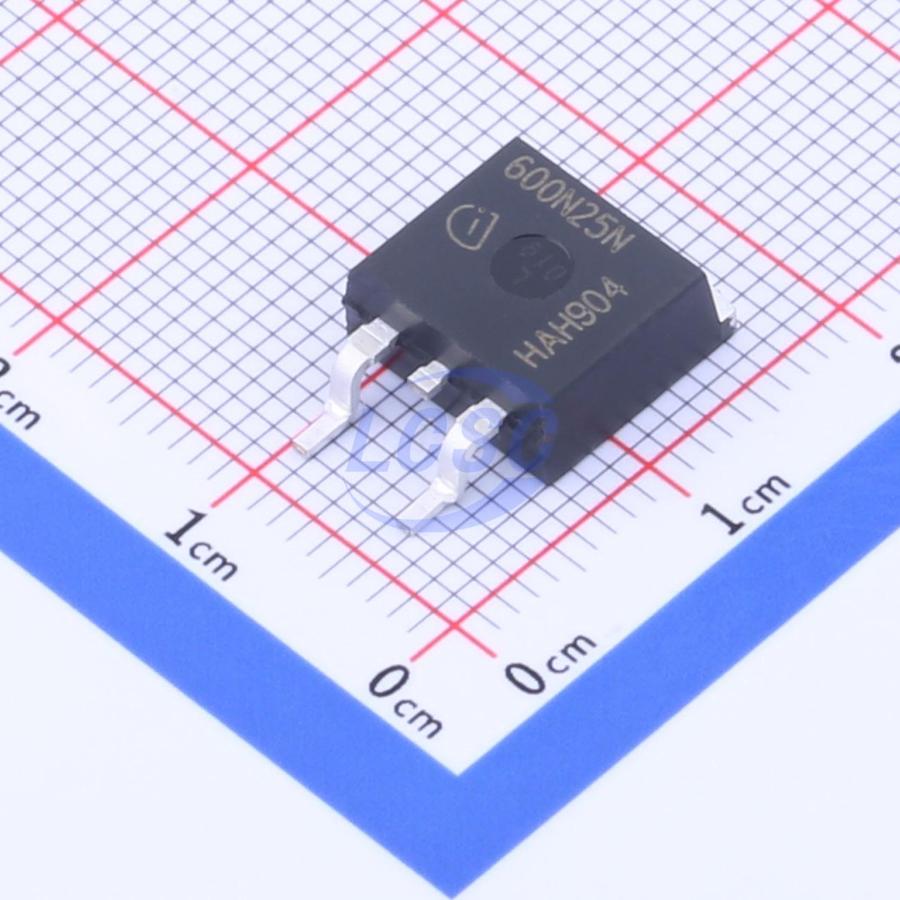

IPB600N25N3 G
136W 250V 25A 60mΩ@10V 1 N-channel N-Channel TO-263-3 Single FETs, MOSFETs RoHS
TO-263-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPB600N25N3 G
- Store part #
- C536594
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
84 in stock
#C536594
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹428.65 | ₹428.65 |
| 10+ | ₹366.64 | ₹3,666.40 |
| 30+ | ₹327.83 | ₹9,834.90 |
| 100+ | ₹262.79 | ₹26,279.00 |
| 500+ | ₹244.79 | ₹1,22,395.00 |
| 1,000+ | ₹236.99 | ₹2,36,990.00 |
1 × ₹428.65
₹428.65
excl. GST
₹505.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB600N25N3 G
₹428.65 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 112pF
- Ciss-Input Capacitance
- 1.77nF
- Pd - Power Dissipation
- 136W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 25A
- Reverse Transfer Capacitance (Crss)
- 3pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.64 g
Overview
Key features
- N-channel, normally-on
- Excellent gate charge × RDS(on) product (figure of merit)
- Ultra-low on-resistance RDS(on)
- Operating temperature up to 175°C
- Lead-free pin plating; RoHS compliant
- JEDEC qualified for target applications
- Halogen-free per IEC61249-2-21
- Suitable for high-frequency switching and synchronous rectification
