InfineonDatasheet (PDF)

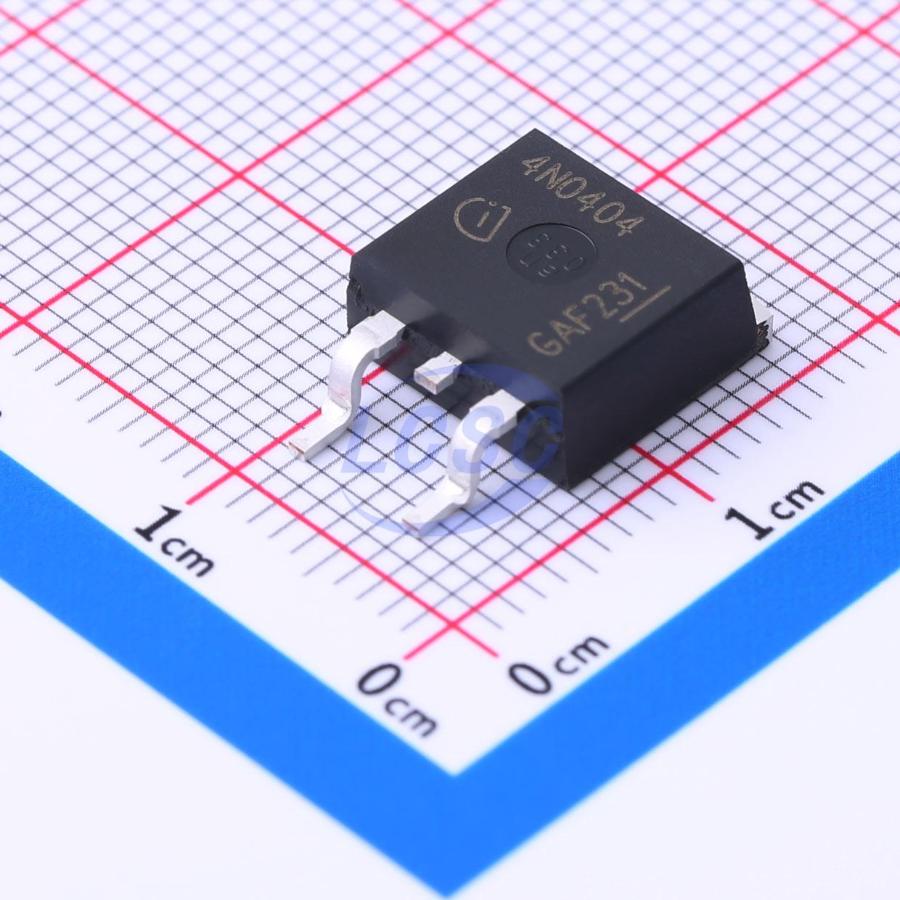

IPB80N04S404ATMA1
N-Channel 40V 80A 71W Surface Mount TO-263-3
TO-263-3ROHS3 CompliantActive
MOSFET N-CH 40V 80A TO-263-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPB80N04S404ATMA1
- Store part #
- C3279202
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C3279202
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹273.46 | ₹273.46 |
| 10+ | ₹267.43 | ₹2,674.30 |
| 30+ | ₹263.55 | ₹7,906.50 |
| 100+ | ₹259.69 | ₹25,969.00 |
1 × ₹273.46
₹273.46
excl. GST
₹322.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB80N04S404ATMA1
₹273.46 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 840pF
- Ciss-Input Capacitance
- 3.44nF
- Pd - Power Dissipation
- 71W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 46pF
- RDS(on)
- 4.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Key features
- N-channel - Enhancement mode
- AEC qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green Product (RoHS compliant)
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB80N04S4L-04#C536662Infineon · TO-263-3 | Infineon | TO-263-3 | 5 | ₹212.79 · 5 in stock | View |
| IPB057N15NM6ATMA1#C44182144Infineon · TO-263-3 | Infineon | TO-263-3 | 50 | ₹256.03 · 50 in stock | View | |
 | JMTE035N06D#C2890439Jiangsu JieJie Microelectronics · TO-263-3 | Jiangsu JieJie Microelectronics | TO-263-3 | 720 | ₹60.42 · 720 in stock | View |
 | IPB042N10N3G#C69300Infineon · TO-263-3 | Infineon | TO-263-3 | 12,806 | ₹97.51 · 12,806 in stock | View |
 | IPB80N04S2H4ATMA2#C3277055Infineon · TO-263-3 | Infineon | TO-263-3 | 3 | ₹705.50 · 3 in stock | View |
