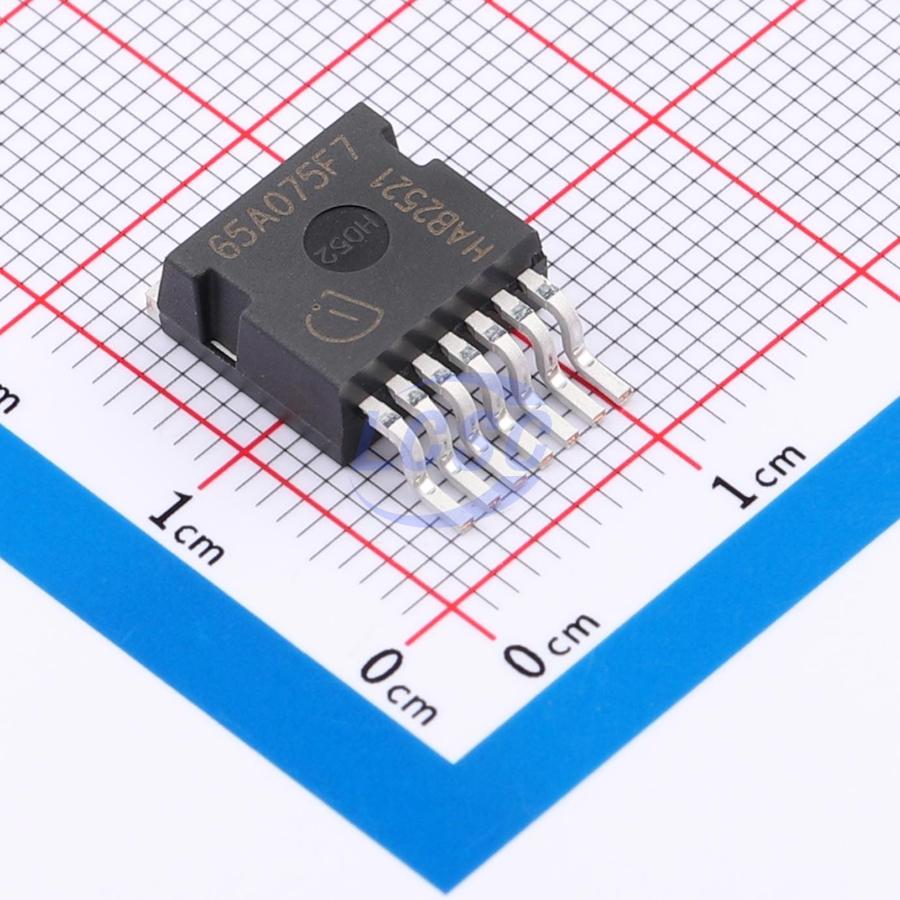

IPBE65R075CFD7AATMA1
650V 32A 171W 75mΩ@10V 1 N-channel TO-263-7-3-10 Single FETs, MOSFETs RoHS
TO-263-7-3-10ROHS3 CompliantActive
650V, Current:20A, Voltage:650V
- Manufacturer
- Infineon
- Manufacturer part #
- IPBE65R075CFD7AATMA1
- Store part #
- C3279276
- Package / case
- TO-263-7-3-10
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C3279276
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,232.81 | ₹1,232.81 |
| 10+ | ₹1,052.86 | ₹10,528.60 |
| 30+ | ₹942.93 | ₹28,287.90 |
| 100+ | ₹851.01 | ₹85,101.00 |
1 × ₹1,232.81
₹1,232.81
excl. GST
₹1,454.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPBE65R075CFD7AATMA1
₹1,232.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 32A
- Ciss-Input Capacitance
- 3.288nF
- Pd - Power Dissipation
- 171W
- RDS(on)
- 75mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 68nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.907 g
Overview
650V CoolMOS CFD7A integrates a fast body diode, suitable for PFC and ZVS phase-shifted full-bridge and LLC resonant switching topologies.
Applications
- Unidirectional and bidirectional DC-DC converters
- On-board battery chargers
Key features
- Latest 650V automotive-grade technology with integrated fast body diode, featuring ultra-low reverse recovery charge Qrr
- Best-in-class figure of merit RDS(on)^*Qg and RDS(on)^*Eoss
- 100% avalanche tested
- Kelvin source pin
- Best-in-class RDS(on) in both SMD and THD packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVBG020N090SC1#C898814onsemi · D2PAK-7 | onsemi | D2PAK-7 | 5 | ₹4,294.66 · 5 in stock | View |
 | BMBF65N050UE1#C52269246Bestirpower · TO-263-7L | Bestirpower | TO-263-7L | 81 | ₹583.67 · 81 in stock | View |
 | SCT4045DW7TL#C5905590ROHM · TO-263-7L | ROHM | TO-263-7L | 6 | ₹1,686.79 · 6 in stock | View |
| SCT3060AW7TL#C3281641ROHM · TO-263-7 | ROHM | TO-263-7 | On request | ₹1,379.99 · 0 in stock | View | |
| P3M06060G7#C6625354PN Junction Semiconductor · D2PAK-7 | PN Junction Semiconductor | D2PAK-7 | On request | ₹3,453.24 · 0 in stock | View | |
