InfineonDatasheet (PDF)

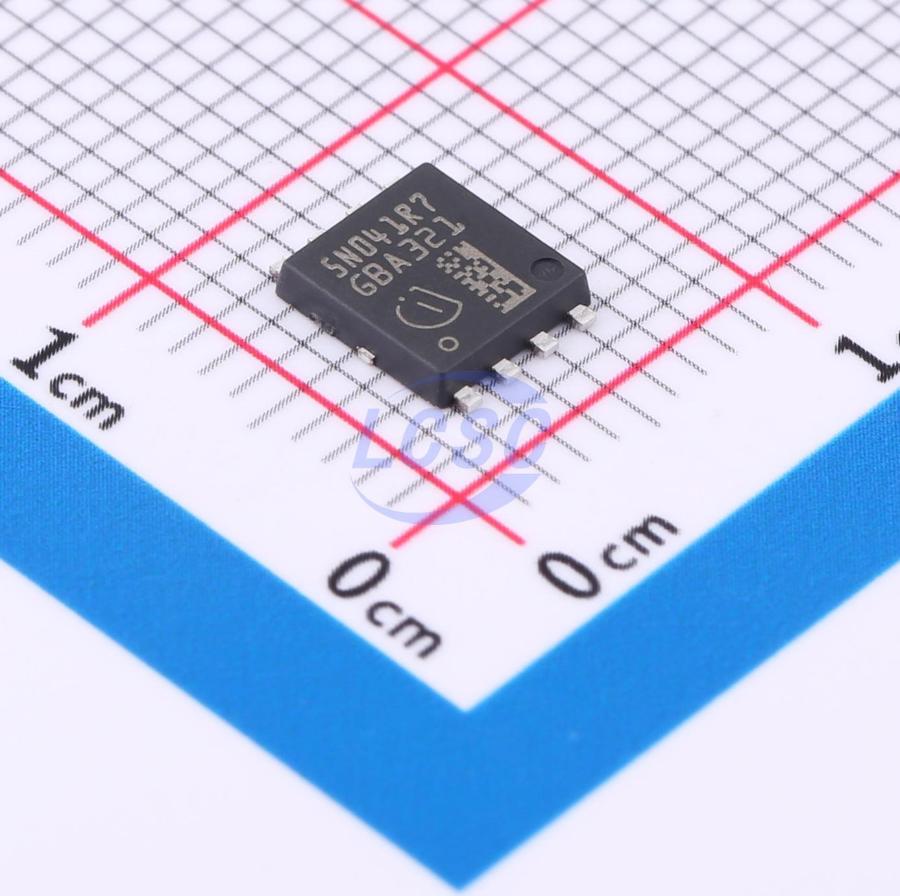

IPC100N04S5-1R7
40V 100A 115W 1.4mΩ@10V 1 N-channel TDSON-8(6.2x5.2) Single FETs, MOSFETs RoHS
TDSON-8(6.2x5.2)ROHS3 CompliantActive
MOSFET N-CH 40V 100A TDSON-8(6.2x5.2)
- Manufacturer
- Infineon
- Manufacturer part #
- IPC100N04S5-1R7
- Store part #
- C536692
- Package / case
- TDSON-8(6.2x5.2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
93 in stock
#C536692
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹247.08 | ₹247.08 |
| 10+ | ₹208.12 | ₹2,081.20 |
| 30+ | ₹183.74 | ₹5,512.20 |
| 100+ | ₹158.71 | ₹15,871.00 |
| 500+ | ₹147.38 | ₹73,690.00 |
| 1,000+ | ₹142.59 | ₹1,42,590.00 |
1 × ₹247.08
₹247.08
excl. GST
₹291.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IPC100N04S5-1R7
₹247.08 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.62nF
- Pd - Power Dissipation
- 115W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 1.4mΩ@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 2.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
Key features
- OptiMOS Power MOSFET for automotive applications
- N-channel - Enhancement mode - Normal level
- AEC Q101 qualified
- MSL1 rated at up to 260°C peak reflow temperature
- Operating temperature up to 175°C
- Green product (RoHS compliant)
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YJG130G04A#C2858574YANGJIE · PDFN-8(5.9x5.2) | YANGJIE | PDFN-8(5.9x5.2) | 3 | ₹129.18 · 3 in stock | View |
 | SL0G150AG#C55318440Slkor · PDFN-8L(5x6) | Slkor | PDFN-8L(5x6) | 4,980 | ₹51.39 · 4,980 in stock | View |
 | HSBA8074A#C5128205HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 1,690 | ₹146.51 · 1,690 in stock | View |
 | HD508N052SG#C52766427R+O · PDFN-8(5x6) | R+O | PDFN-8(5x6) | 618 | ₹82.53 · 618 in stock | View |
 | SP60N01BGHNK#C49257272Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 5,180 | ₹108.33 · 5,180 in stock | View |
