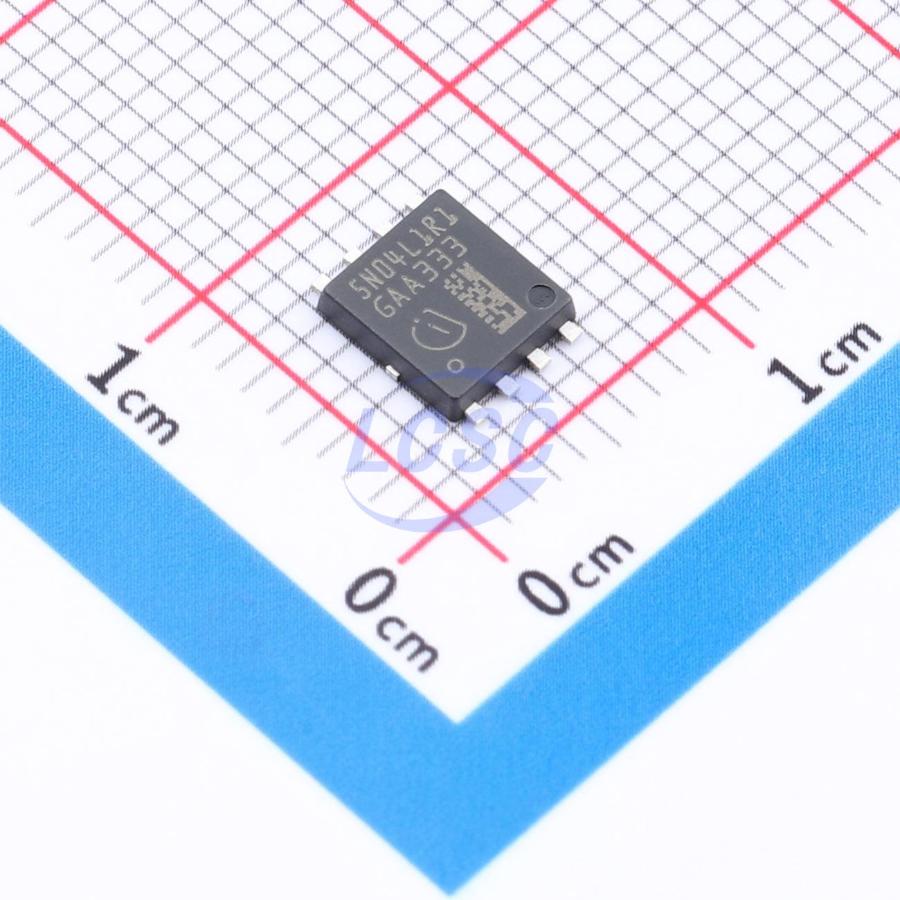

InfineonDatasheet (PDF)
IPC100N04S5L-1R1
150W 40V 100A 1.1mΩ@4.5V 1 N-channel N-Channel TDSON-8-EP(5x6) Single FETs, MOSFETs RoHS
TDSON-8-EP(5x6)ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPC100N04S5L-1R1
- Store part #
- C536695
- Package / case
- TDSON-8-EP(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C536695
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹345.70 | ₹345.70 |
| 10+ | ₹291.06 | ₹2,910.60 |
| 30+ | ₹256.89 | ₹7,706.70 |
| 100+ | ₹222.05 | ₹22,205.00 |
| 500+ | ₹206.16 | ₹1,03,080.00 |
| 1,000+ | ₹199.42 | ₹1,99,420.00 |
1 × ₹345.70
₹345.70
excl. GST
₹407.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IPC100N04S5L-1R1
₹345.70 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.44nF
- Ciss-Input Capacitance
- 8.25nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 1.1mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 140nC@10V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.225 g
Overview
Key features
- OptiMOS power MOSFET for automotive applications
- N-channel - Enhancement mode - Logic level
- AEC Q101 qualified
- MSL1 rated up to 260°C peak reflow temperature
- Operating temperature up to 175°C
- Green product (RoHS compliant)
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IAUC120N04S6L009#C535702Infineon · TDSON-8(6.2x5.2) | Infineon | TDSON-8(6.2x5.2) | 5 | ₹569.59 · 5 in stock | View |
 | WSD40200DN56G#C5185344Winsok Semicon · DFN5X6-8 | Winsok Semicon | DFN5X6-8 | 152 | ₹221.76 · 152 in stock | View |
 | NTMFS5C410NLTT1G#C900304onsemi · SO-8FL | onsemi | SO-8FL | 2 | ₹1,108.66 · 2 in stock | View |
 | SP40N01ABGHNP#C45351229Siliup · PDFN5X6-8L | Siliup | PDFN5X6-8L | 56 | ₹73.02 · 56 in stock | View |
 | XRS225N04F#C53069592XNRUSEMI · PDFN-8L(5x6) | XNRUSEMI | PDFN-8L(5x6) | 4,974 | ₹84.13 · 4,974 in stock | View |
