InfineonDatasheet (PDF)

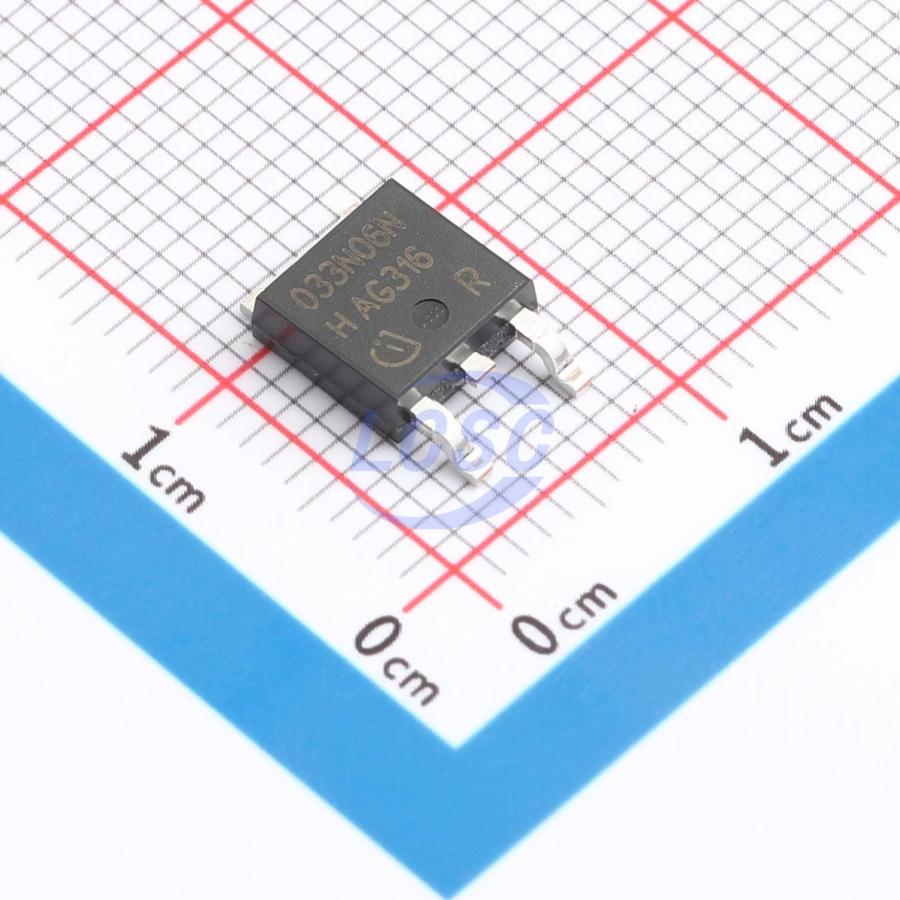

IPD033N06N
60V 90A 107W 3.3mΩ@10V 1 N-channel TO-252-3 Single FETs, MOSFETs RoHS
TO-252-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPD033N06N
- Store part #
- C536710
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C536710
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹436.29 | ₹436.29 |
| 10+ | ₹425.87 | ₹4,258.70 |
| 30+ | ₹418.94 | ₹12,568.20 |
| 100+ | ₹412.21 | ₹41,221.00 |
1 × ₹436.29
₹436.29
excl. GST
₹514.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD033N06N
₹436.29 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 90A
- Ciss-Input Capacitance
- 3.4nF
- Pd - Power Dissipation
- 107W
- Reverse Transfer Capacitance (Crss)
- 56pF
- RDS(on)
- 3.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC
- Gate Threshold Voltage (Vgs(th))
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.437 g
Overview
Key features
- Optimized for synchronous rectification
- 100% avalanche tested
- Excellent thermal resistance performance
- N-channel, normally-on
- JEDEC compliant for target applications
- Lead-free plated leads; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD038N06NF2SATMA1#C20191574Infineon · TO-252 | Infineon | TO-252 | 49 | ₹185.34 · 49 in stock | View |
 | IPD038N06N3GATMA1-JSM#C52948788JSMSEMI · TO-252-2 | JSMSEMI | TO-252-2 | 500 | ₹102.77 · 500 in stock | View |
 | DMTH6004SK3Q-13-JSM#C55112025JSMSEMI · TO-252 | JSMSEMI | TO-252 | 199 | ₹102.68 · 199 in stock | View |
 | IPD034N06N3GATMA1-JSM#C52948799JSMSEMI · TO-252-2 | JSMSEMI | TO-252-2 | 499 | ₹102.77 · 499 in stock | View |
 | JSM035N06DGH#C55106970JSMSEMI · TO-252 | JSMSEMI | TO-252 | 1,928 | ₹82.22 · 1,928 in stock | View |
