HXY MOSFETDatasheet (PDF)

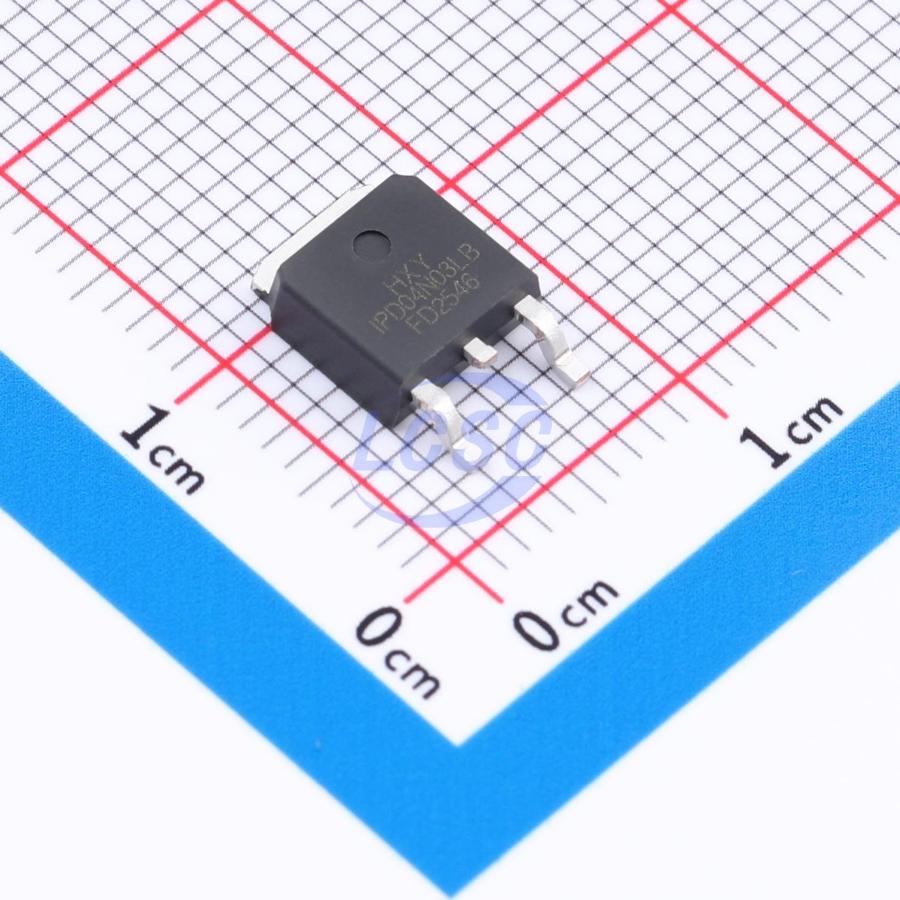

IPD04N03LBG-HXY
53W 30V 100A 3.8mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IPD04N03LBG-HXY
- Store part #
- C53263104
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C53263104
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹207.26 | ₹207.26 |
| 10+ | ₹174.61 | ₹1,746.10 |
| 30+ | ₹156.58 | ₹4,697.40 |
| 100+ | ₹136.16 | ₹13,616.00 |
| 500+ | ₹127.15 | ₹63,575.00 |
| 1,000+ | ₹123.07 | ₹1,23,070.00 |
1 × ₹207.26
₹207.26
excl. GST
₹244.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD04N03LBG-HXY
₹207.26 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 267pF
- Ciss-Input Capacitance
- 2.295nF
- Pd - Power Dissipation
- 53W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 3.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.412 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM4146T9RL-HXY#C22366746HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹23.10 · 10 in stock | View |
 | IPD047N03LF2SATMA1-HXY#C53262985HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 56 | ₹69.91 · 56 in stock | View |
 | IPD70N03S4L04ATMA1-HXY#C53263014HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹95.80 · 48 in stock | View |
 | STD100N03LT4-HXY#C53263247HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 45 | ₹54.56 · 45 in stock | View |
 | STD100N3LF3-HXY#C53263269HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹57.14 · 48 in stock | View |
