InfineonDatasheet (PDF)

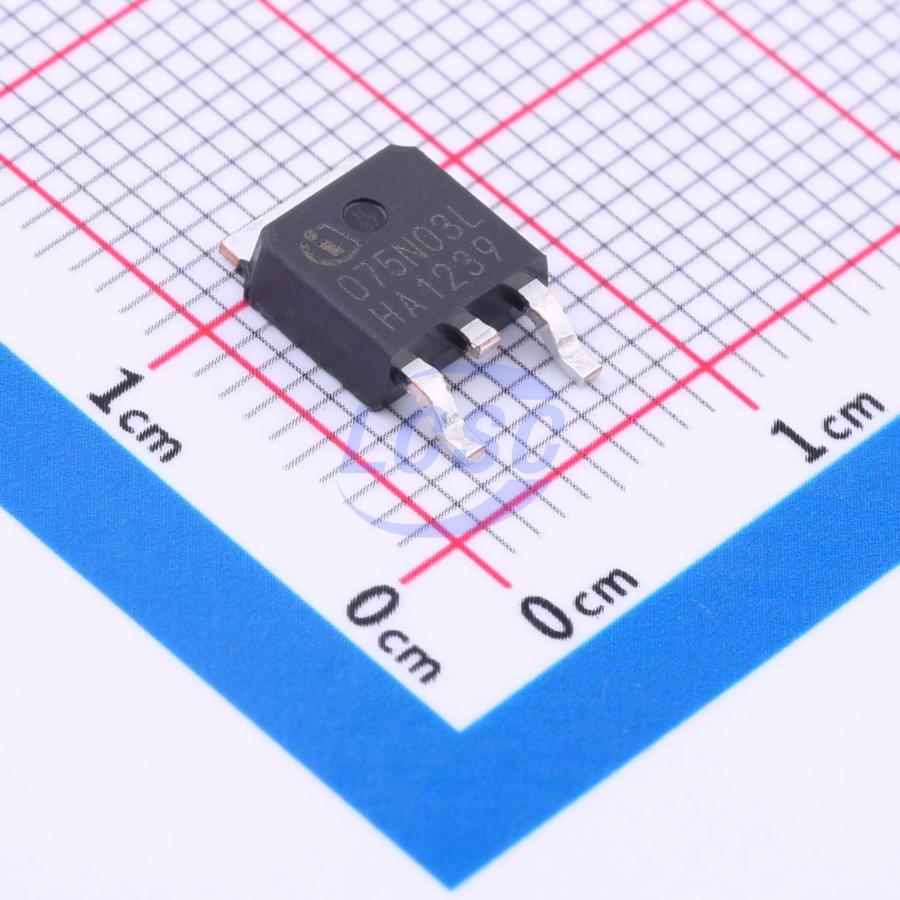

IPD075N03LG
47W 30V 50A 7.5mΩ@10V 1 N-channel N-Channel TO-252-3 Single FETs, MOSFETs RoHS
TO-252-3ROHS3 CompliantActive
MOSFET N-CH 30V 50A TO-252-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPD075N03LG
- Store part #
- C3289140
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54 in stock
#C3289140
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.05 | ₹57.05 |
| 10+ | ₹55.51 | ₹555.10 |
| 30+ | ₹54.65 | ₹1,639.50 |
| 100+ | ₹53.78 | ₹5,378.00 |
1 × ₹57.05
₹57.05
excl. GST
₹67.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPD075N03LG
₹57.05 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 770pF
- Ciss-Input Capacitance
- 1.9nF
- Pd - Power Dissipation
- 47W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 44pF
- RDS(on)
- 7.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.37 g
Overview
CoolMOS is a revolutionary technology for high-voltage power MOSFETs, designed based on the superjunction (SJ) principle. The latest CoolMOS CFD7 is the successor to the CoolMOS CFD2 series — a platform specifically optimized for soft-switching applications such as phase-shifted full-bridge (ZVS) and LLC. With reduced gate charge (Qg), best-in-class reverse recovery charge (Qrr), and improved turn-off characteristics, CoolMOS CFD7 delivers maximum efficiency in resonant topologies. As part of Infineon's fast body diode portfolio, this new product family combines all the advantages of fast switching with outstanding hard-commutation robustness, while remaining straightforward to implement during design-in — without compromise. CoolMOS CFD7 technology meets the highest standards of efficiency and reliability, and supports high power density solutions. In summary, CoolMOS CFD7 makes resonant switching topologies more efficient, more reliable, lighter, and cooler.
Applications
- Suitable for soft-switching topologies
- Optimized for phase-shifted full-bridge (ZVS) and LLC applications — servers, telecom, EV charging
Key features
- Fast-switching MOSFET for SMPS
- Technology optimized for DC/DC converters
- JEDEC-compliant for target applications
- N-channel, logic level
- Excellent gate charge × RDS(on) figure of merit (FOM)
- Ultra-low RDS(on)
- Avalanche-rated
- Lead-free plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSU3068#C54842109HUASHUO · TO-252 | HUASHUO | TO-252 | 100 | ₹28.14 · 100 in stock | View |
 | DOD65N04#C45385097DOINGTER · TO-252 | DOINGTER | TO-252 | 2,350 | ₹17.74 · 2,350 in stock | View |
 | MOT50N04D#C52711312MOT · TO-252 | MOT | TO-252 | 50 | ₹34.94 · 50 in stock | View |
 | PTD4080B#C2843744PUOLOP · TO-252 | PUOLOP | TO-252 | 15 | ₹27.04 · 15 in stock | View |
 | YFW50N06AD#C3039970YFW · TO-252 | YFW | TO-252 | 2,450 | ₹29.74 · 2,450 in stock | View |
